XM-D542-0404D
XR-D542-0404D ROHS

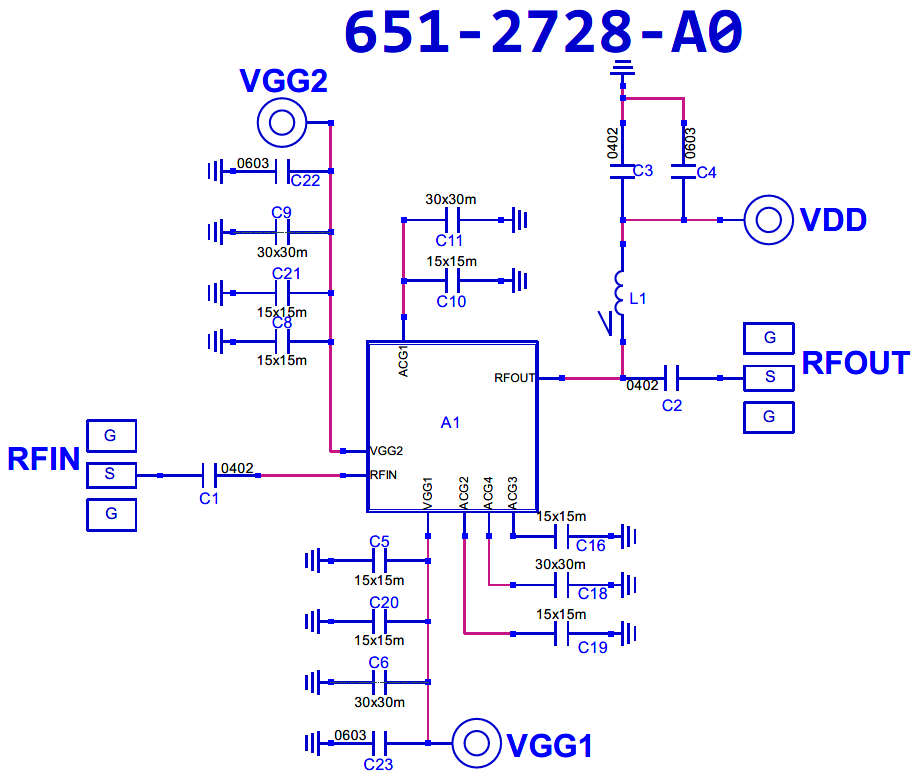

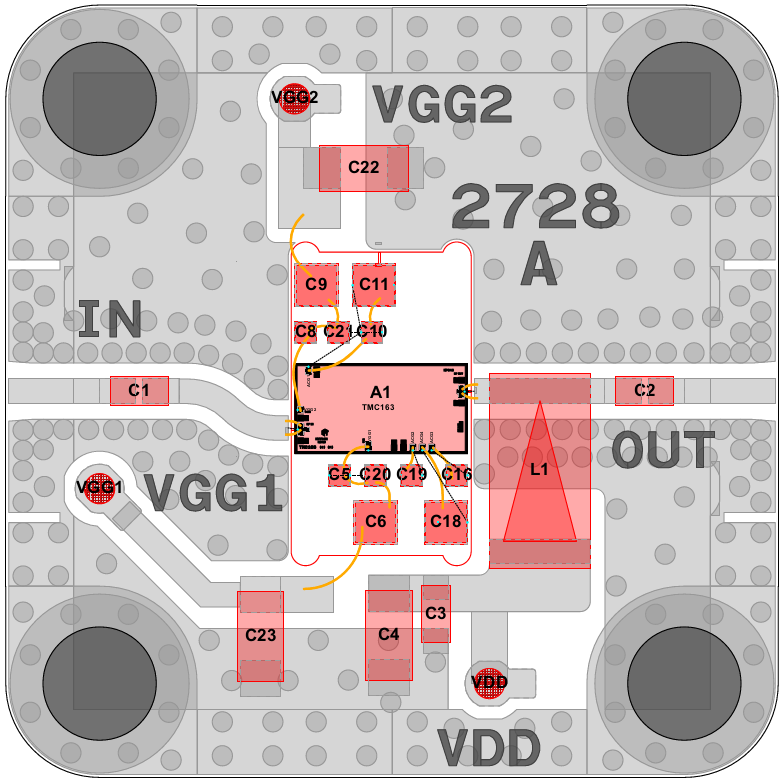

Amplifier, TMC164 [PCB: 2728]
Recommended Bias Controller: XM-D541-0404D-SP

Product Page

 N/A mmTron

Spec Sheet

 N/A TMC164

Low Freq

 N/A 0 MHz

High Freq

 N/A 26500 MHz

Gain

 N/A 16 dB

NF

 N/A 3.5 dB

Voltage

 N/A 10 V

Current

 N/A 250 mA

N/A

Bias Instruction

 N/A

Notes: Nominally 10V, 250mA (works down to 8V)
Vgg2 set internally-N/C

Power-up Sequence
1. Apply VGG1 = -2V
2. Apply VDD = +10V
3. Adjust VGG1 more positive until IDQ reaches 250mA
Note: Do not exceed 0V.
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG1 to -2V
3. Adjust VDD to 0V
4. Adjust VG1 to 0V

Part Number

 N/A XR-D542-0404D
