XM-D537-0404D
XR-D537-0404D ROHS

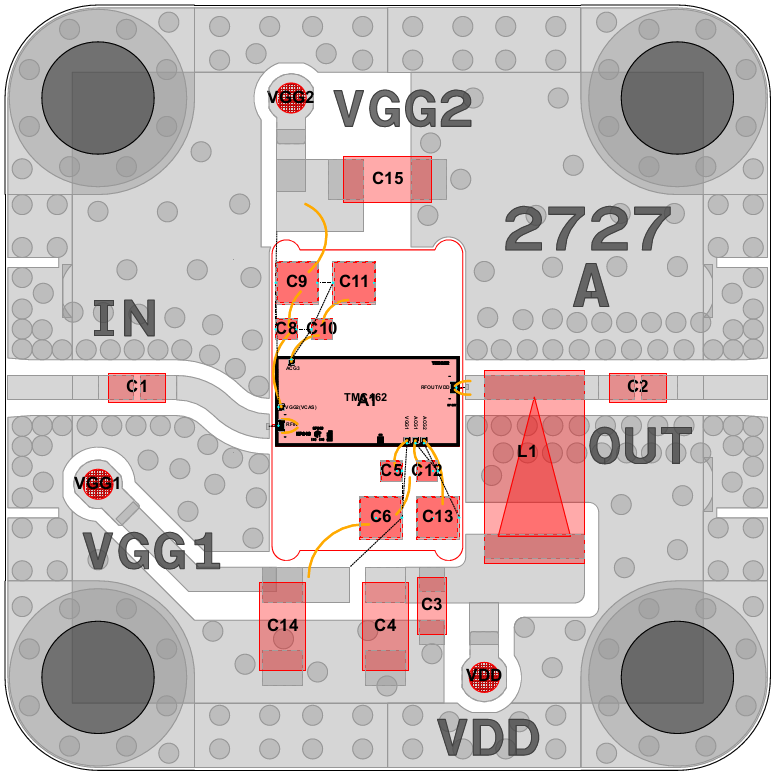

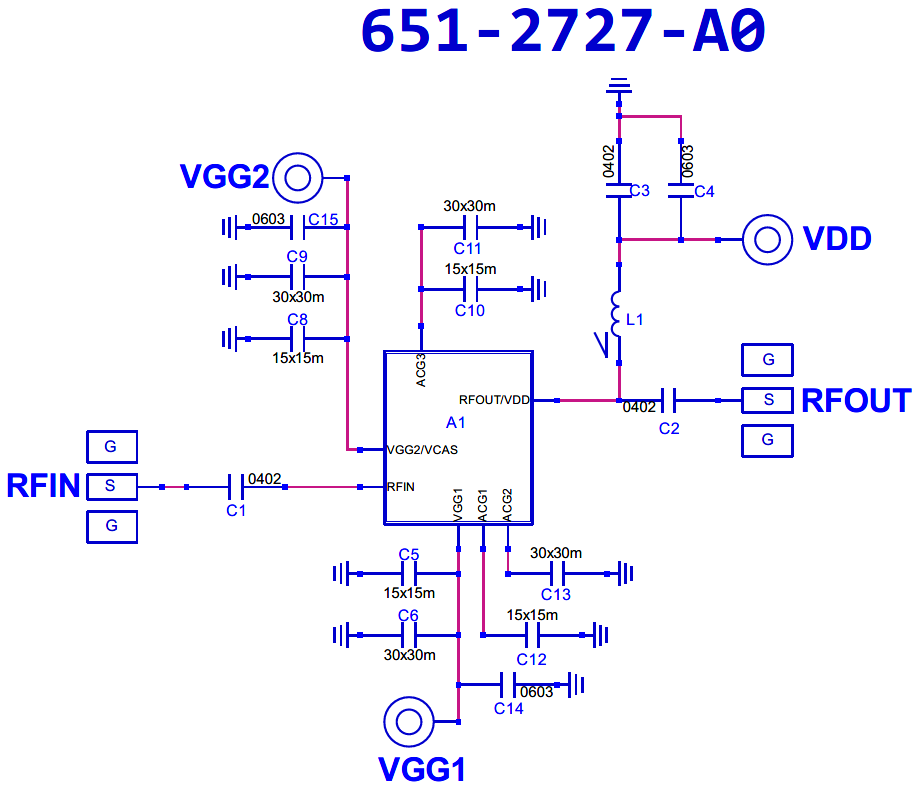

Amplifier, TMC162 [PCB: 2727]
Recommended Bias Controller: XM-D538-0404D-SP

Product Page

 N/A mmTron

Spec Sheet

 N/A TMC162

Low Freq

 N/A 0 MHz

High Freq

 N/A 20000 MHz

Gain

 N/A 19 dB

NF

 N/A 2.5 dB

Voltage

 N/A 8 V

Current

 N/A 160 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG1 = -1V
2. Apply VD = +8V
3. Adjust VGG1 more positive until IDQ reaches 160mA
Note: -0.6V typ. Do not exceed 0V.
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG1 to -1V
3. Adjust VD to 0V
4. Adjust VGG1 to 0V

Notes: Vgg2 set internally-N/C
Works down to +5V

Part Number

 N/A XR-D537-0404D
