XM-D537-0404C-01
XR-D537-0404C-01 ROHS

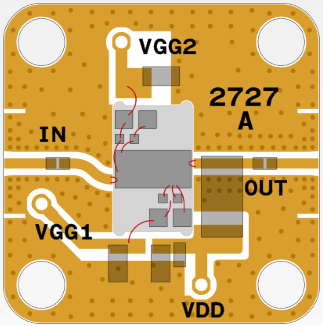

Amplifier, TMC162 [PCB: 2727]
Connectorized Housing
Included Bias Controller: XM-D538-0404D

Product Page

 N/A mmTron

Spec Sheet

 N/A TMC162

Low Freq

 N/A 0 MHz

High Freq

 N/A 20000 MHz

Gain

 N/A 19 dB

NF

 N/A 2.5 dB

Voltage

 N/A 8 V

Current

 N/A 160 mA

Connector Series

 N/A SuperSMA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply +VIN = [+5.35V to +8.35V]
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust +VIN to 0V

Part Number

 N/A XR-D537-0404C-01
