XM-D517-0404D
XR-D517-0404D ROHS

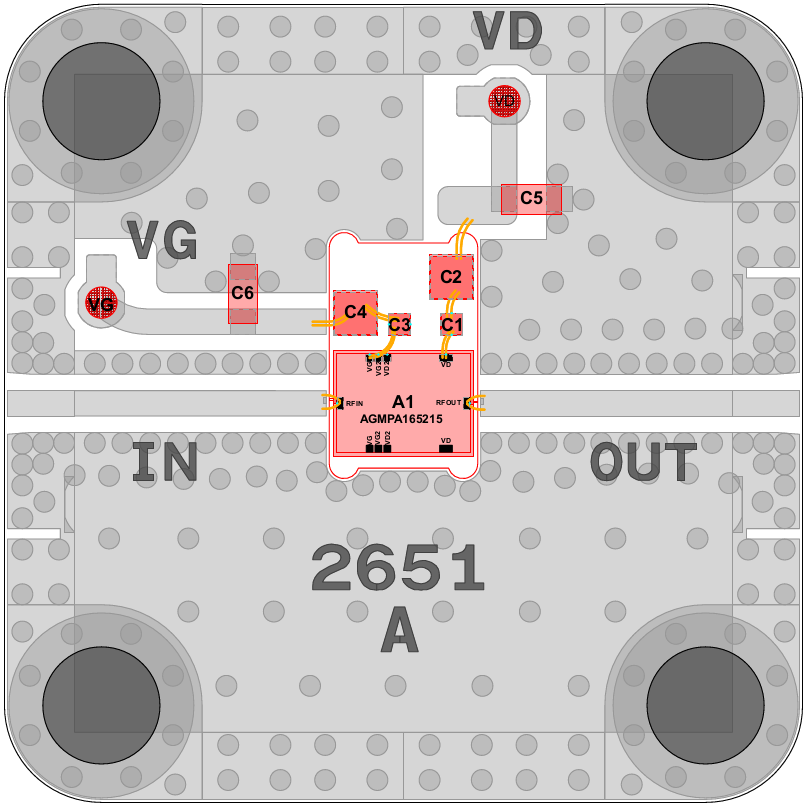

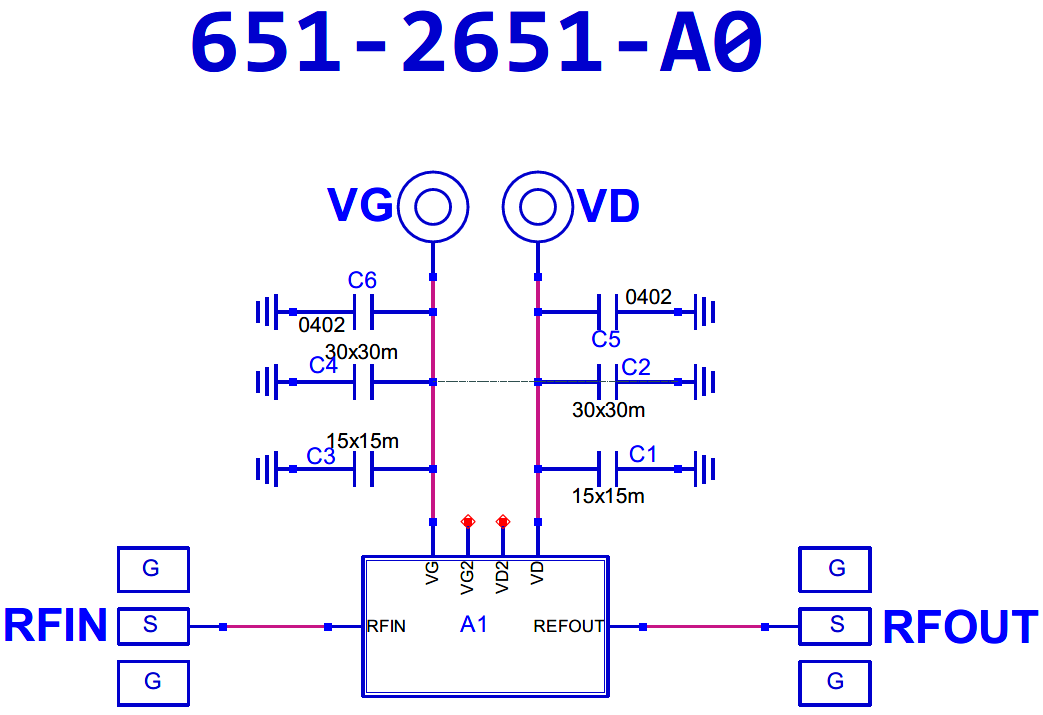

Amplifier, AGMPA165215 [PCB: 2651]

Product Page

 N/A AmpliTech

Spec Sheet

 N/A AGMPA165215

Low Freq

 N/A 16500 MHz

High Freq

 N/A 21500 MHz

Gain

 N/A 20 dB

Voltage

 N/A 28 V

Current

 N/A 100 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -3V
2. Apply VD = +28V
3. Adjust VG more positive until IDQ reaches 100mA
Note: -0.65V typ. Do not exceed 0V.
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG to -3V
3. Adjust VD to 0V
4. Adjust VG to 0V

Part Number

 N/A XR-D517-0404D
