XM-D4R6-0604D
XR-D4R6-0604D ROHS

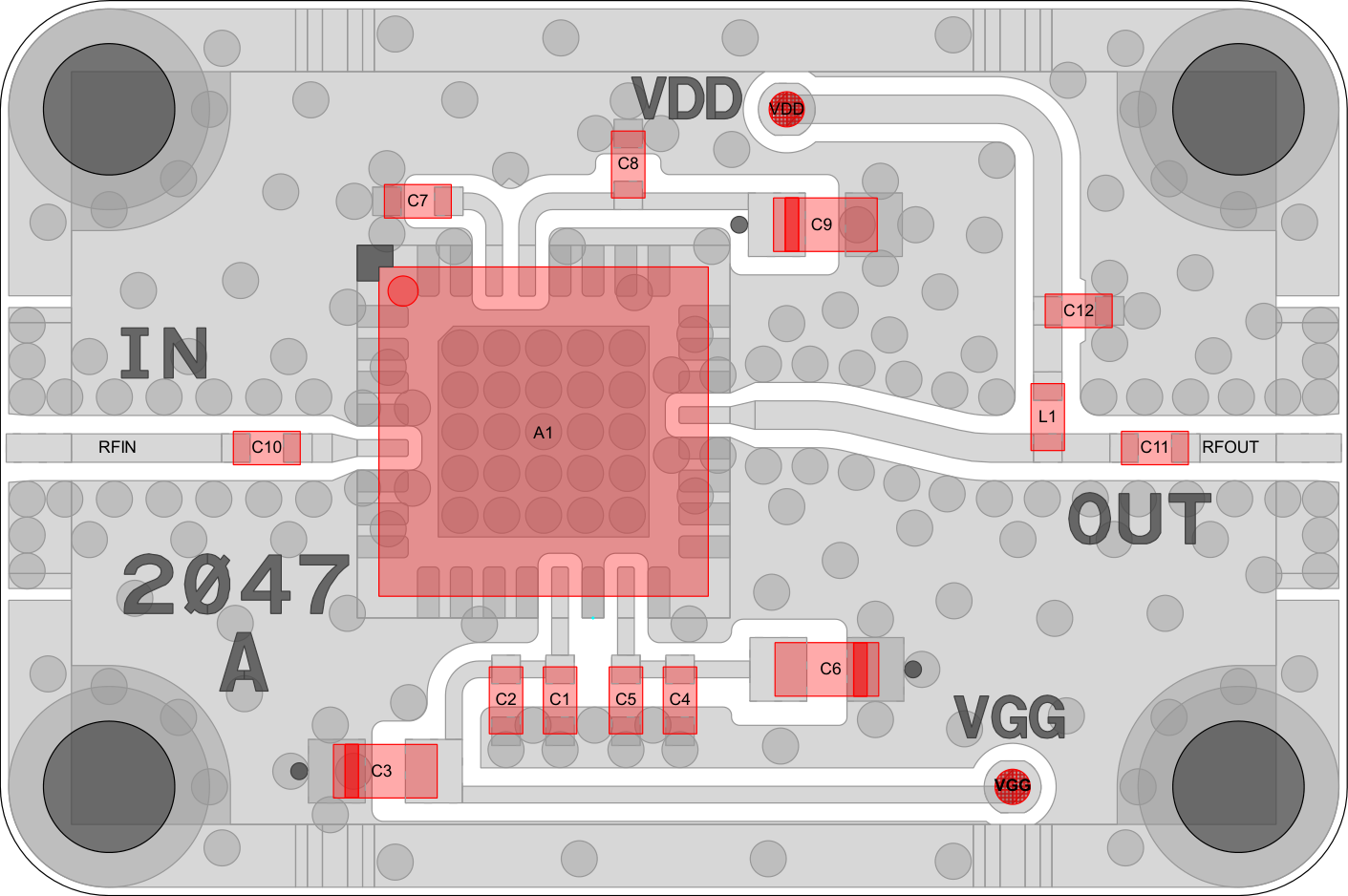

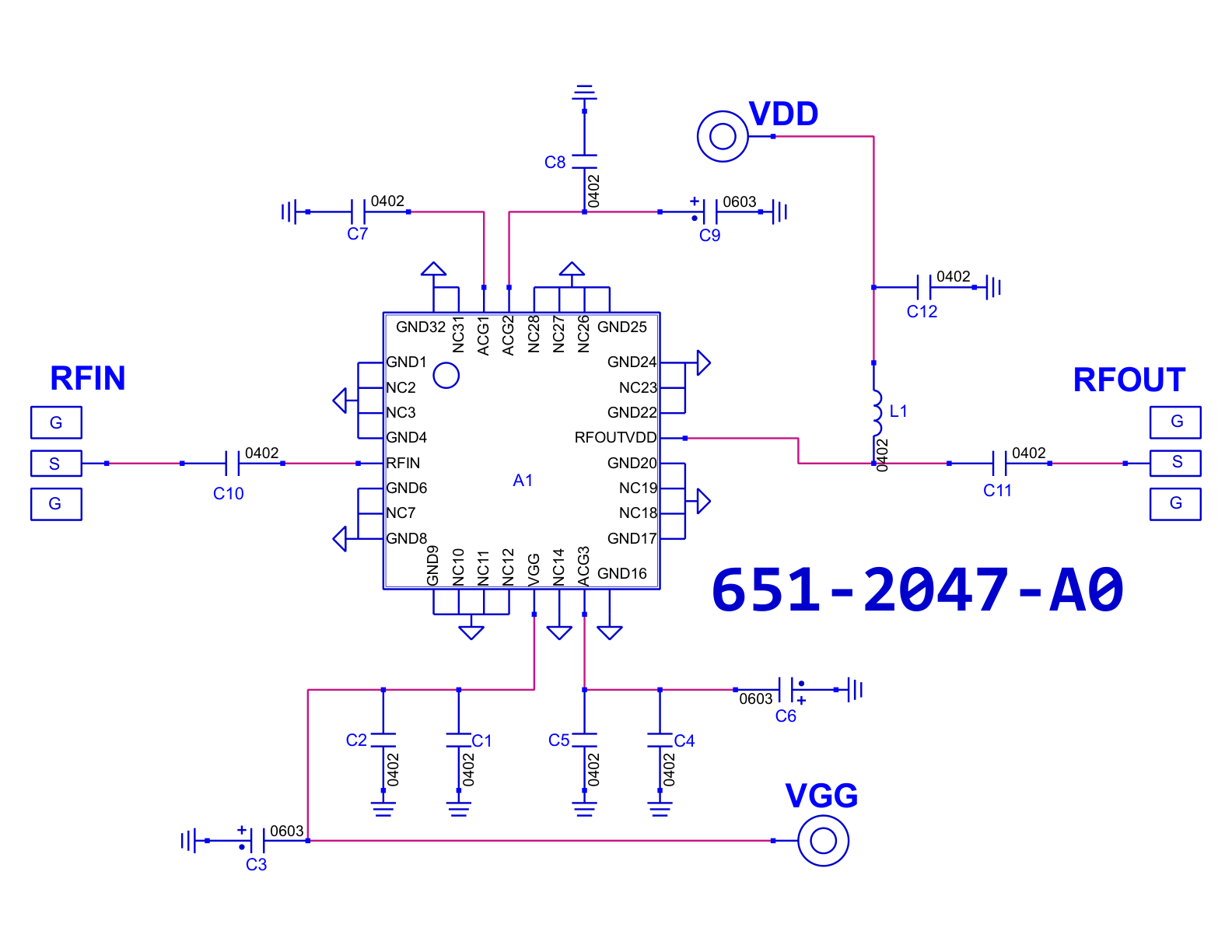

Amplifier, ADPA9002ACGZN [PCB: 2047]
Recommended Bias Controller: XM-D4T1-0604D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A ADPA9002ACGZN

Low Freq

 N/A 50 MHz

High Freq

 N/A 10000 MHz

Gain

 N/A 15 dB

NF

 N/A 5 dB

P1dB

 N/A 29 dBm

IP3

 N/A 43 dBm

Voltage

 N/A 12 V

Current

 N/A 385 mA

N/A

Bias Instruction

 N/A

*VDD=+12V @ IDQ=385mA (Idrive~540mA max) *VGG = ~0V (self-biased) = adj fr -2V to +0.5V BOM change- updated L1 to 590nH - S.Mtz 8/28/24

Power-up Sequence
1. Connect all GND pins to ground.
2. Set the VGG pin to −2 V.
3. Set VDD to +12 V.
4. Increase the VGGG pin to achieve the IDQ (385mA)
Note: ~0V typ. Adjust from -2V to +0.5V.
5. Apply the RF signal.

Power-down Sequence
1. Turn off the RFIN signal.
2. Decrease the VGG pin to −2 V to achieve a typical IDQ of 0 mA.
3. Set VDD to 0 V.
4. Set the VGG pin to 0 V.

Part Number

 N/A XR-D4R6-0604D
