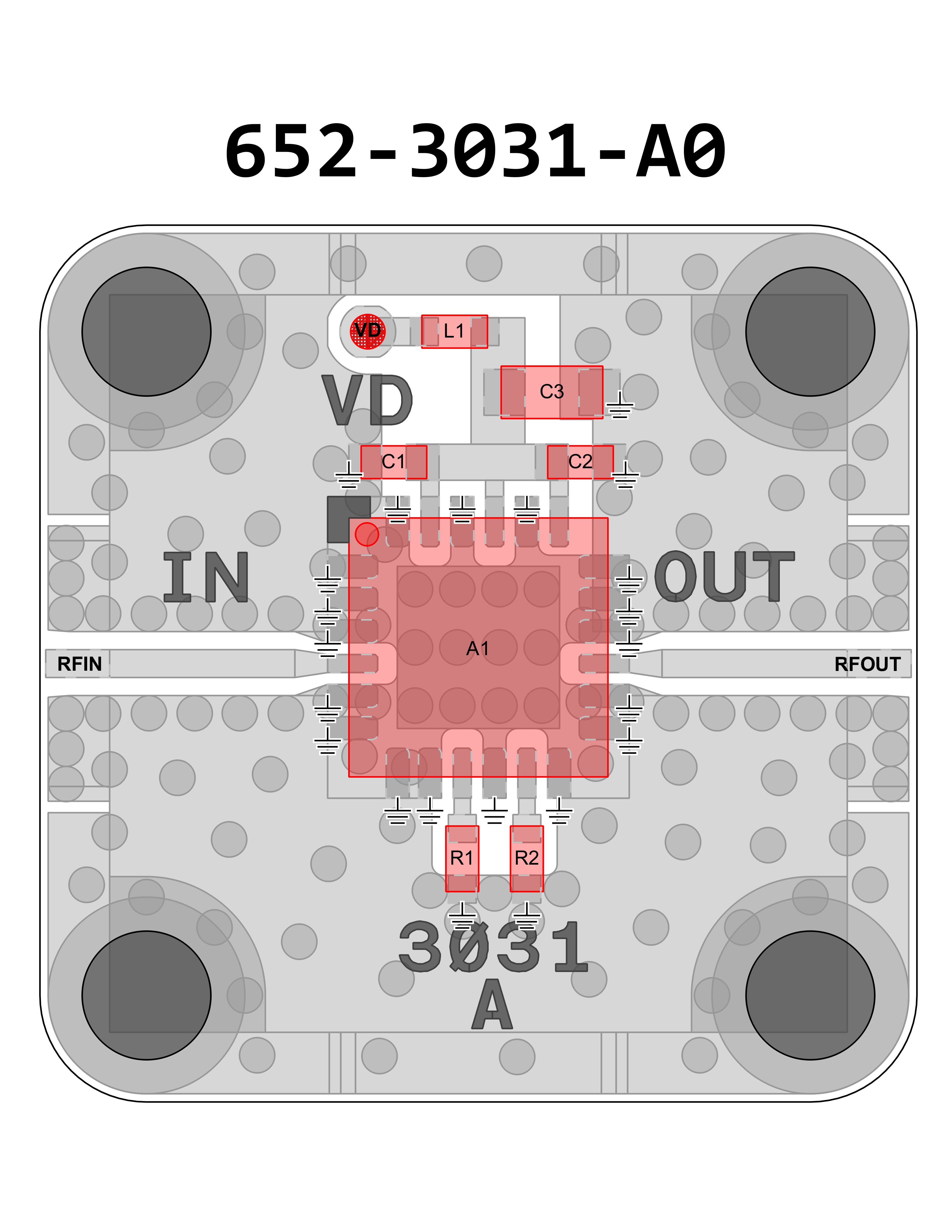

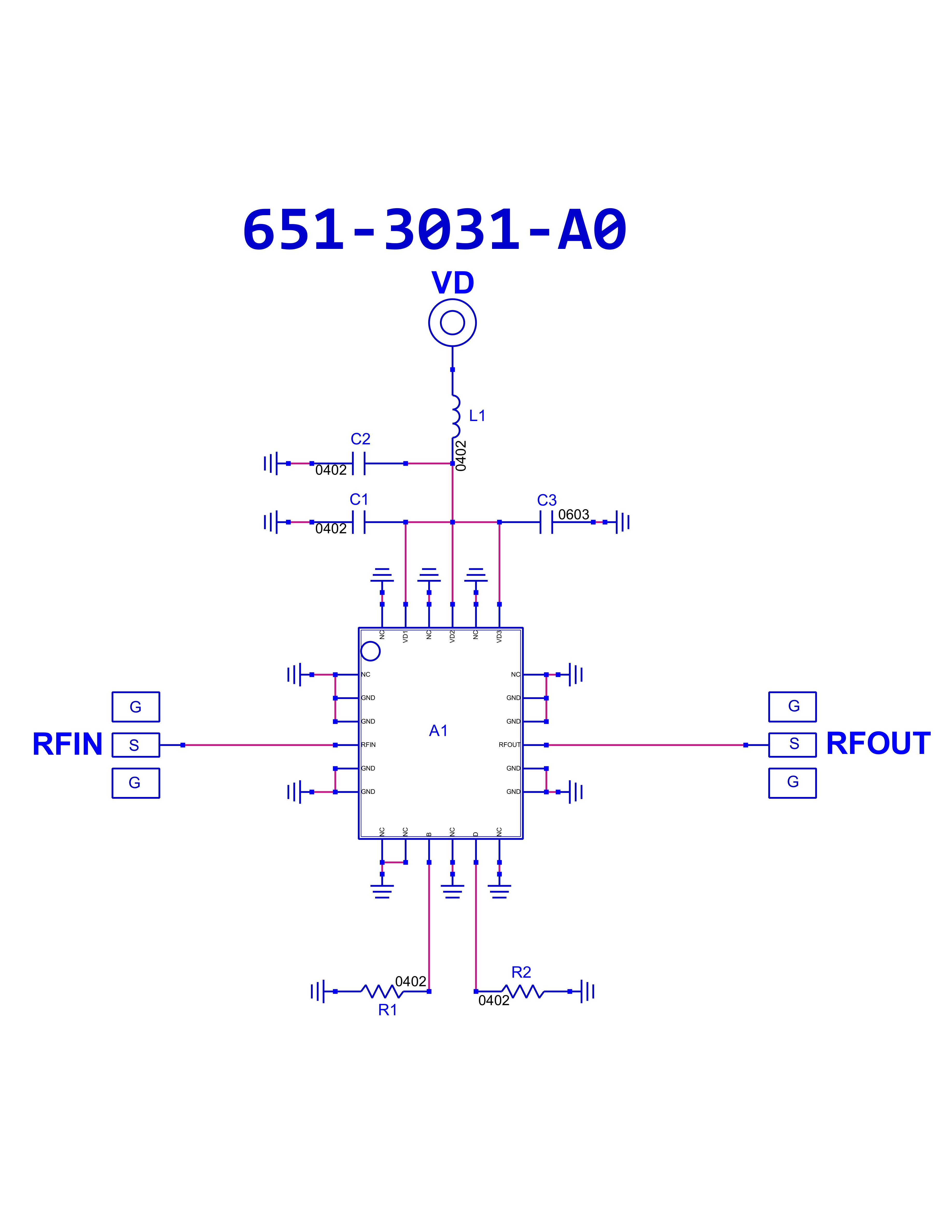

Amplifier, CHA3666-QAG [PCB: 2671]

Product Page

 N/A UMS

Spec Sheet

 N/A CHA3666-QAG

Low Freq

 N/A 5800 MHz

High Freq

 N/A 17000 MHz

Gain

 N/A 21 dB

NF

 N/A 1.8 dB

P1dB

 N/A 16 dBm

IP3

 N/A 26 dBm

Voltage

 N/A 4 V

Current

 N/A 80 mA

N/A

Bias Instruction

 N/A

Notes: P1=N2=GND as typical per Datasheet, ID=80mA
P1=P2=GND high current ID=86mA (P1dB higher by 0.5dB)
F1=N/C

Power-up Sequence
1. Apply VDD = +4V
Verify ID ~80 to 86mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VDD to 0V

Part Number

 N/A XR-D4M1-0404D
