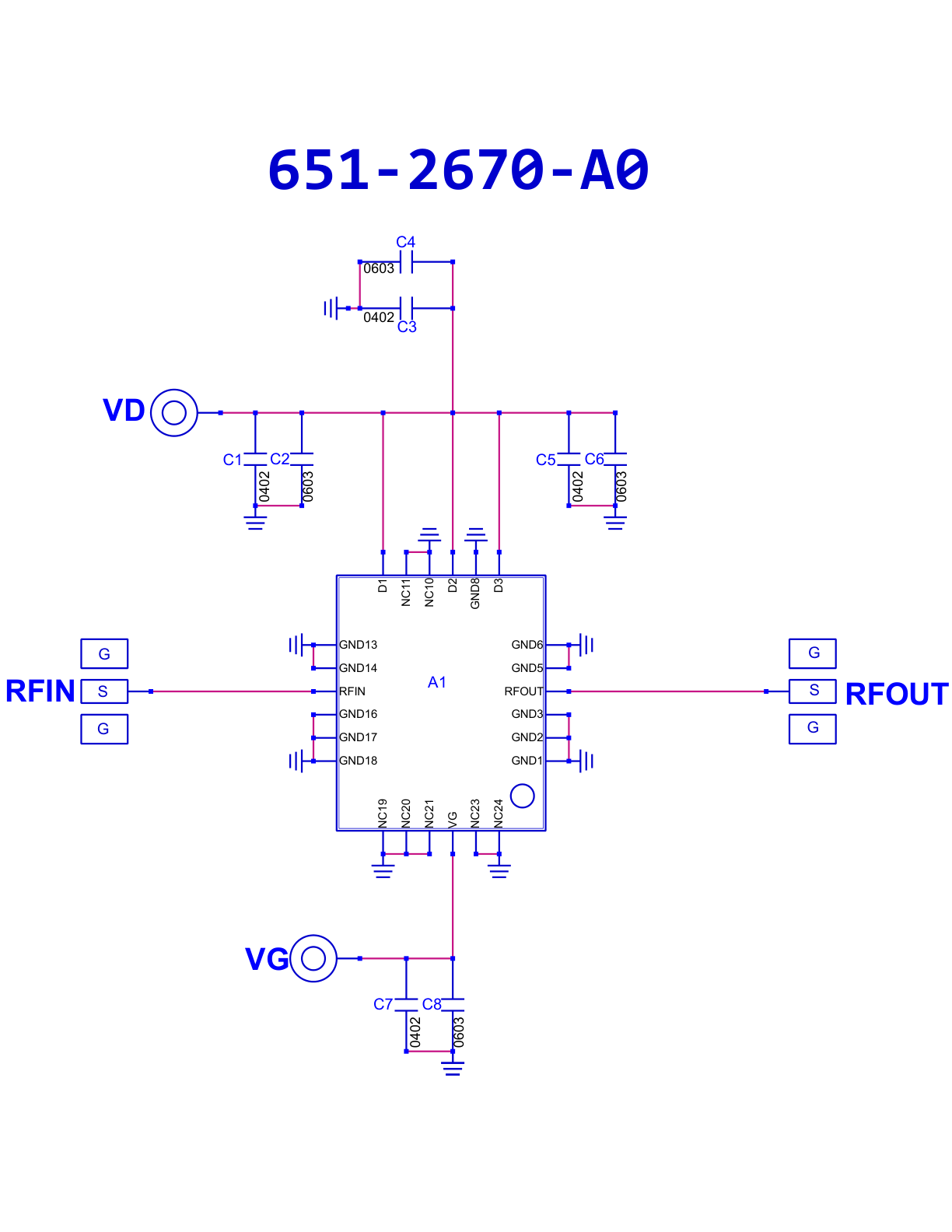

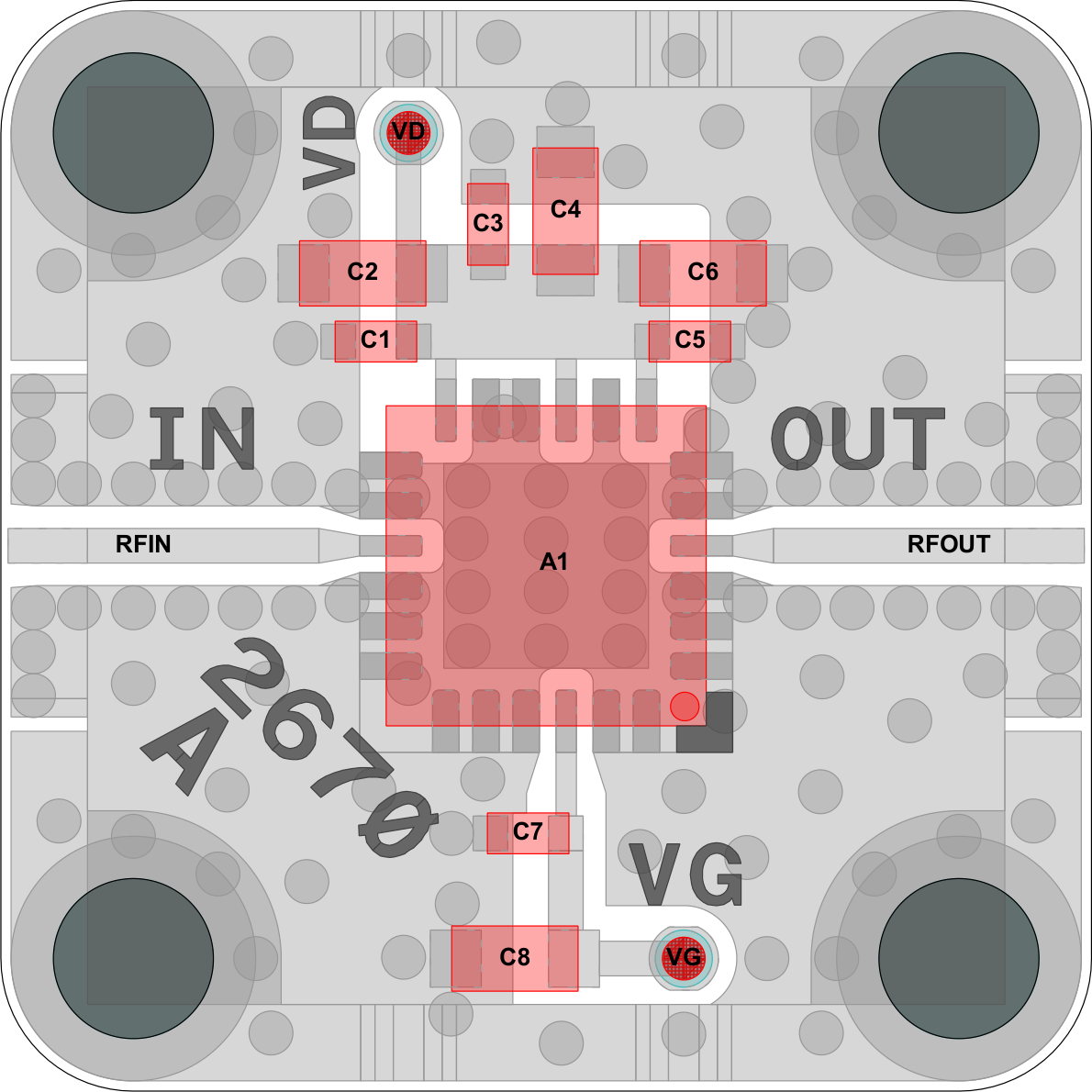

Amplifier, CHA4350-QDG [PCB: 2670]
Recommended Bias Controller: XM-D4R2-0404D-SP

Product Page

 N/A UMS

Spec Sheet

 N/A CHA4350-QDG

Low Freq

 N/A 5500 MHz

High Freq

 N/A 11700 MHz

Gain

 N/A 26 dB

NF

 N/A 5.5 dB

P1dB

 N/A 24 dBm

IP3

 N/A 32 dBm

Voltage

 N/A 5.5 V

Current

 N/A 125 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -2V
2. Apply VD = +5.5V
4. Adjust VG more positive until IDQ reaches 125mA
Note: -0.9V typ. Do not exceed 0.0V
5. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG to -2V
4. Adjust VD to 0V
5. Adjust VG to 0V

Part Number

 N/A XR-D4L8-0404D
