XM-D4F3-0304D
XR-D4F3-0304D ROHS

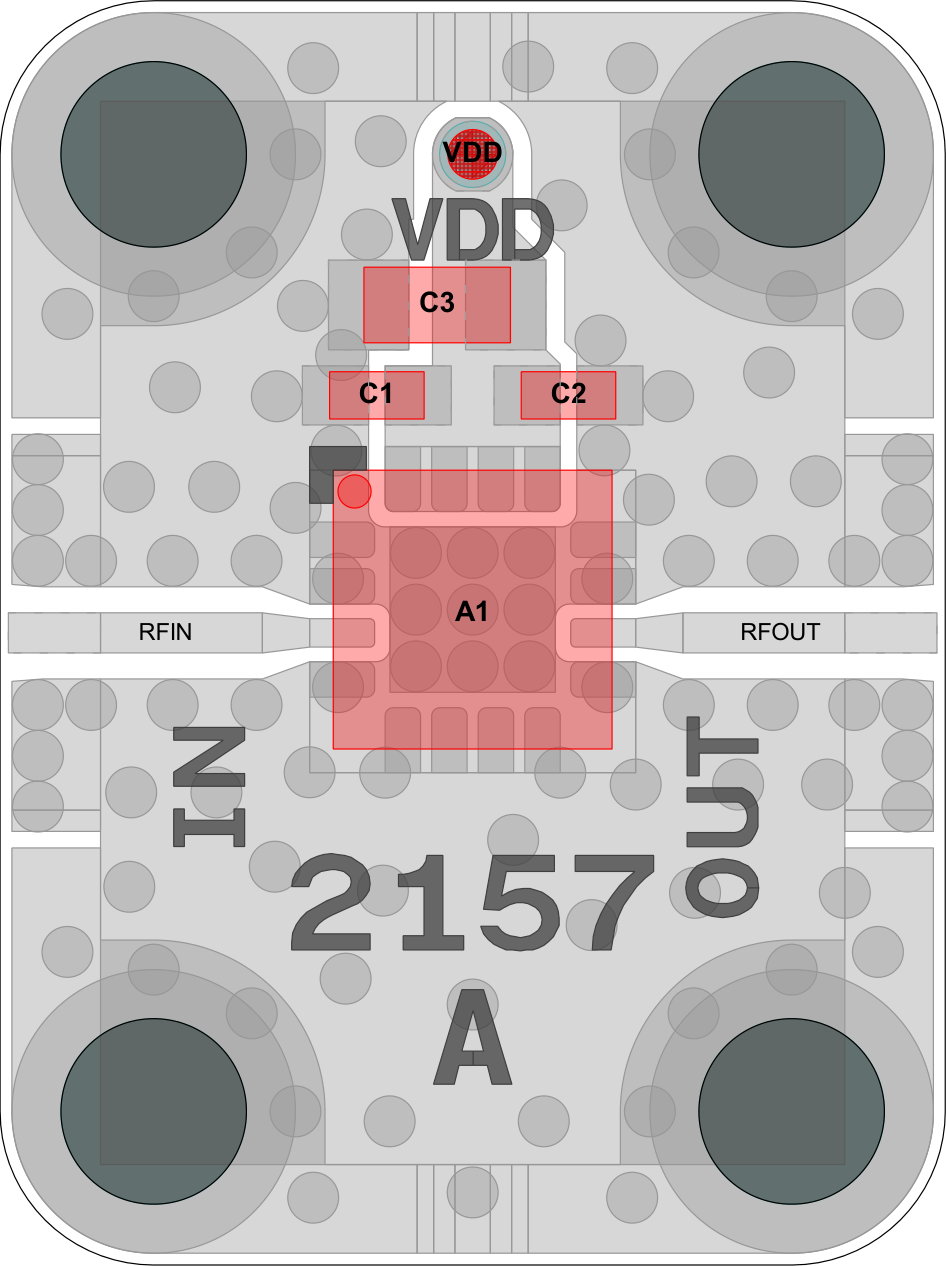

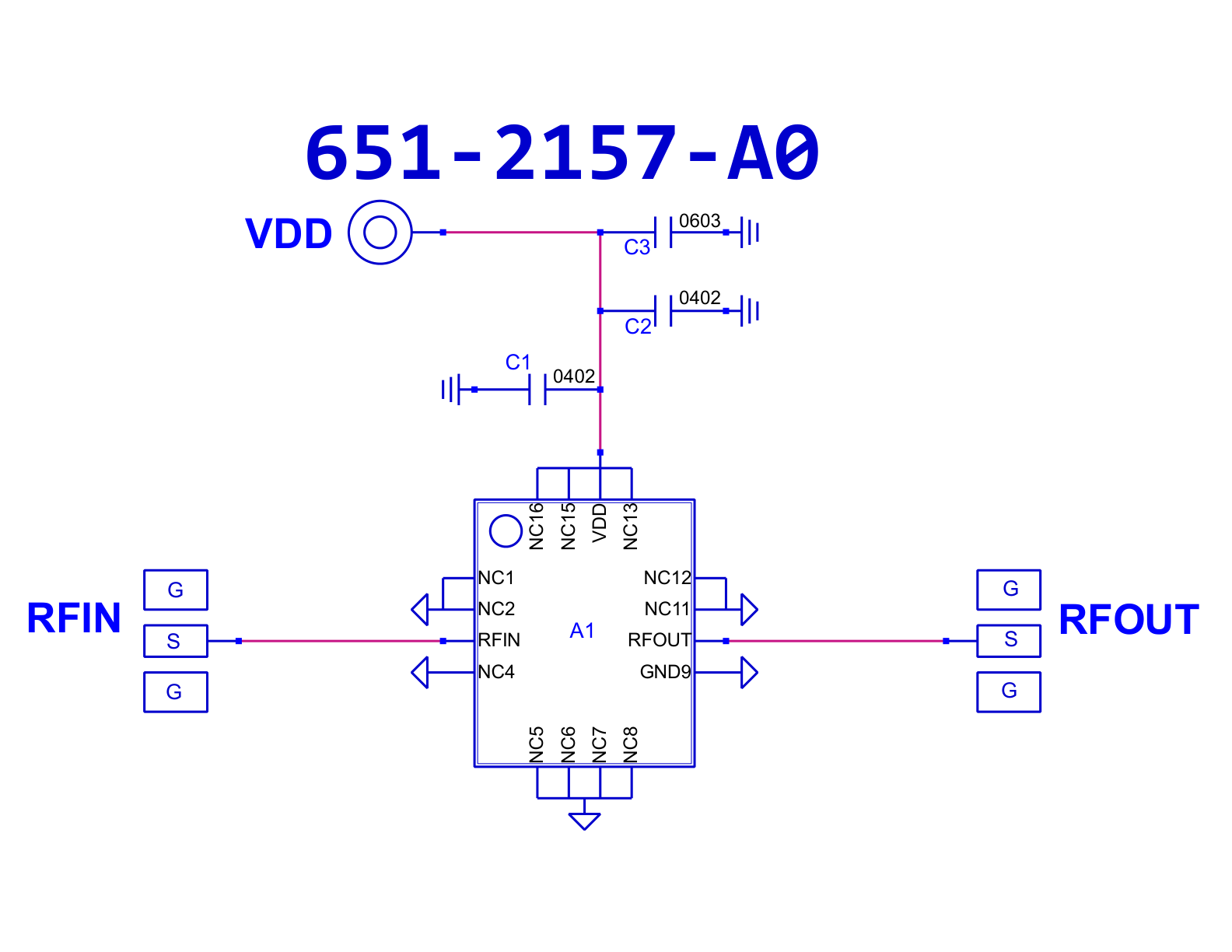

Amplifier, HMC1040LP3CE [PCB: 2157]
Recommended Bias Controller: XM-D4F4-0304D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC1040LP3CE

Low Freq

 N/A 24000 MHz

High Freq

 N/A 43500 MHz

Gain

 N/A 23 dB

NF

 N/A 2.2 dB

P1dB

 N/A 12 dBm

IP3

 N/A 22 dBm

Voltage

 N/A 2.5 V

Current

 N/A 70 mA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +2.5V
Verify IDD ~70mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-D4F3-0304D
