Request Information

XM-D483-0404D
XR-D483-0404D ROHS

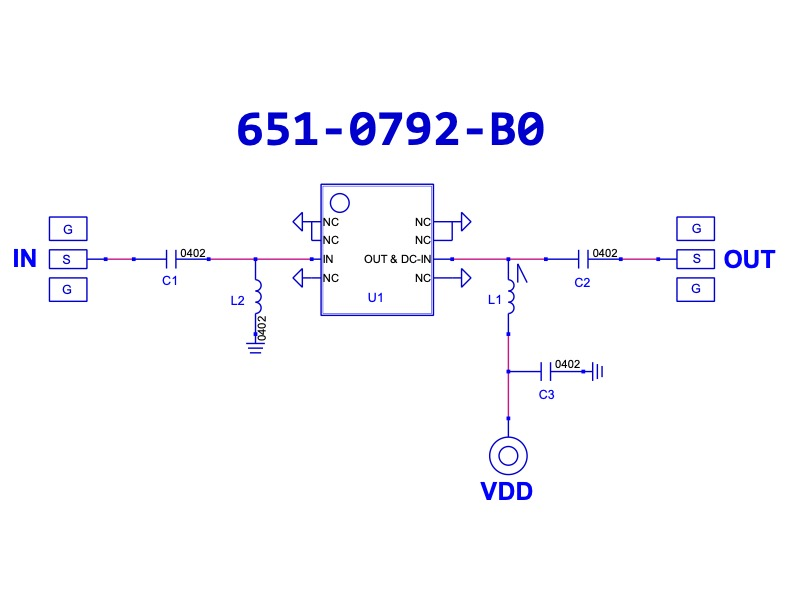

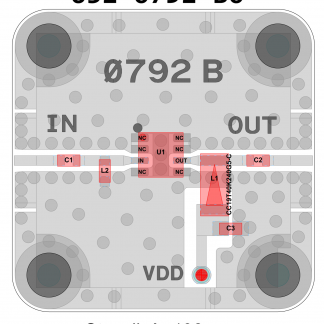

Amplifier, PMA2-123LN5+ [PCB: 0792]
Recommended Bias Controller: XM-A2J9-0404D-SP

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A PMA2-123LN5+

Low Freq

 N/A 500 MHz

High Freq

 N/A 12000 MHz

Gain

 N/A 10.7 dB

NF

 N/A 1.8 dB

IP3

 N/A 24.1 dBm

Voltage

 N/A 5 V

Current

 N/A 30 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5V
Verify IDQ ~30mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VDD to 0V

Part Number

 N/A XR-D483-0404D
