XM-D448-0404D
XR-D448-0404D ROHS

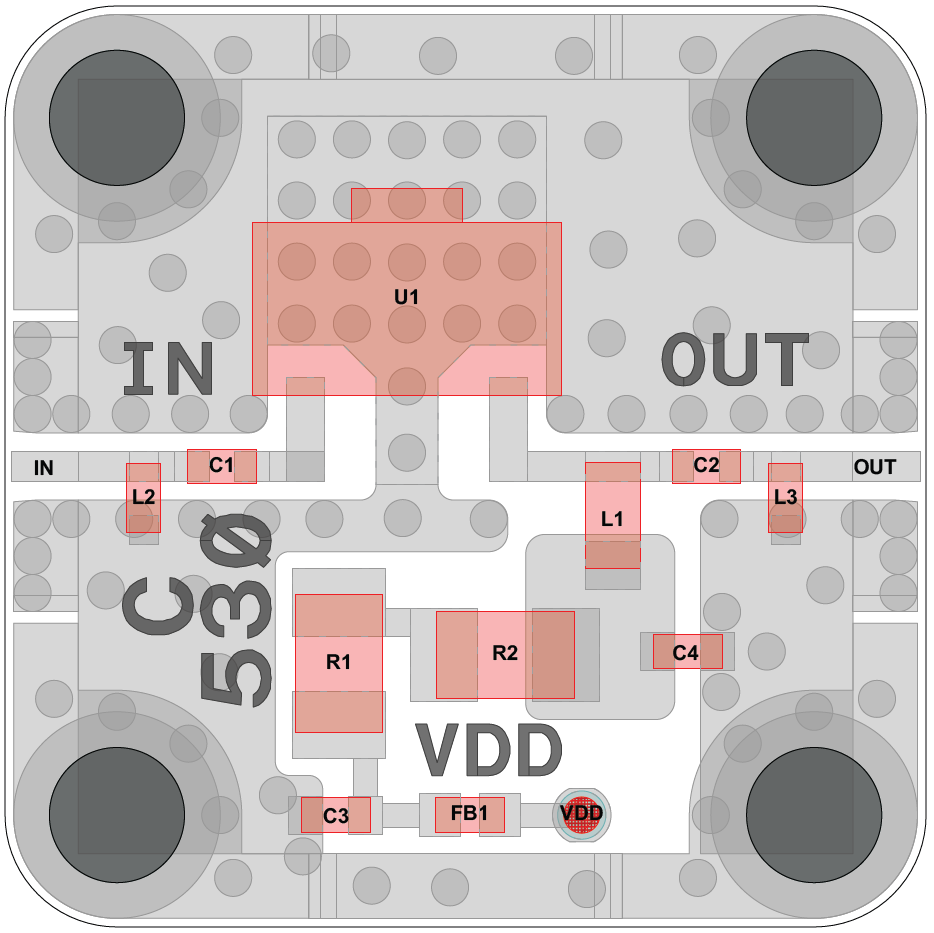

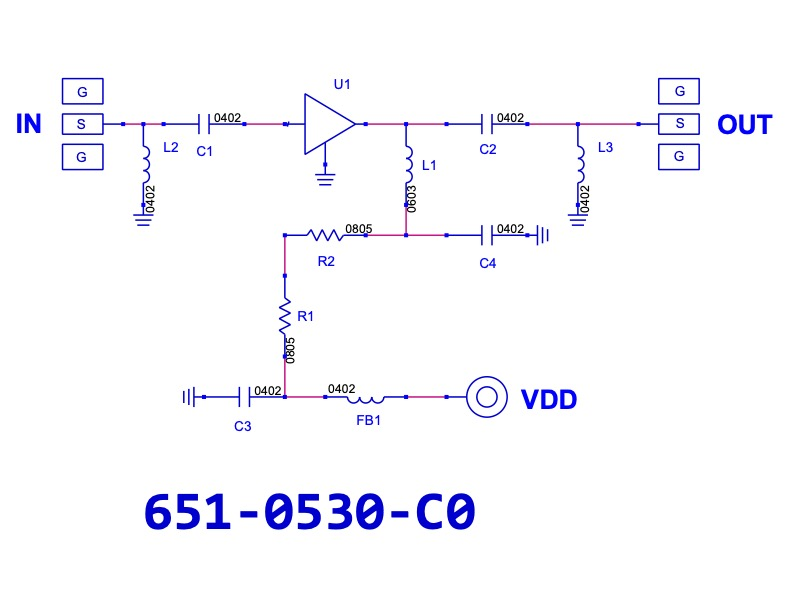

Amplifier, GALI-51+ [PCB: 0530]

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A GALI-51+

Low Freq

 N/A 50 MHz

High Freq

 N/A 4000 MHz

Gain

 N/A 18.1 dB

NF

 N/A 3.5 dB

P1dB

 N/A 18 dBm

IP3

 N/A 35 dBm

Voltage

 N/A 5.5 V

Current

 N/A 65 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5.5V
Verify IDD ~65mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-D448-0404D
