XM-D432-0505D
XR-D432-0505D ROHS

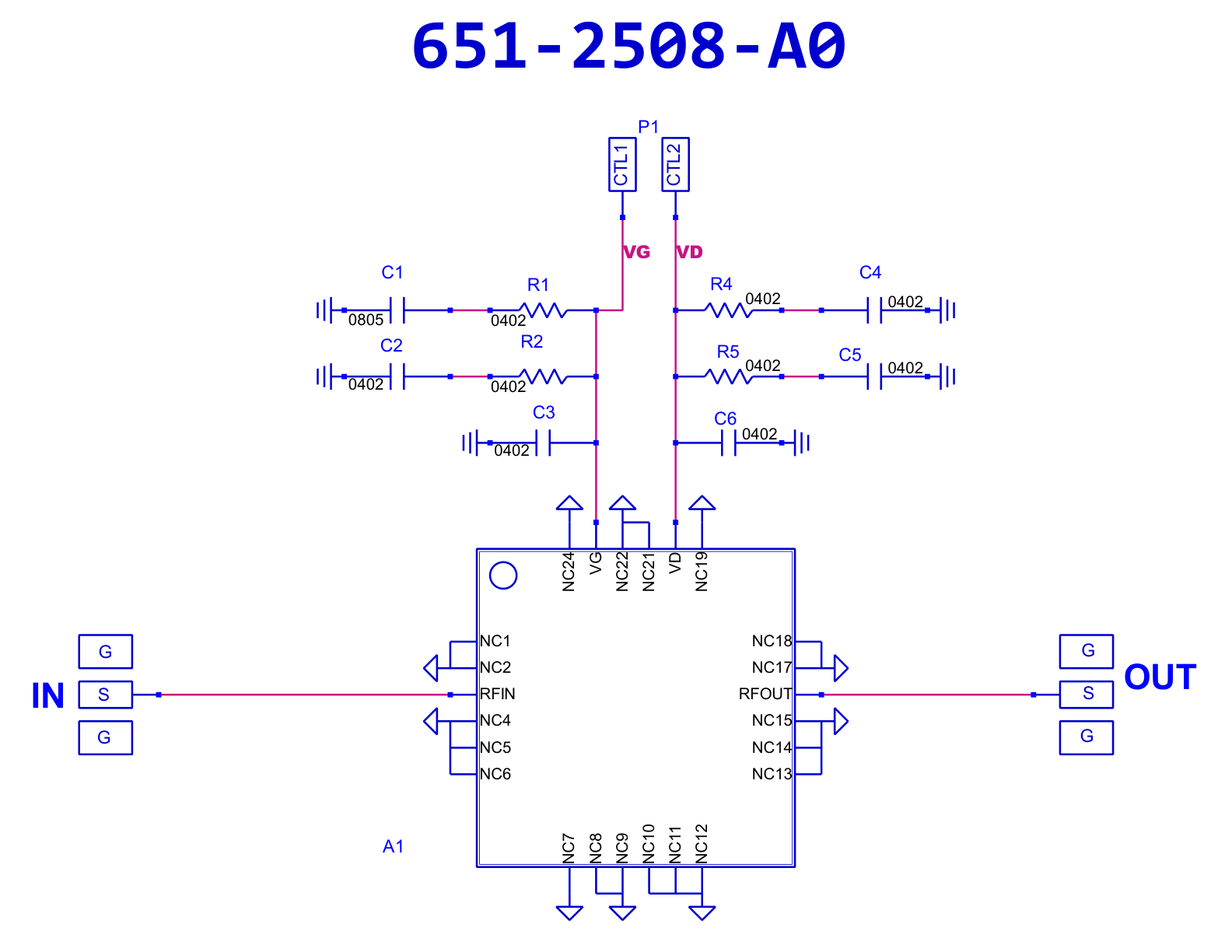

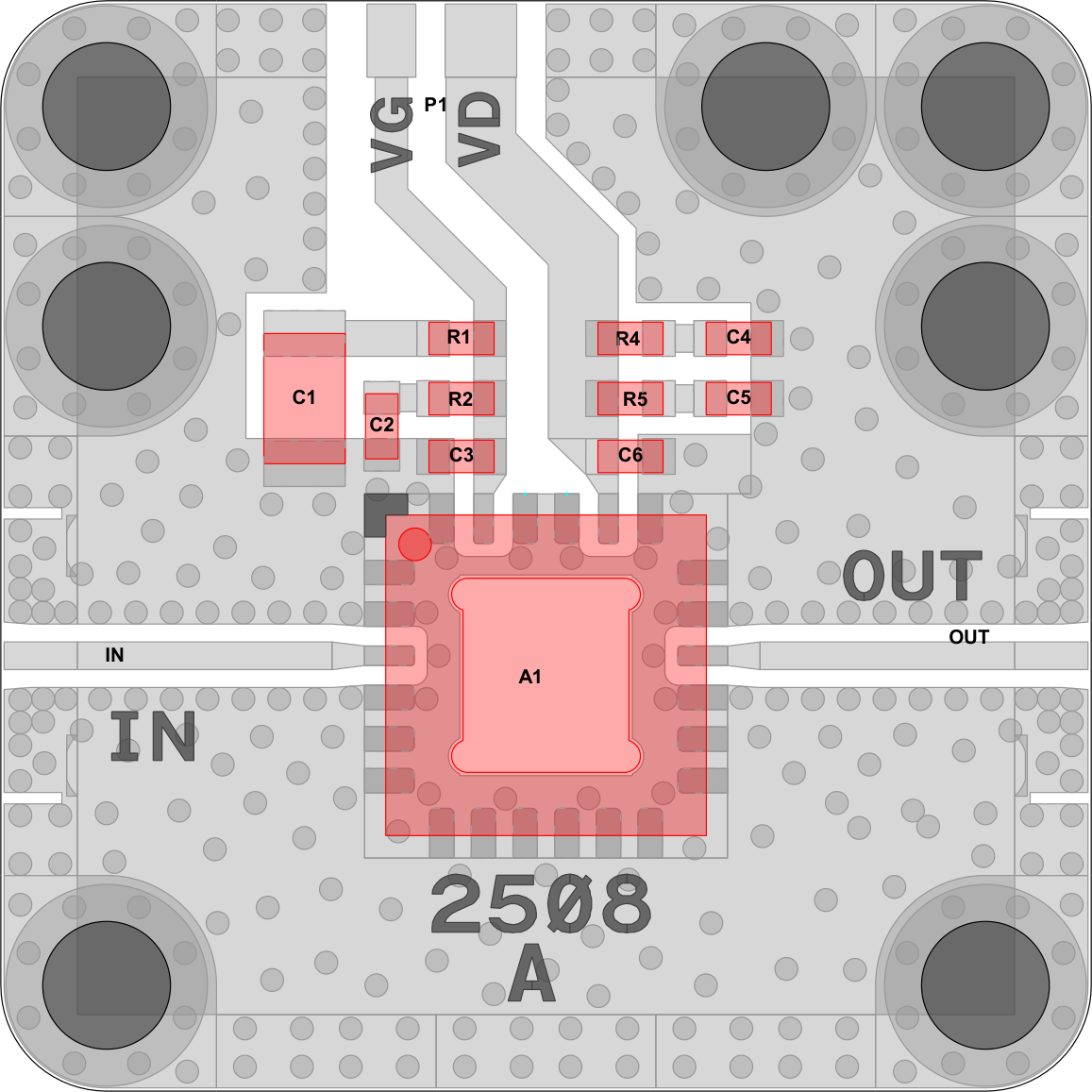

Amplifier, QPA2611 [PCB: 2508]

Product Page

 N/A Qorvo

Spec Sheet

 N/A QPA2611

Low Freq

 N/A 8000 MHz

High Freq

 N/A 12000 MHz

Gain

 N/A 35 dB

Voltage

 N/A 24 V

Current

 N/A 105 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Set ID limit to 1100 mA, IG limit to 15 mA
2. Apply −4 V to VG
3. Apply +24 V to VD
4. Adjust VG more positive until IDQ = 105 mA
Note: -2.8V to -2V typ.
5. Apply RF power

Power-down Sequence
1. Turn off RF signal
2. Reduce VG to −4 V; ensure IDQ is approx. 0 mA
3. Set VD to 0 V
4. Turn off VD supply
5. Turn off VG supply

Part Number

 N/A XR-D432-0505D
