XM-D3U7-0304D
XR-D3U7-0304D ROHS

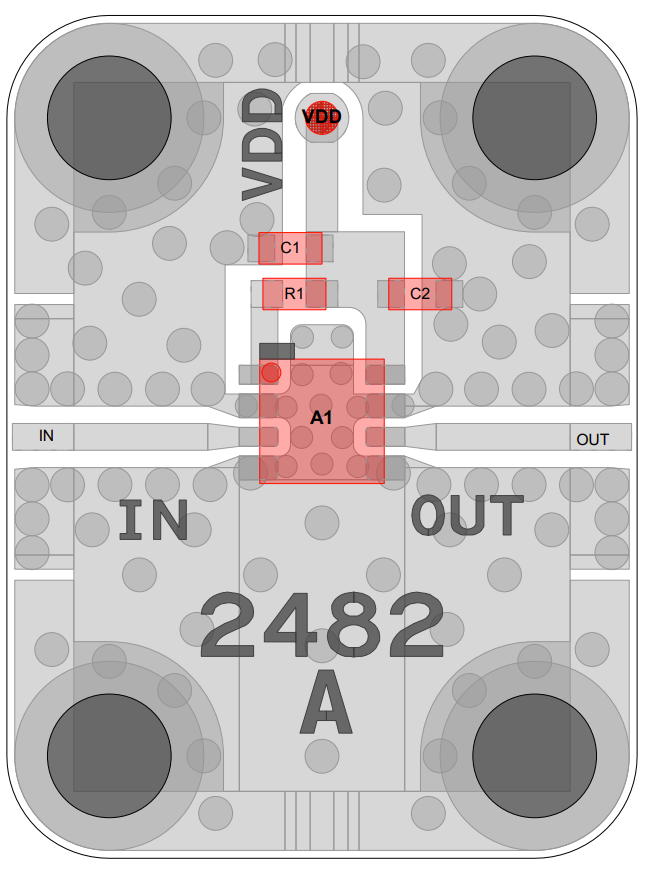

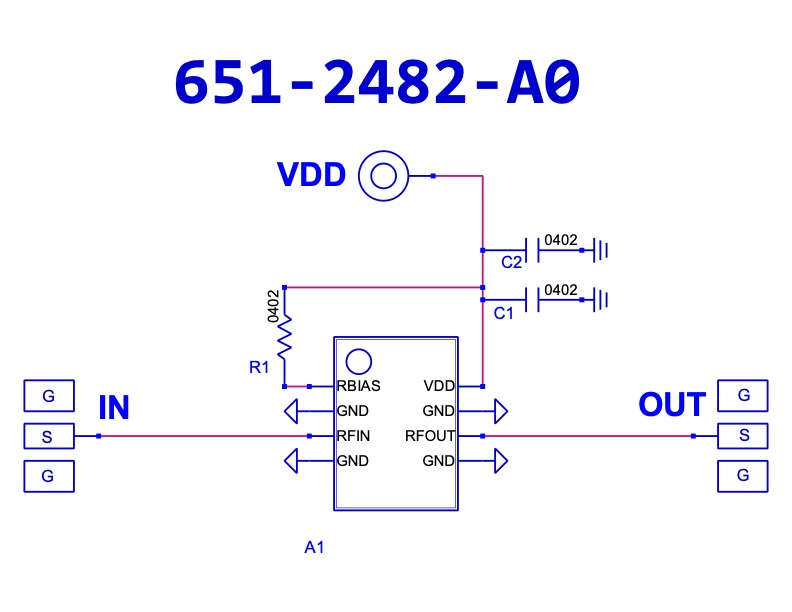

Amplifier, ADL8142ACPZN [PCB: 2482]
Recommended Bias Controller: XM-D4D8-0304D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADL8142ACPZN

Low Freq

 N/A 23000 MHz

High Freq

 N/A 31000 MHz

Gain

 N/A 27 dB

NF

 N/A 1.6 dB

P1dB

 N/A 8.5 dBm

IP3

 N/A 17.5 dBm

Voltage

 N/A 1.5 V

Current

 N/A 25 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +2V
Verify IDQ ~25mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VDD to 0V

Part Number

 N/A XR-D3U7-0304D
