XM-D3P8-0404D
XR-D3P8-0404D ROHS

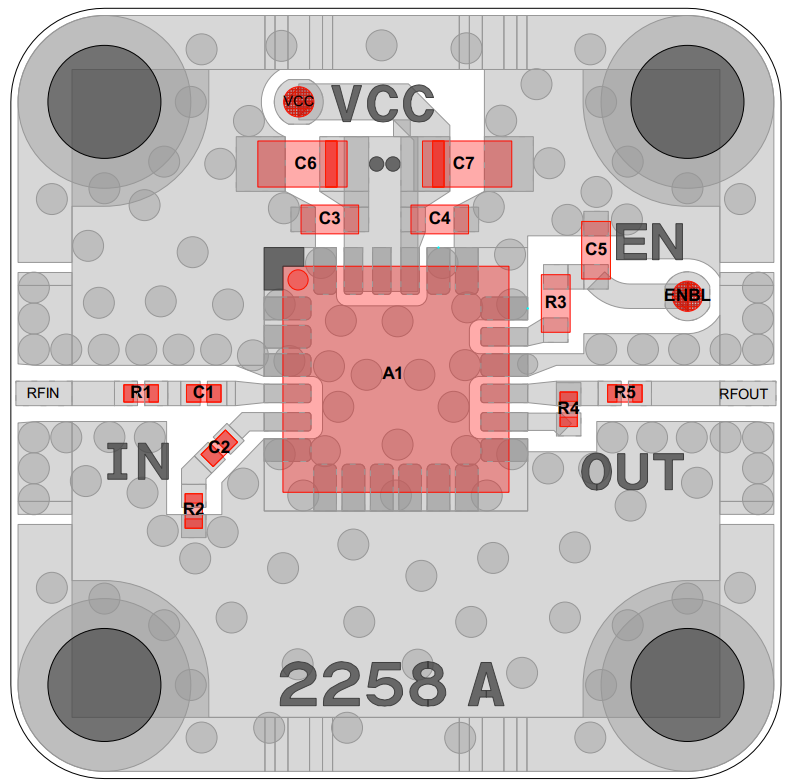

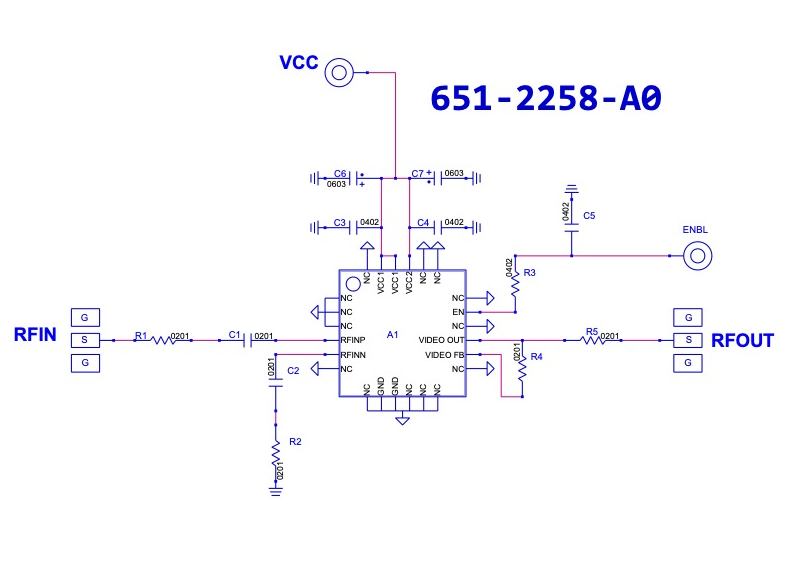

Amplifier, HMC613LC4B [PCB: 2258]
Recommended Bias Controller: XM-D3P9-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC613LC4B

Low Freq

 N/A 100 MHz

High Freq

 N/A 20000 MHz

Voltage

 N/A 3.3 V

Current

 N/A 80 mA

Bias Instruction

 N/A

Power-up Sequence
1. Apply VCC = +3.3V
2. Apply EN = VCC (ON)
Verify ICC ~88mA
3. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust EN to 0V (OFF)
2. Adjust VDD to 0V

Part Number

 N/A XR-D3P8-0404D
