XM-D3C6-0304D
XR-D3C6-0304D ROHS

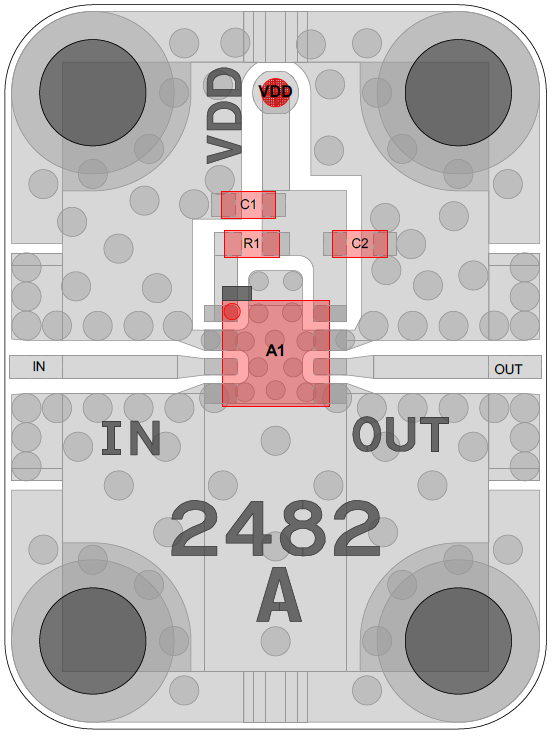

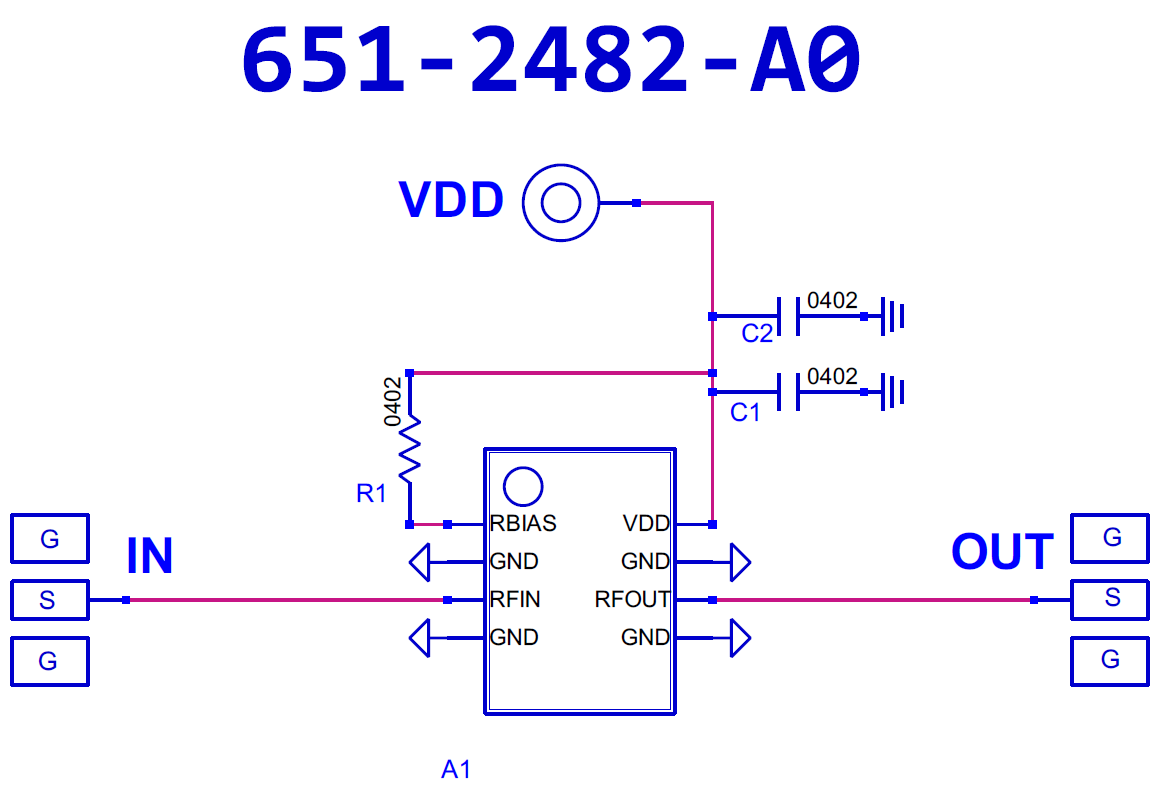

Amplifier, ADL8107ACPZN [PCB: 2482]
Recommended Bias Controller: XM-A492-0304D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADL8107ACPZN

Low Freq

 N/A 6000 MHz

High Freq

 N/A 18000 MHz

Gain

 N/A 24 dB

NF

 N/A 1.3 dB

P1dB

 N/A 18 dBm

IP3

 N/A 29 dBm

Voltage

 N/A 3 V

Current

 N/A 90 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5V
Verify IDD ~90mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VDD to 0V

Part Number

 N/A XR-D3C6-0304D
