XM-D3B3-0604D
XR-D3B3-0604D ROHS

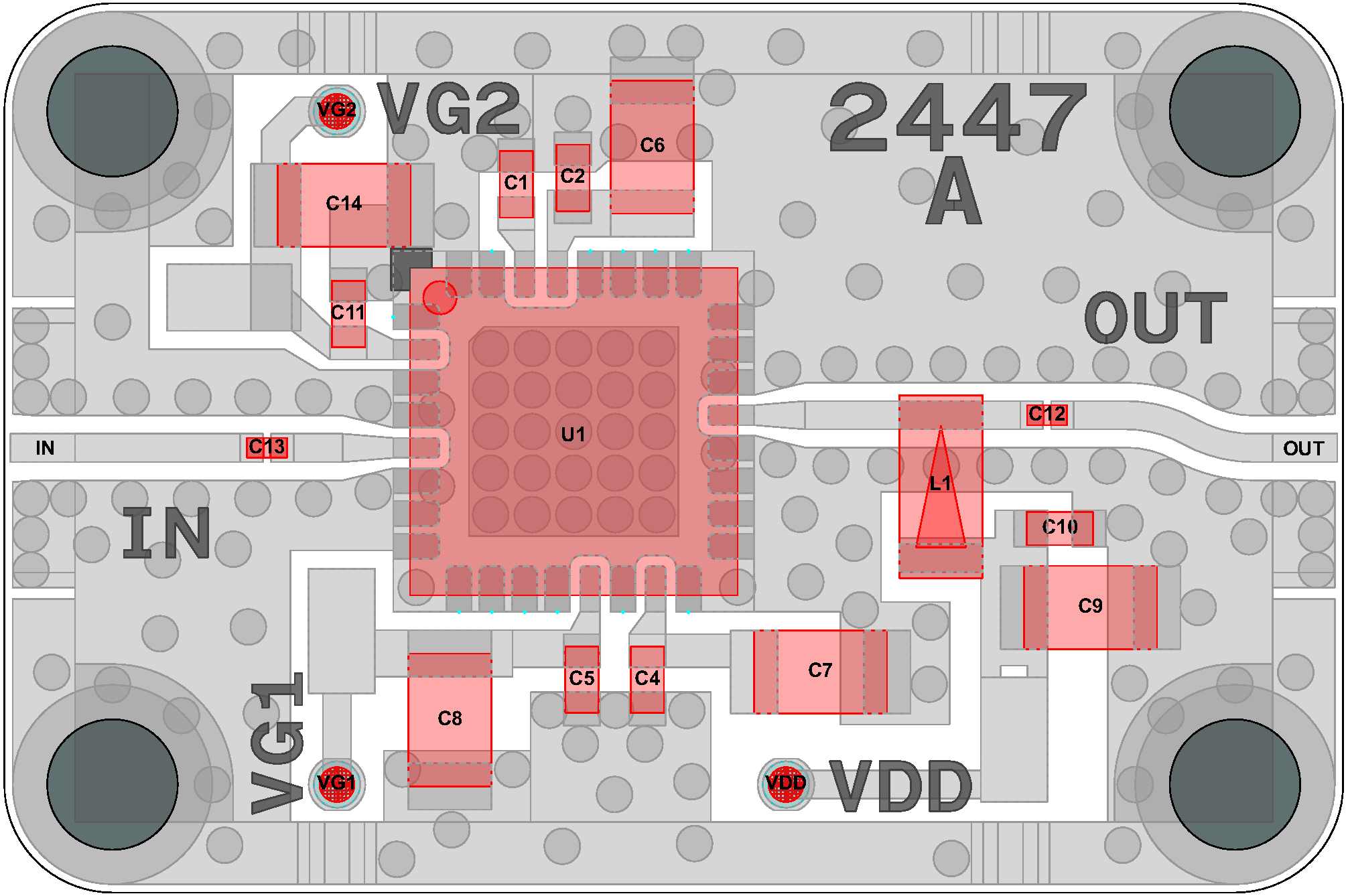

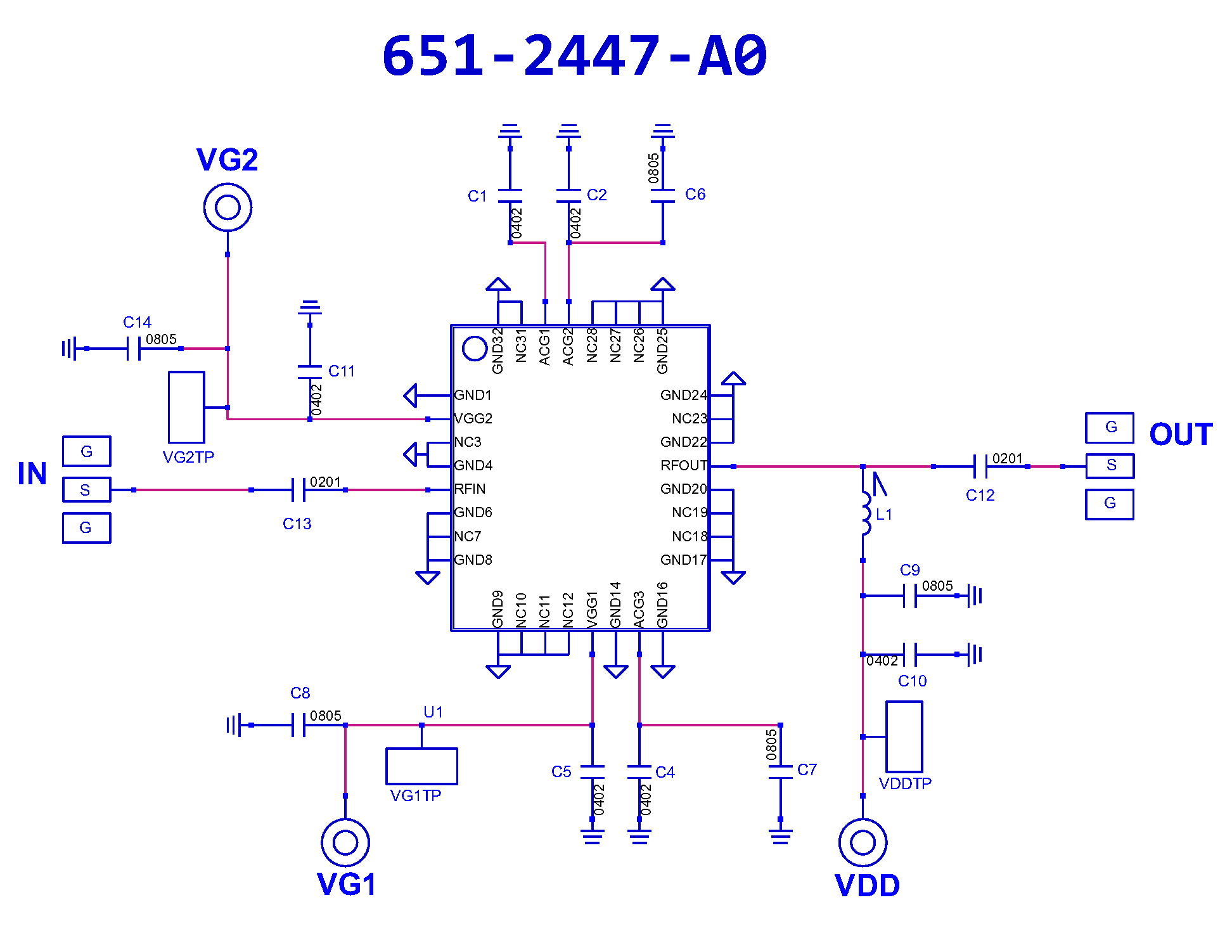

Amplifier, HMC994APM5E [PCB: 2447]

Product Page

 N/A ADI

Spec Sheet

 N/A HMC994APM5E

Low Freq

 N/A 0 MHz

High Freq

 N/A 28000 MHz

Gain

 N/A 15 dB

NF

 N/A 4 dB

P1dB

 N/A 28 dBm

IP3

 N/A 38 dBm

Voltage

 N/A 10 V

Current

 N/A 250 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = -2V
2. Apply VG2 = +3.5V
3. Apply VDD = +10V
4. Adjust VG1 more positive until IDD reaches 250mA
Note: -0.5V typ.
5. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -2V
3. Adjust VG2 to 0V
4. Adjust VDD to 0V
5. Adjust VG1 to 0V

Part Number

 N/A XR-D3B3-0604D
