XM-D3A5-0404D
XR-D3A5-0404D ROHS

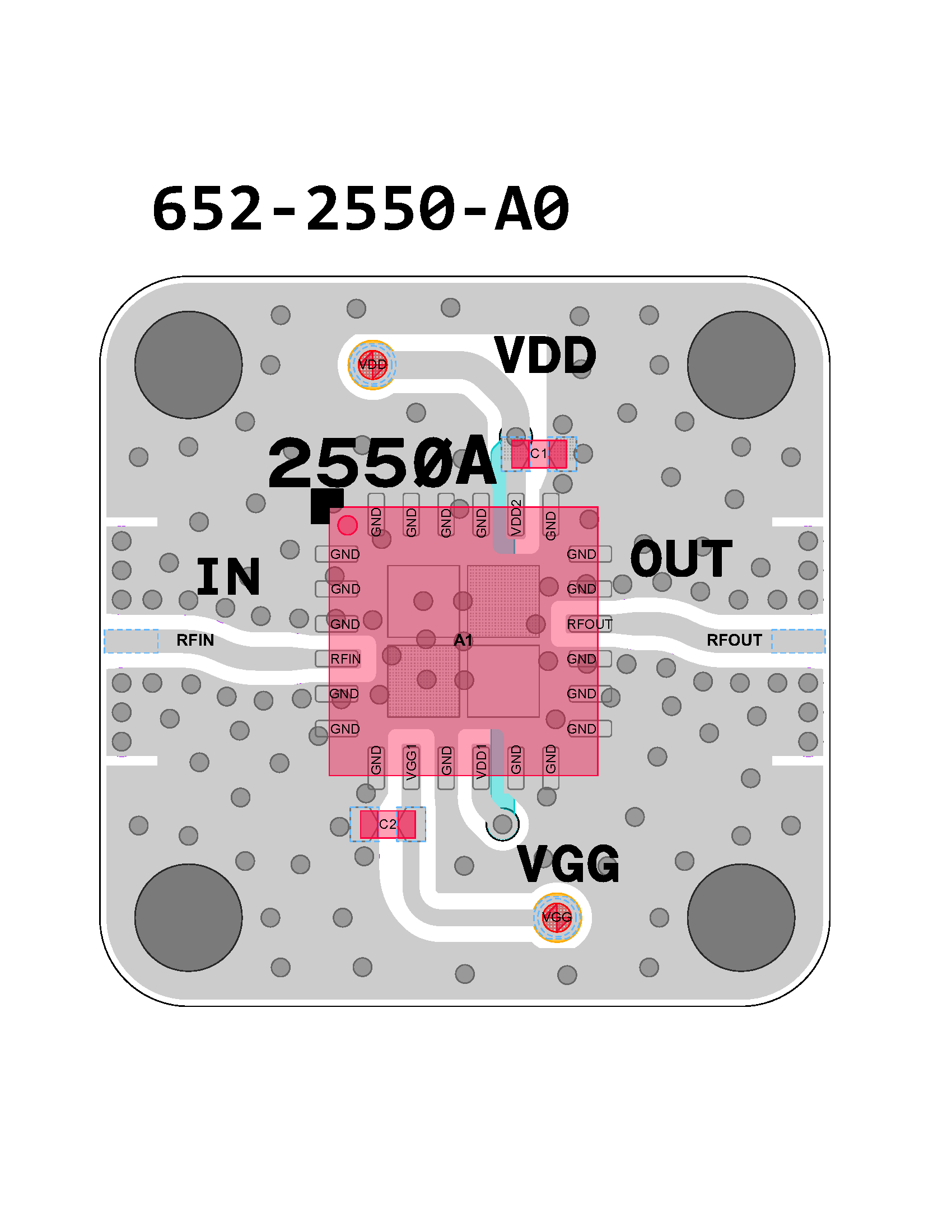

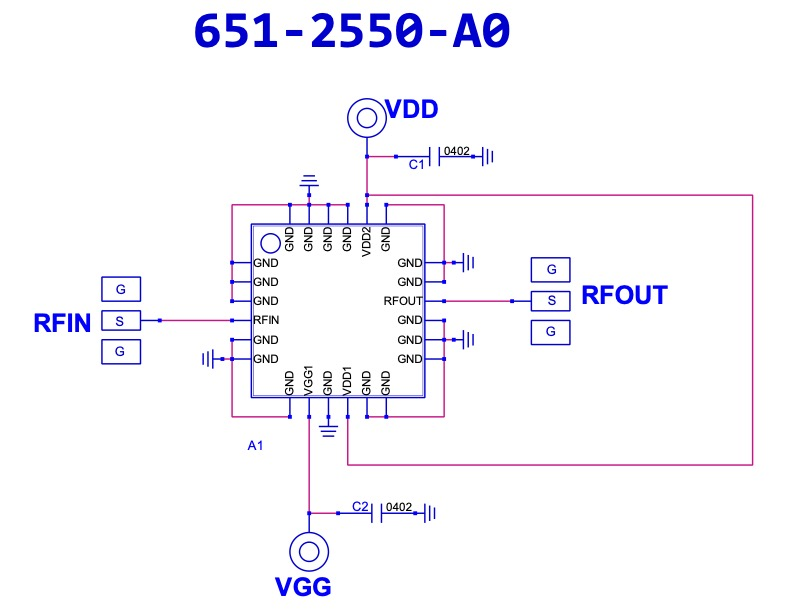

Amplifier, ADL8106ACEZ [PCB: 2550]
Recommended Bias Controller: XM-D437-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADL8106ACEZ

Low Freq

 N/A 20000 MHz

High Freq

 N/A 54000 MHz

Gain

 N/A 21.5 dB

NF

 N/A 3.5 dB

P1dB

 N/A 14.5 dBm

IP3

 N/A 21.5 dBm

Voltage

 N/A 2 V

Current

 N/A 120 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -2V
2. Apply VDD = +3V
3. Adjust VGG more positive until IDQ reaches 120mA
Note: -0.65V typ. Do not exceed 0V.
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -2V
3. Adjust VDD to 0V
4. Adjust VGG to 0V

Part Number

 N/A XR-D3A5-0404D
