XM-D3A2-0404D
XR-D3A2-0404D ROHS

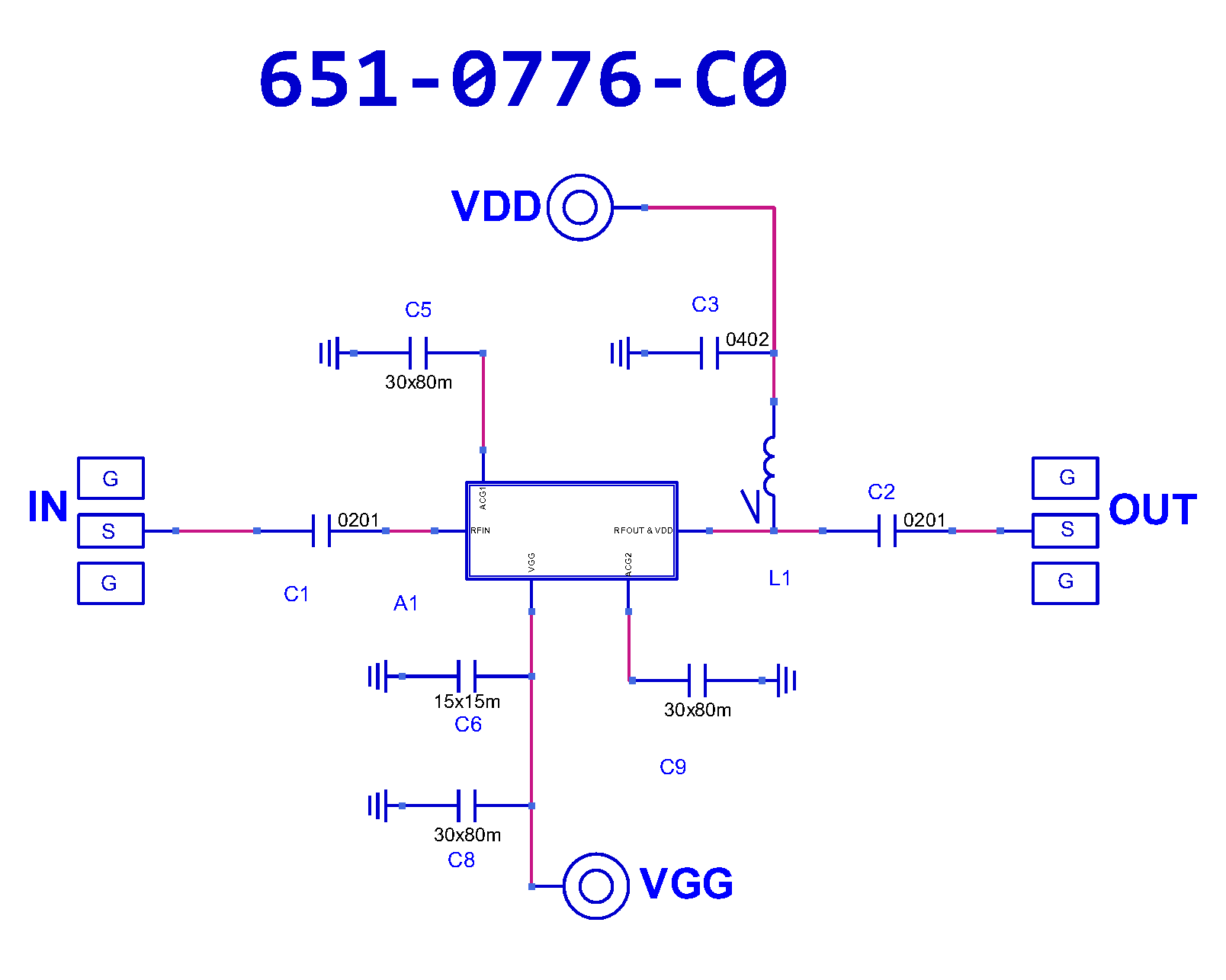

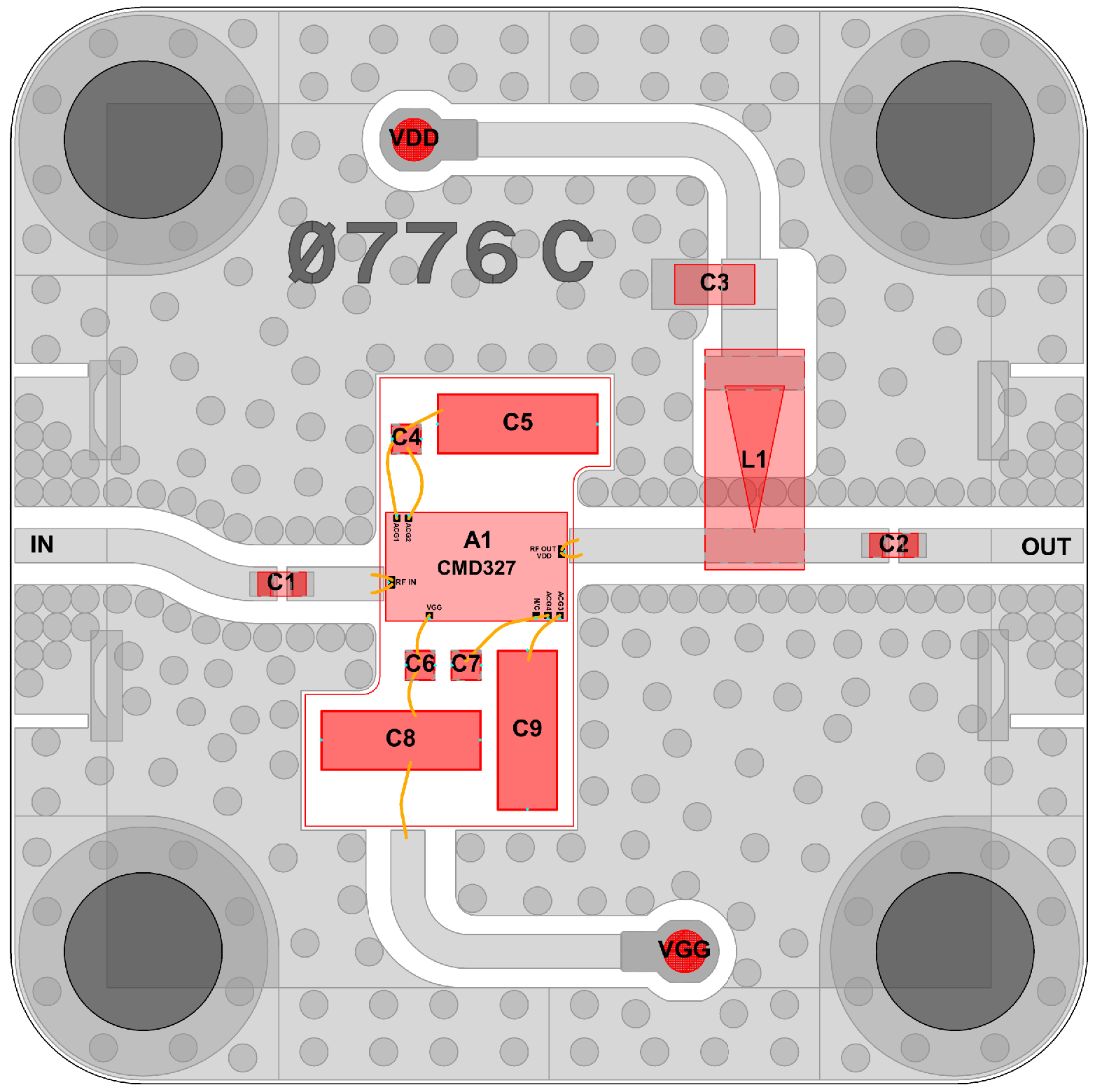

Amplifier, CMD327 [PCB: 0776]
Recommended Bias Controller: XM-D3N7-0404D-SP

Configurations

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD327

Low Freq

 N/A 50 MHz

High Freq

 N/A 40000 MHz

Gain

 N/A 11.1 dB

NF

 N/A 4.5 dB

P1dB

 N/A 19 dBm

IP3

 N/A 31 dBm

Voltage

 N/A 5 V

Current

 N/A 100 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5V (@100mA)
2. Apply VGG = +3V (@3.6mA)

Power-down Sequence
1. Turn off VGG
2. Turn off VDD

Note: RF power can be applied at any time

Part Number

 N/A XR-D3A2-0404D
