XM-D3A2-0404C
XR-D3A2-0404C ROHS

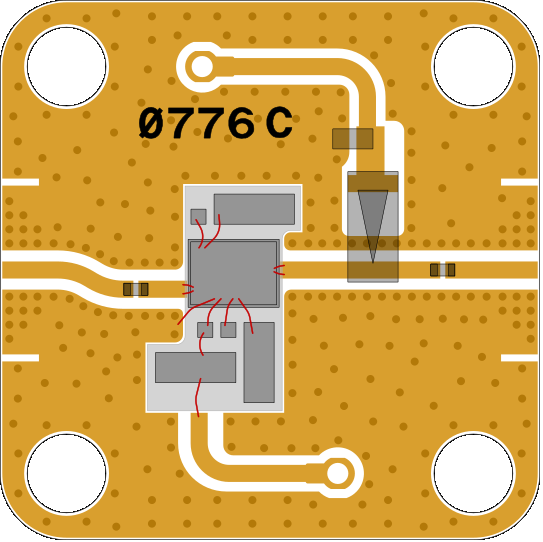

Amplifier, CMD327 [PCB: 0776]
Connectorized Housing

Configurations

Configurations

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD327

Low Freq

 N/A 50 MHz

High Freq

 N/A 40000 MHz

Gain

 N/A 11.1 dB

NF

 N/A 4.5 dB

P1dB

 N/A 19 dBm

IP3

 N/A 31 dBm

Voltage

 N/A 5 V

Current

 N/A 100 mA

Connector Series

 N/A 2.92mm

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply drain voltage Vdd and set to +5 V (100mA)
2. Apply gate voltage Vgg and set to +3 V (3.6 mA)

Power-down Sequence
1. Turn off gate voltage Vgg
2. Turn off drain voltage Vdd

Part Number

 N/A XR-D3A2-0404C
