XM-D336-0404D
XR-D336-0404D ROHS

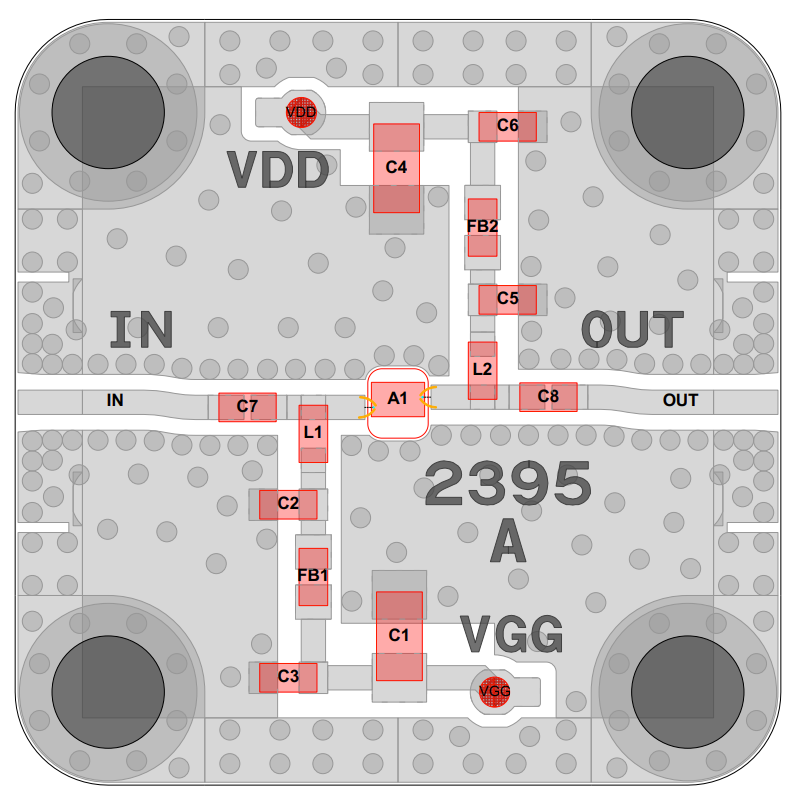

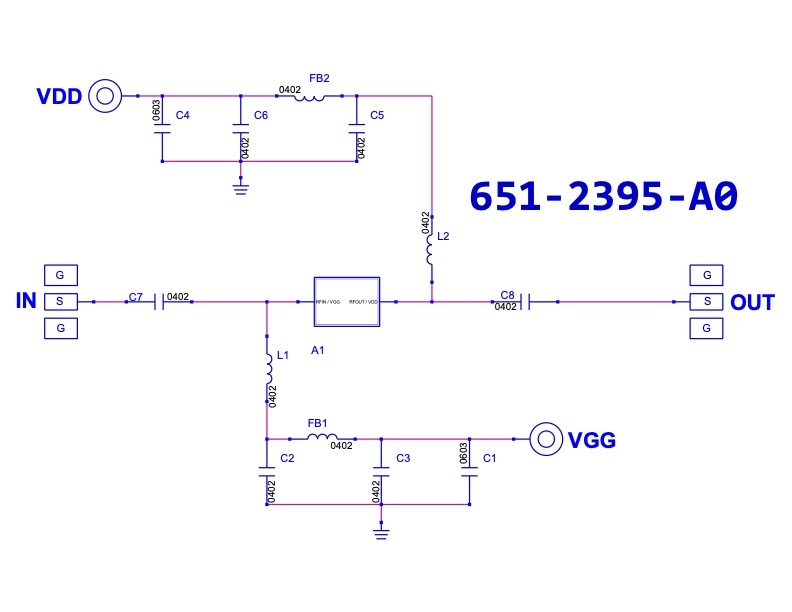

Amplifier, HMC8410CHIPS-SX [PCB: 2395]
Recommended Bias Controller: XM-B1E1-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC8410CHIPS-SX

Low Freq

 N/A 10 MHz

High Freq

 N/A 10000 MHz

Gain

 N/A 18 dB

NF

 N/A 1.1 dB

P1dB

 N/A 21 dBm

IP3

 N/A 33 dBm

Voltage

 N/A 5 V

Current

 N/A 65 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -2V
2. Apply VD = +5V
3. Adjust VGG more positive until IDQ reaches 65mA
Note: Do not exceed 0V.
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -2V
3. Adjust VD to 0V
4. Adjust VG to 0V

Part Number

 N/A XR-D336-0404D
