XM-D2P6-0604D
XR-D2P6-0604D ROHS

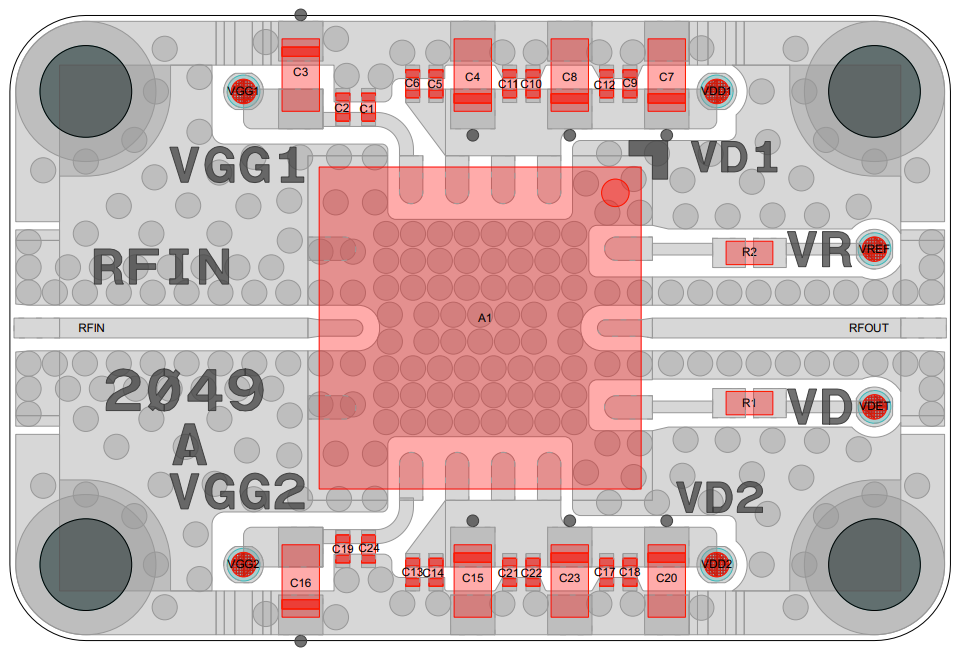

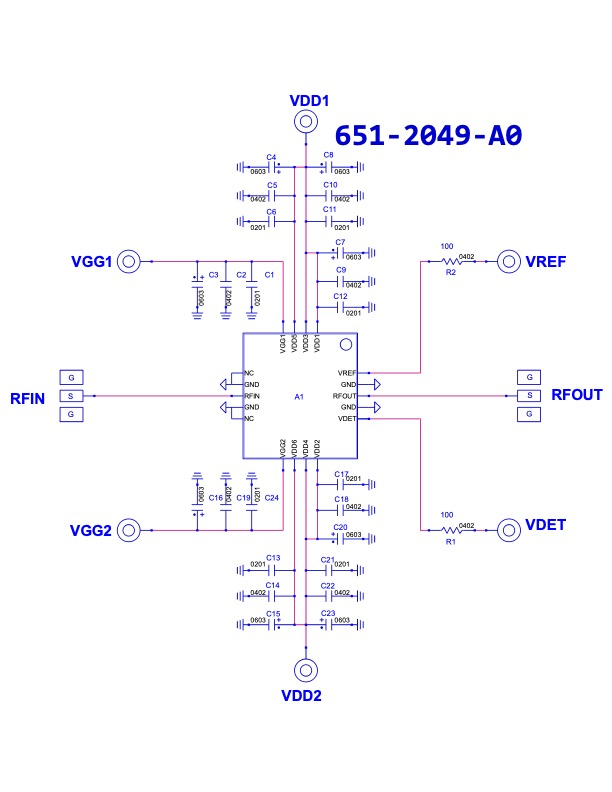

Amplifier, ADPA7005XEHZ [PCB: 2049]
Recommended Bias Controller: XM-D6Y5-0604D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADPA7005XEHZ

Low Freq

 N/A 18000 MHz

High Freq

 N/A 44000 MHz

Gain

 N/A 15.5 dB

NF

 N/A 11 dB

P1dB

 N/A 31 dBm

IP3

 N/A 42.5 dBm

Voltage

 N/A 5 V

Current

 N/A 1400 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG1,2 = -1.6V
2. Apply VD1,2 = +5V
3. Adjust VGG1,2 more positive until IDQ1,2 reaches 1400mA
Note: Do not exceed 0V.
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG1,2 to -1.6V
3. Adjust VD1,2 to 0V
4. Adjust VGG1,2 to 0V

Part Number

 N/A XR-D2P6-0604D
