XM-D2N8-0304D
XR-D2N8-0304D ROHS

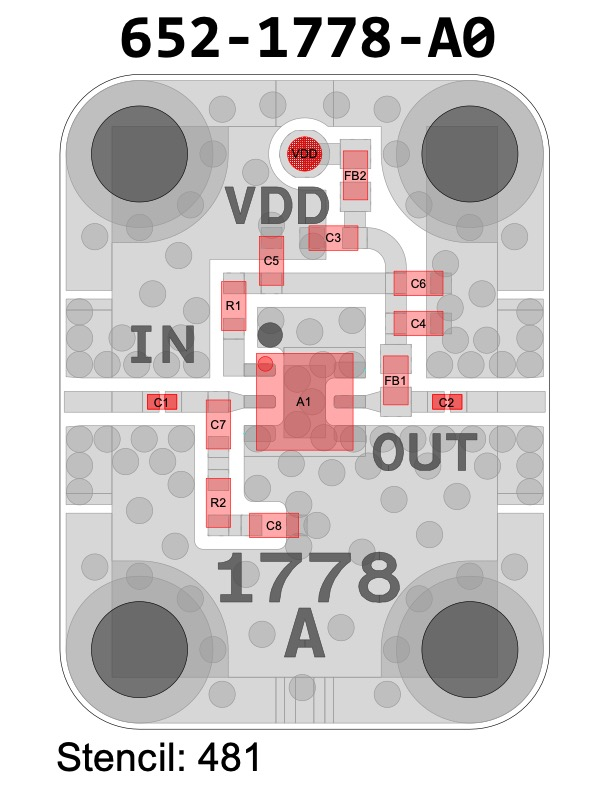

Amplifier, HMC8413LP2FE [PCB: 1778]

Product Page

 N/A ADI

Spec Sheet

 N/A HMC8413LP2FE

Low Freq

 N/A 100 MHz

High Freq

 N/A 7000 MHz

Gain

 N/A 19.5 dB

NF

 N/A 1.9 dB

P1dB

 N/A 21.5 dBm

IP3

 N/A 35 dBm

Voltage

 N/A 5 V

Current

 N/A 100 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5V
Verify IDD ~100mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-D2N8-0304D
