XM-D2L9-0409C
XR-D2L9-0409C ROHS

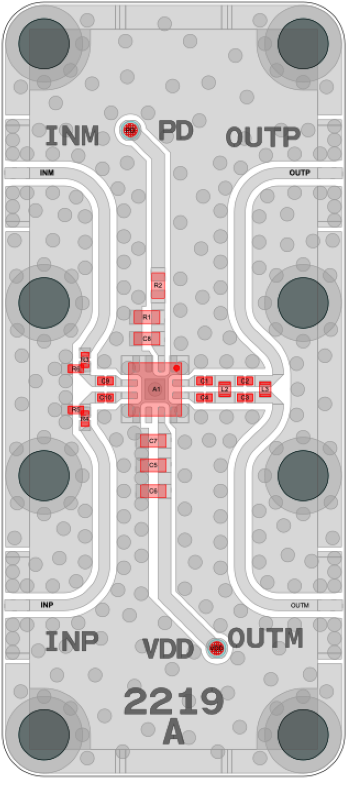

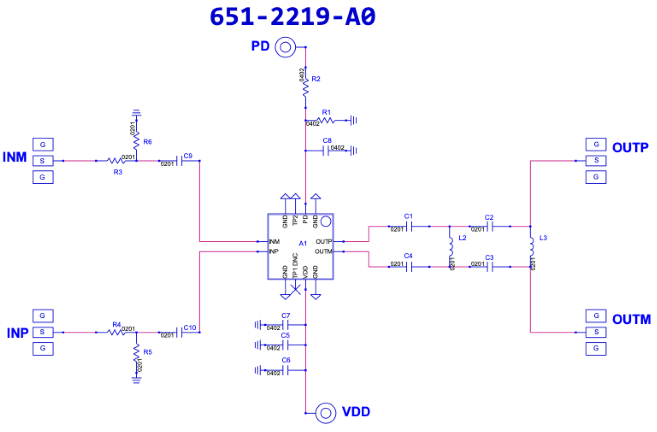

Amplifier, XTRF1208RPVR [PCB: 2219]
Product Page |
N/A Texas Instruments |
Spec Sheet |
N/A XTRF1208RPVR |
Low Freq |
N/A 10 MHz |
High Freq |
N/A 11000 MHz |
Gain |
N/A 16 dB |
NF |
N/A 6.8 dB |
P1dB |
N/A 15 dBm |
IP3 |
N/A 37 dBm |
Voltage |
N/A 3.3 V |
Current |
N/A 138 mA |
ALL_ASSET |
N/A 1093 |
Connector Series |
N/A SuperSMA |
Part Number |
N/A XR-D2L9-0409C |
