XM-D2G6-0404D
XR-D2G6-0404D ROHS

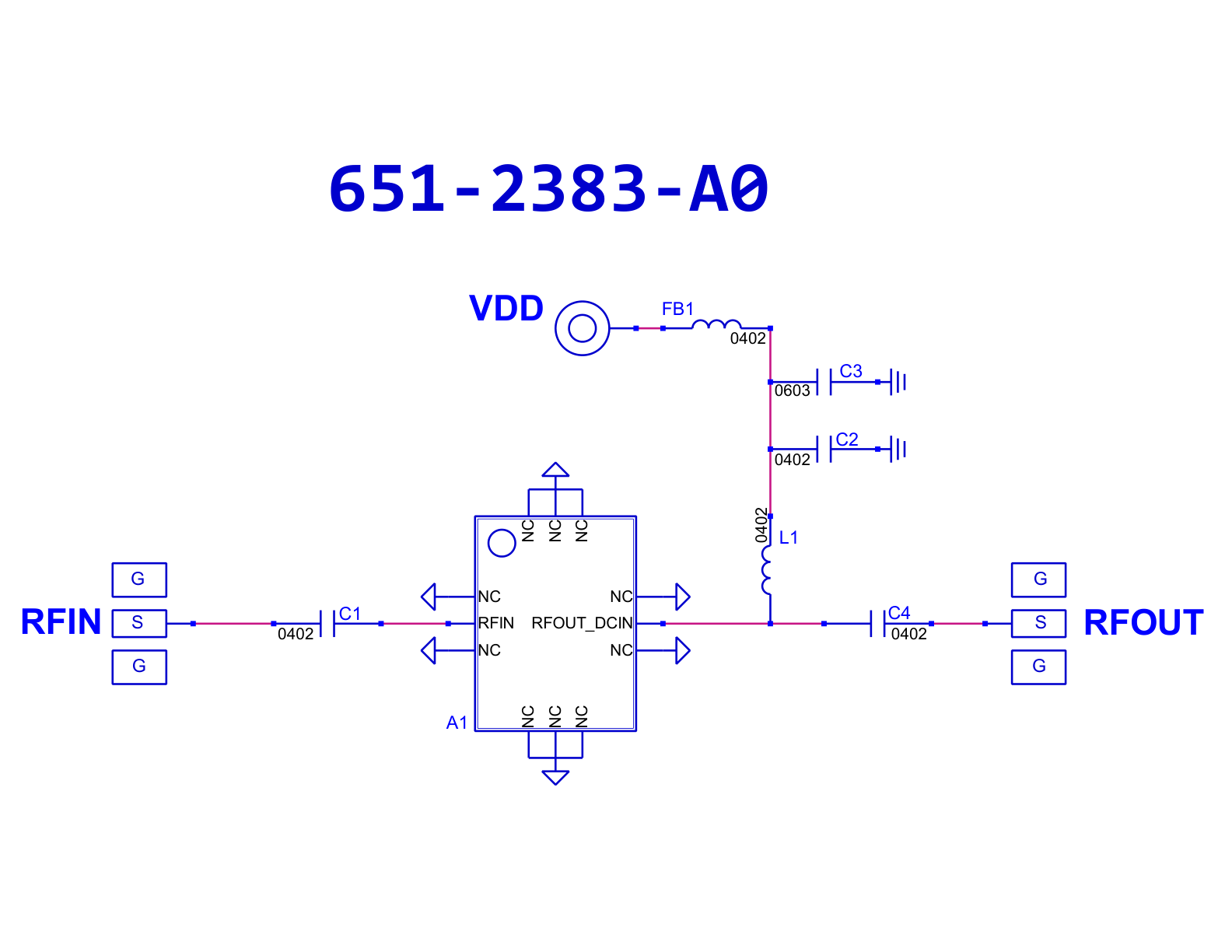

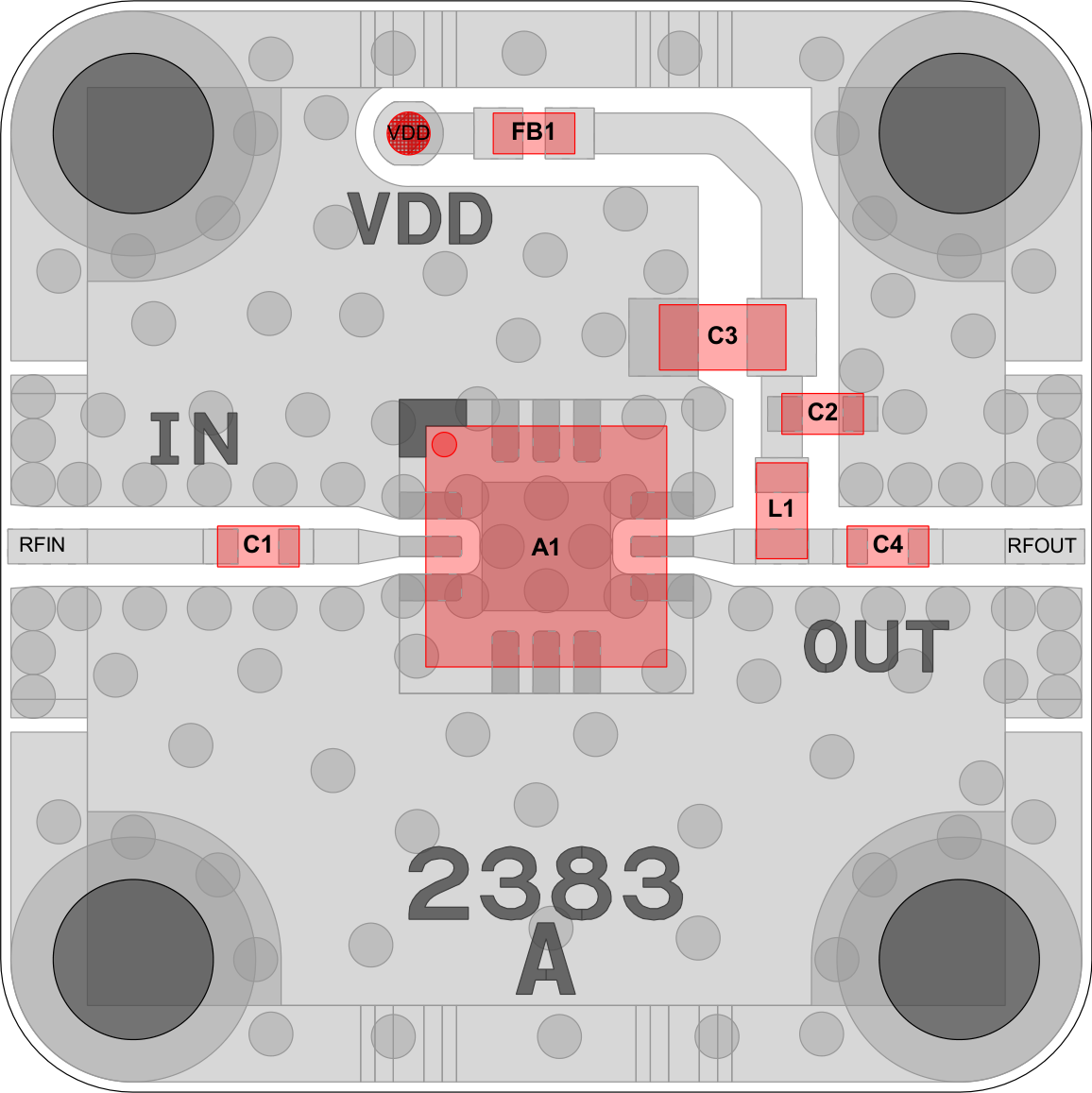

Amplifier, PMA3-63GLN+ [PCB: 2383]
Recommended Bias Controller: XM-A2J9-0404D-SP

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A PMA3-63GLN+

Low Freq

 N/A 1800 MHz

High Freq

 N/A 6000 MHz

Gain

 N/A 29.7 dB

NF

 N/A 0.6 dB

P1dB

 N/A 15.2 dBm

IP3

 N/A 28.6 dBm

Voltage

 N/A 5 V

Current

 N/A 69 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5V
Verify IDD ~69mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-D2G6-0404D
