XM-D2G4-0604D
XR-D2G4-0604D ROHS

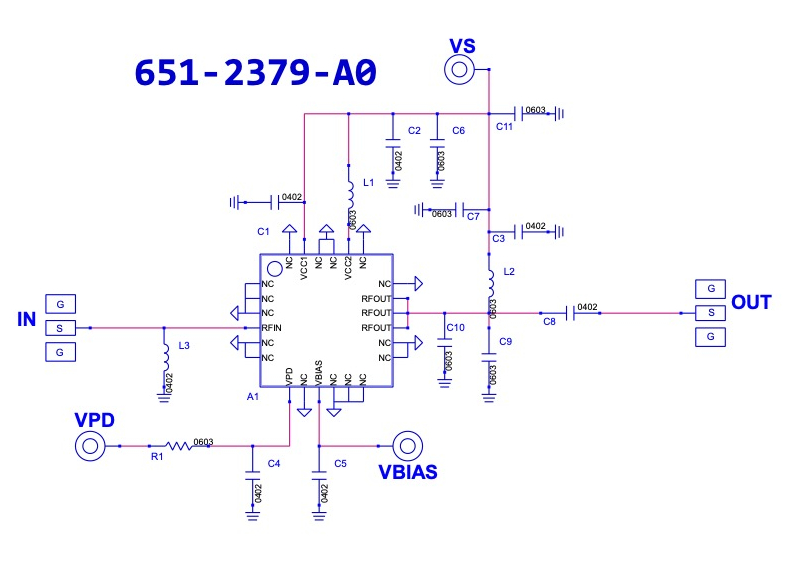

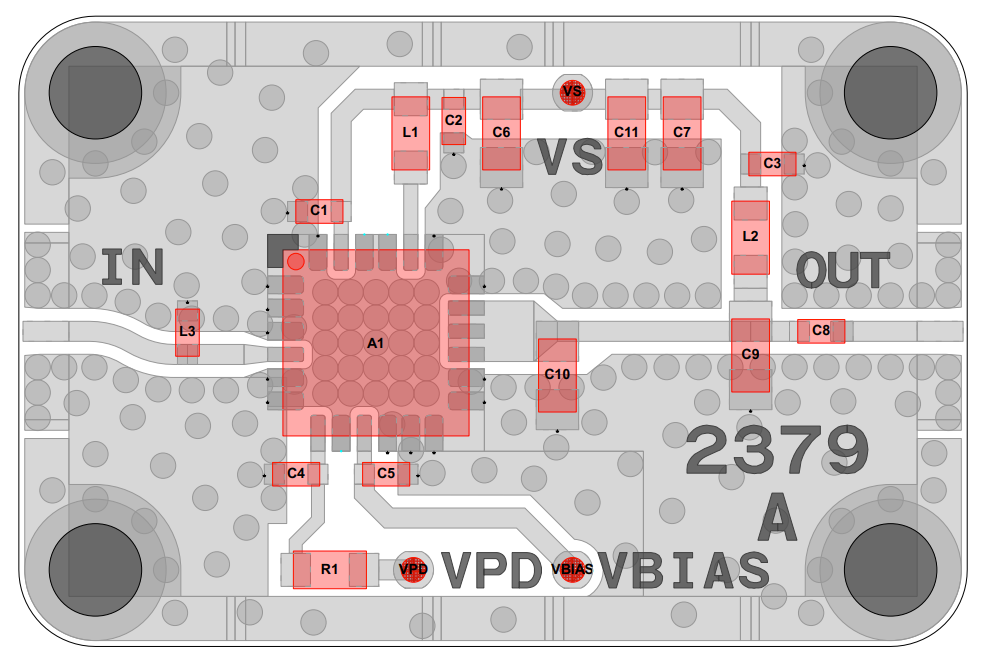

Amplifier, HMC409LP4E [PCB: 2379]
Recommended Bias Controller: XM-D2G5-0604D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A HMC409LP4E

Low Freq

 N/A 3300 MHz

High Freq

 N/A 3800 MHz

Gain

 N/A 31 dB

NF

 N/A 5.8 dB

P1dB

 N/A 30 dBm

IP3

 N/A 45 dBm

Voltage

 N/A 5 V

Current

 N/A 615 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VBIAS = +5V (@10mA)
2. Apply VPD = +5V (@4mA)
3. Apply VS = +5V (@615mA)
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VS to 0V
3. Adjust VPD to 0V
4. Adjust VBIAS to 0V

Part Number

 N/A XR-D2G4-0604D
