XM-D2F5-0404D
XR-D2F5-0404D ROHS

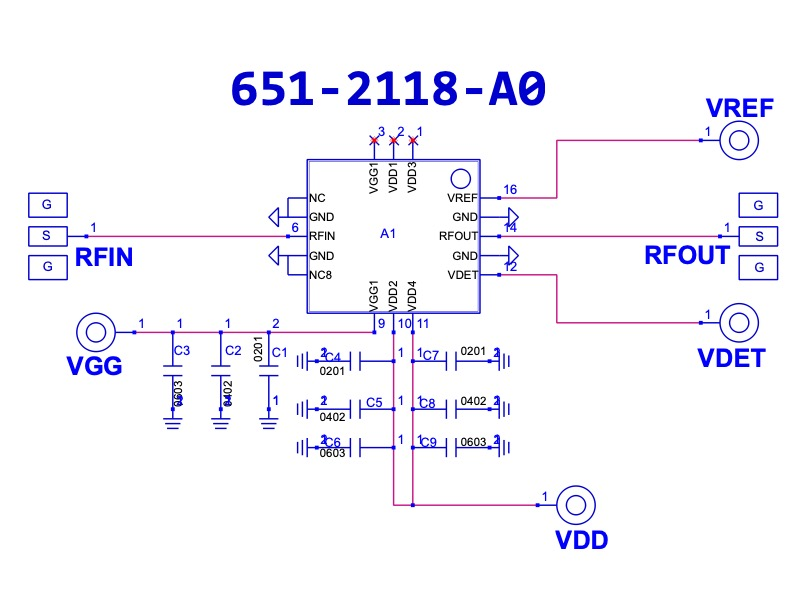

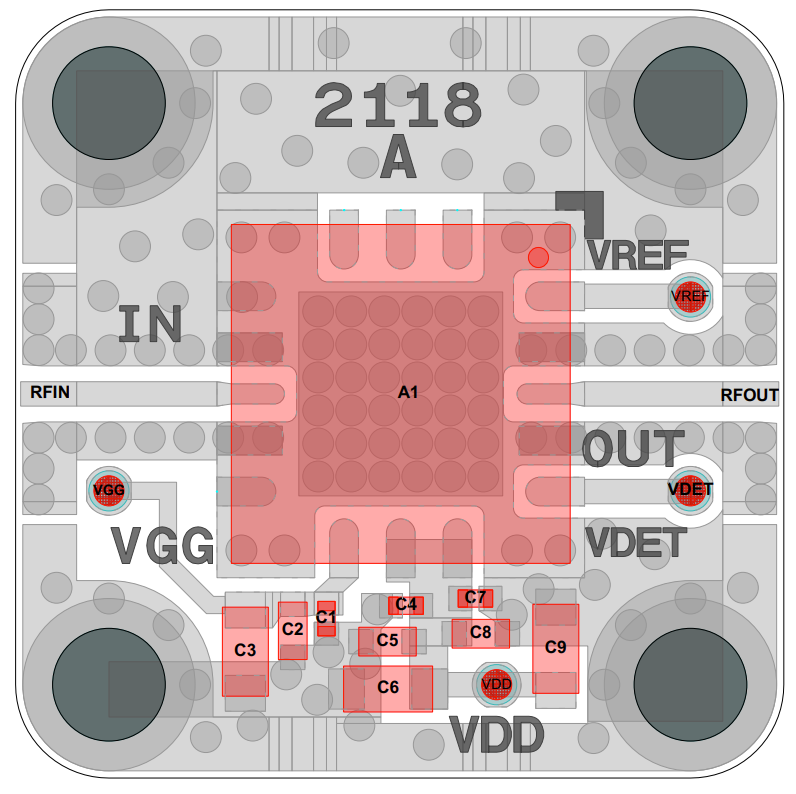

Amplifier, ADPA7002AEHZ [PCB: 2118]
Recommended Bias Controller: XM-D2G1-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADPA7002AEHZ

Low Freq

 N/A 18000 MHz

High Freq

 N/A 44000 MHz

Gain

 N/A 15 dB

NF

 N/A 11 dB

P1dB

 N/A 28 dBm

IP3

 N/A 38 dBm

Voltage

 N/A 5 V

Current

 N/A 700 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -1.5V
2. Apply VD = +5V
3. Adjust VG more positive until IDQ reaches 700mA
Note: -0.67V typ.
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG to -1.5V
3. Adjust VD to 0V
4. Adjust VG to 0V

Part Number

 N/A XR-D2F5-0404D
