XM-D2F1-0404D
XR-D2F1-0404D ROHS

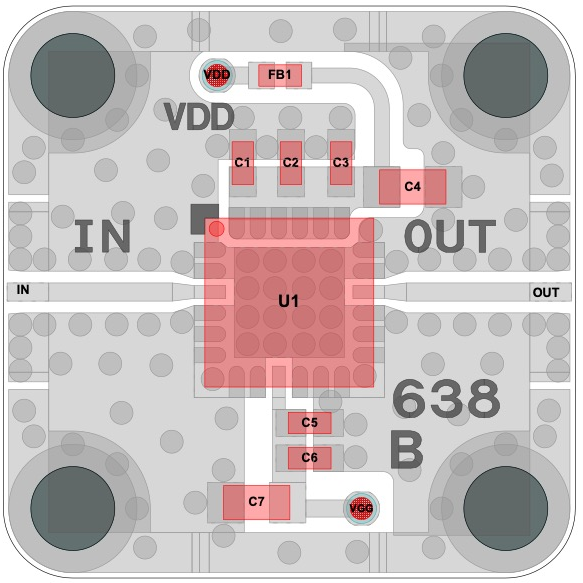

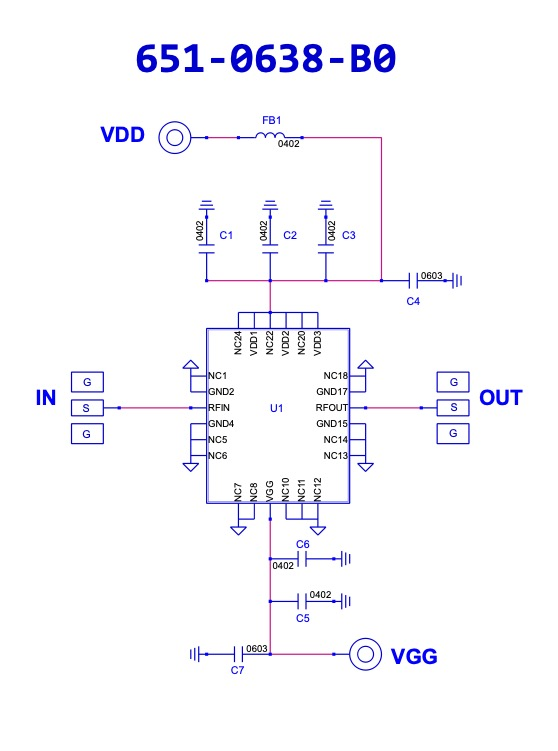

Amplifier, CMD291P4 [PCB: 0638]
Recommended Bias Controller: XM-D2F2-0404D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD291P4

Low Freq

 N/A 16000 MHz

High Freq

 N/A 24000 MHz

Gain

 N/A 23 dB

NF

 N/A 5 dB

P1dB

 N/A 25.5 dBm

IP3

 N/A 31.5 dBm

Voltage

 N/A 3 V

Current

 N/A 250 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -2V
2. Apply VD = +5V
3. Adjust VG more positive until IDQ reaches 250mA
Note: -0.5V typ.
4. Apply the RF input signal

Note: RF power can be applied at any point.

Power-down Sequence
1. Turn off the RF input signal
3. Adjust VD to 0V
4. Adjust VG to 0V

Part Number

 N/A XR-D2F1-0404D
