XM-D2D7-0404D
XR-D2D7-0404D ROHS

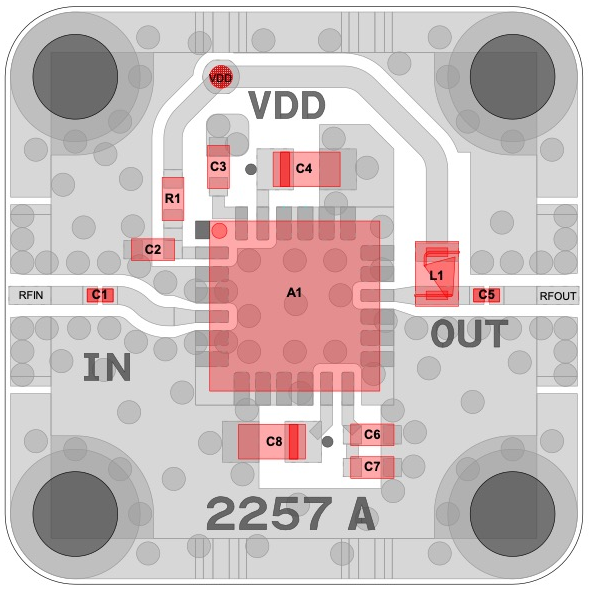

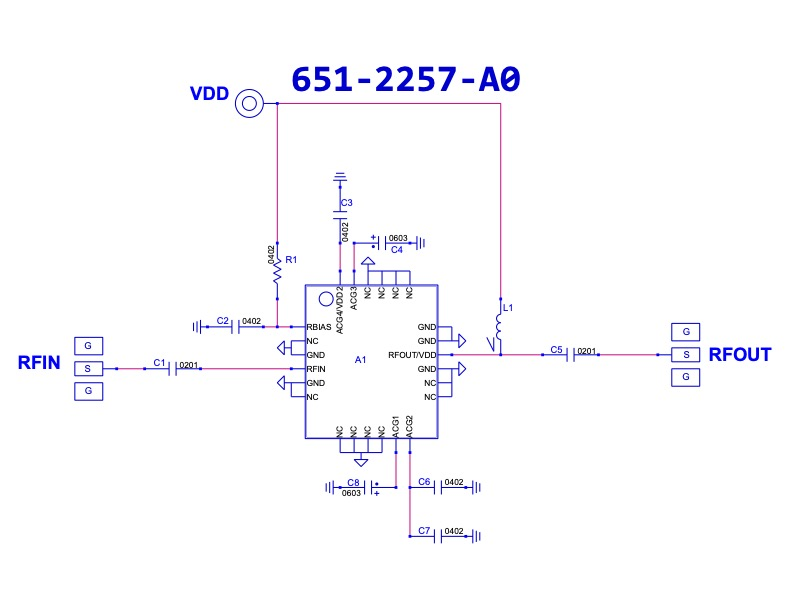

Amplifier, ADL9005ACPZN [PCB: 2257]
Recommended Bias Controller: XM-A2J9-0404D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A ADL9005ACPZN

Low Freq

 N/A 10 MHz

High Freq

 N/A 26500 MHz

Gain

 N/A 17.5 dB

NF

 N/A 2.5 dB

P1dB

 N/A 13.5 dBm

IP3

 N/A 26 dBm

Voltage

 N/A 3 V

Current

 N/A 80 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5V
Verify IDD ~80mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VDD to 0V

Part Number

 N/A XR-D2D7-0404D
