XM-D2D1-0404D
XR-D2D1-0404D ROHS

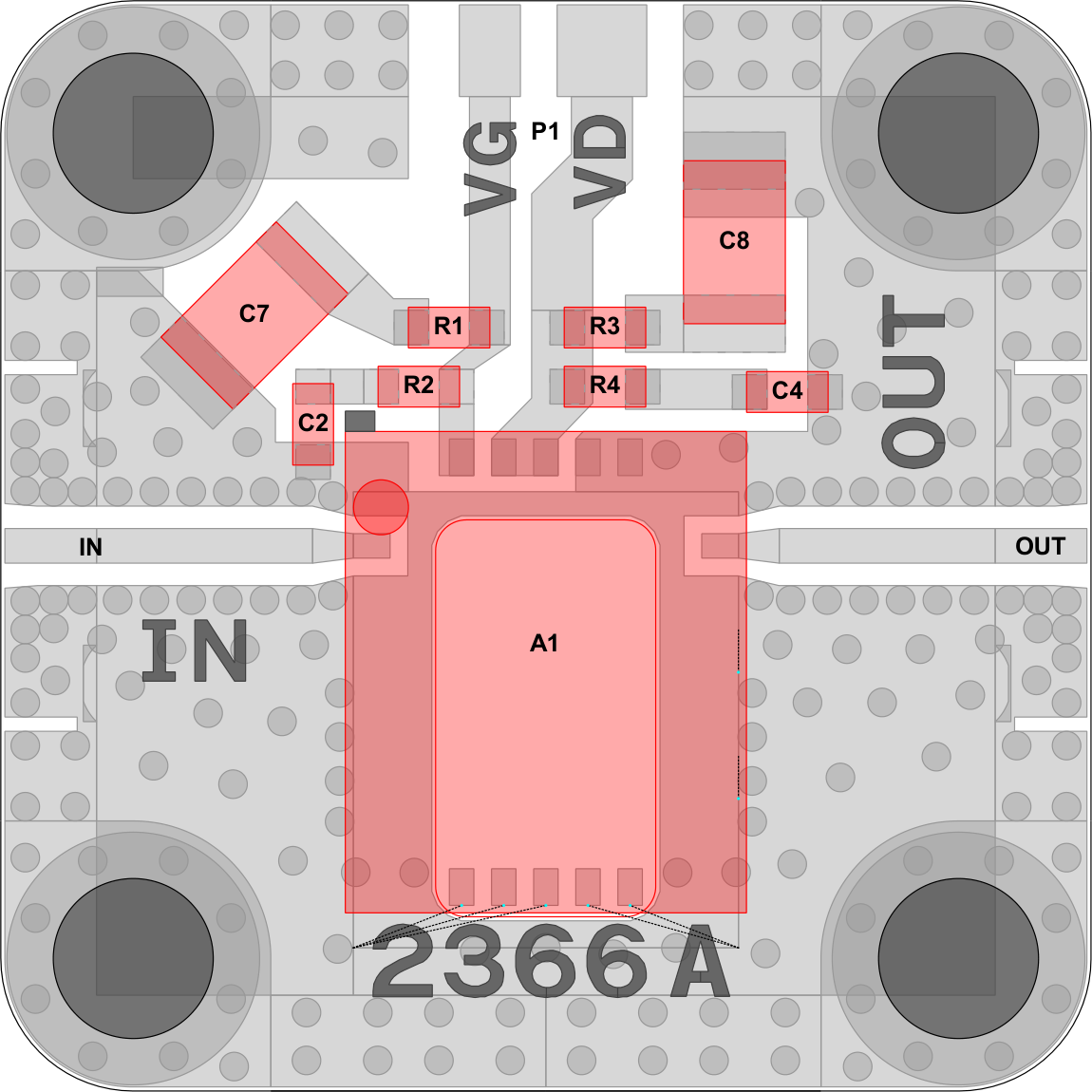

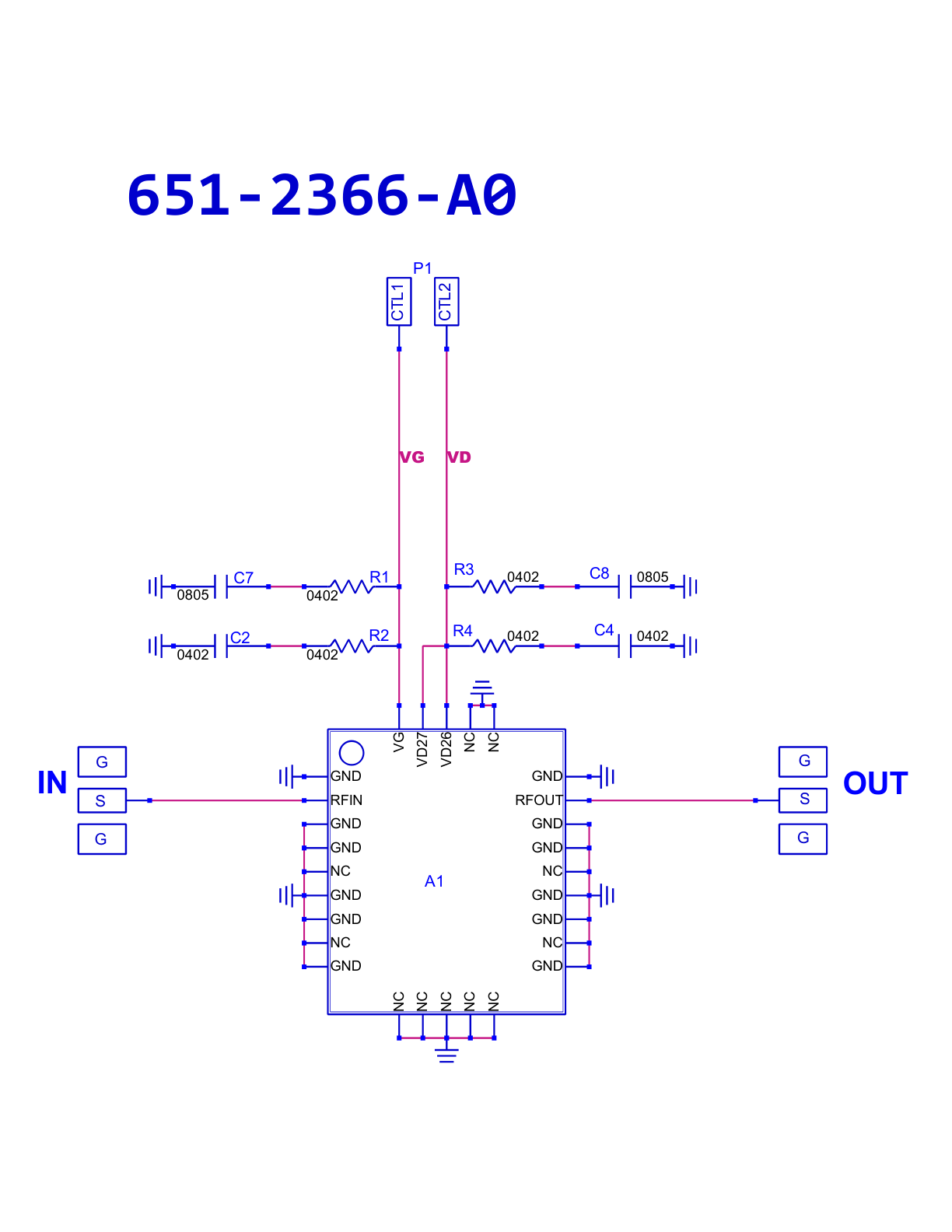

Amplifier, QPA1003P [PCB: 2366]

Product Page

 N/A Qorvo

Spec Sheet

 N/A QPA1003P

Low Freq

 N/A 1000 MHz

High Freq

 N/A 8000 MHz

Gain

 N/A 30 dB

Voltage

 N/A 28 V

Current

 N/A 650 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Set ID limit to 1.3 A, IG limit to 10 mA
2. Apply −5 V to VG
3. Apply +28 V to VD; ensure IDQ is approx. 0 mA
4. Adjust VG more positive until IDQ = 650 mA
5. Turn on RF supply

Power-down Sequence
1. Turn off RF supply
2. Reduce VG to −5 V; ensure IDQ is approx. 0 mA
3. Set VD to 0 V
4. Turn off VD supply
5. Turn off VG supply

Part Number

 N/A XR-D2D1-0404D
