XM-D2B4-0404D
XR-D2B4-0404D ROHS

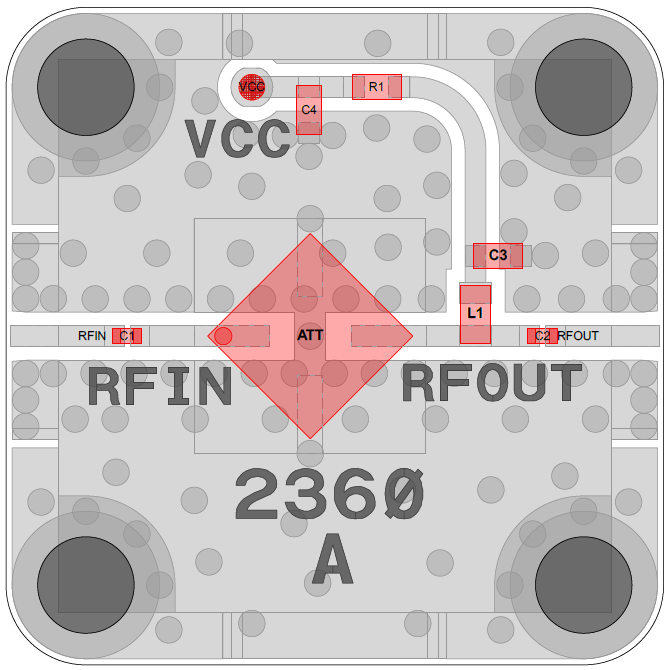

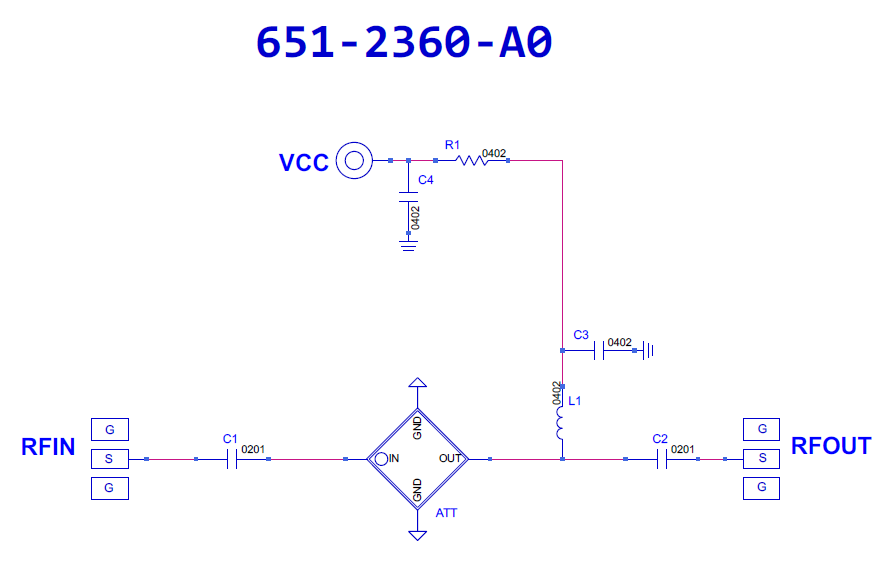

Amplifier, LEE-29+ [PCB: 2360]
Recommended Bias Controller: XM-A2J9-0404D-SP

Product Page

 N/A Mini-Circuits

Spec Sheet

 N/A LEE-29+

Low Freq

 N/A 0 MHz

High Freq

 N/A 8000 MHz

Gain

 N/A 14 dB

NF

 N/A 5.5 dB

P1dB

 N/A 11.5 dBm

IP3

 N/A 25.5 dBm

Voltage

 N/A 3.3 V

Current

 N/A 40 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VCC = +5V
Verify ICC ~40mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust ICC to 0V

Part Number

 N/A XR-D2B4-0404D
