XM-D284-0409C-01
XR-D284-0409C-01 ROHS

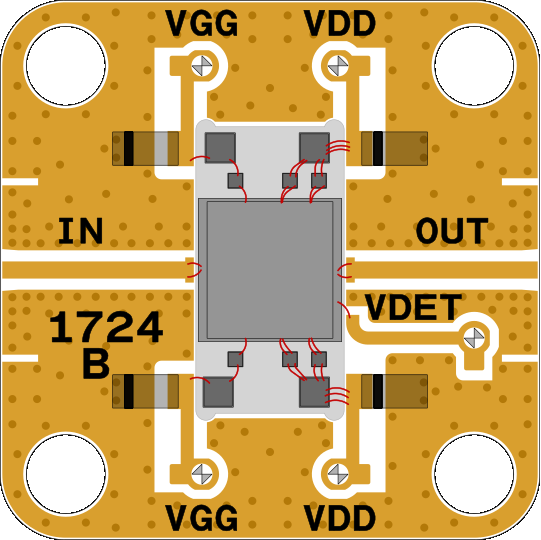

Amplifier, ADPA7008CHIP [PCB: 1724]
Connectorized Housing
Included Bias Controller: XM-D285-0404D

Product Page

 N/A ADI

Spec Sheet

 N/A ADPA7008CHIP

Low Freq

 N/A 20000 MHz

High Freq

 N/A 54000 MHz

Gain

 N/A 18 dB

NF

 N/A 7.5 dB

P1dB

 N/A 30.5 dBm

IP3

 N/A 38 dBm

Voltage

 N/A 4 V

Current

 N/A 1500 mA

Connector Series

 N/A 1.85mm

Bias Instruction

 N/A

Power-up Sequence
1. Apply +VIN = +6.12V exact @1.65A
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust +VIN to 0V

Part Number

 N/A XR-D284-0409C-01
