XM-D248-0404D
XR-D248-0404D ROHS

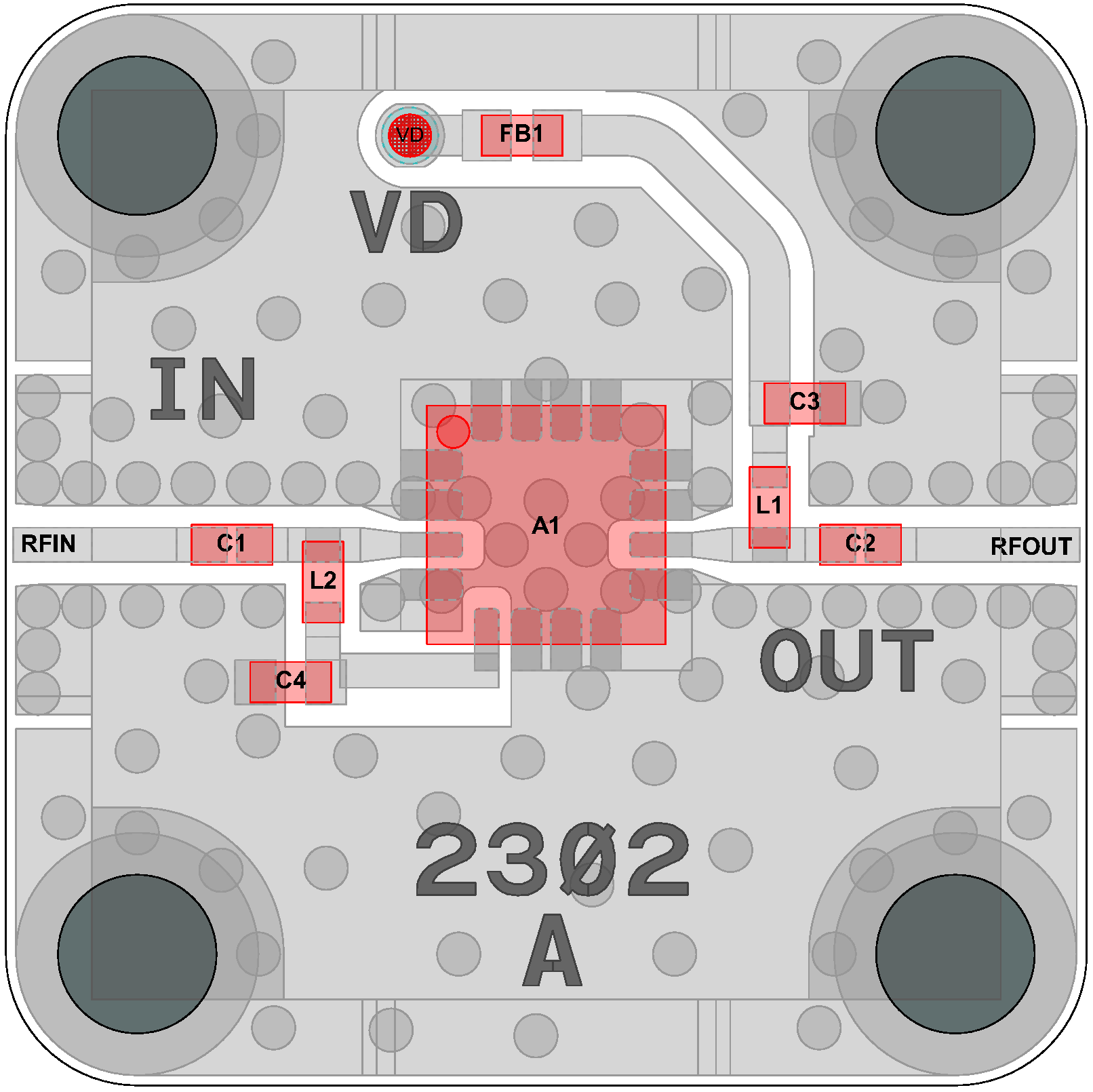

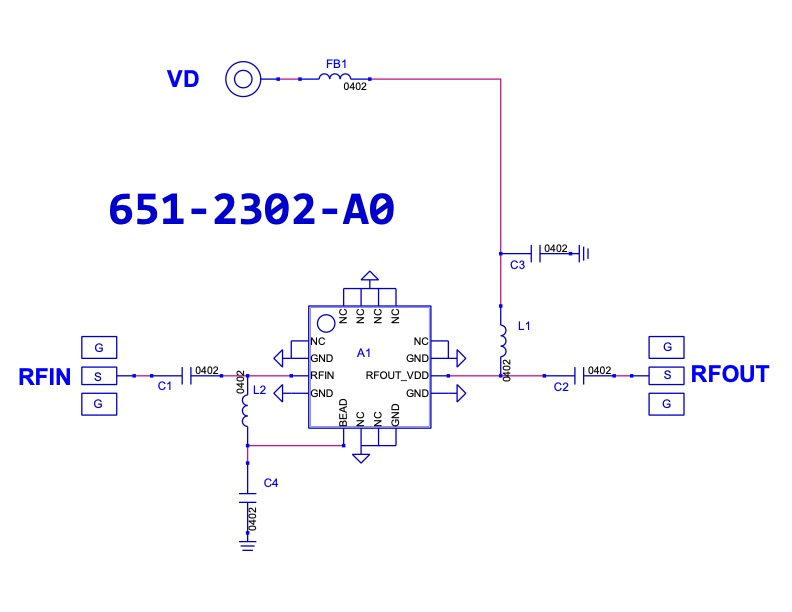

Amplifier, AM1164-1 [PCB: 2302]
Recommended Bias Controller: XM-A2J9-0404D-SP

Product Page

 N/A Atlanta Micro

Spec Sheet

 N/A AM1164-1

Low Freq

 N/A 0 MHz

High Freq

 N/A 8000 MHz

Gain

 N/A 21 dB

NF

 N/A 1.5 dB

P1dB

 N/A 17 dBm

IP3

 N/A 33 dBm

Voltage

 N/A 5 V

Current

 N/A 85 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5V
Verify IDD ~85mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VDD to 0V

Part Number

 N/A XR-D248-0404D
