XM-D246-0304D
XR-D246-0304D ROHS

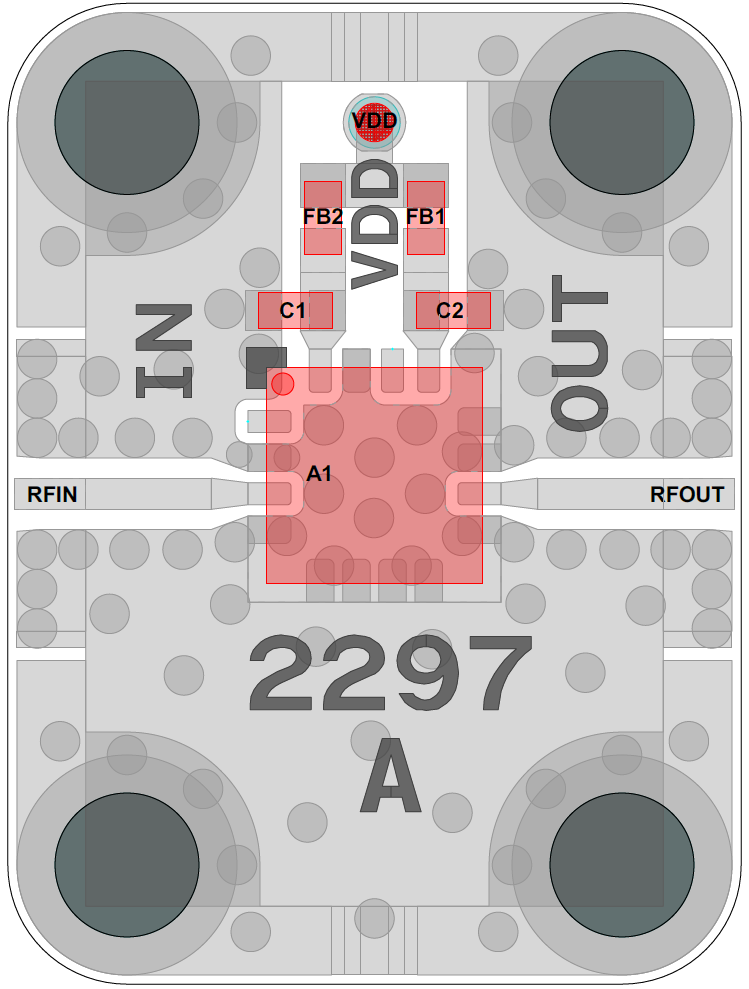

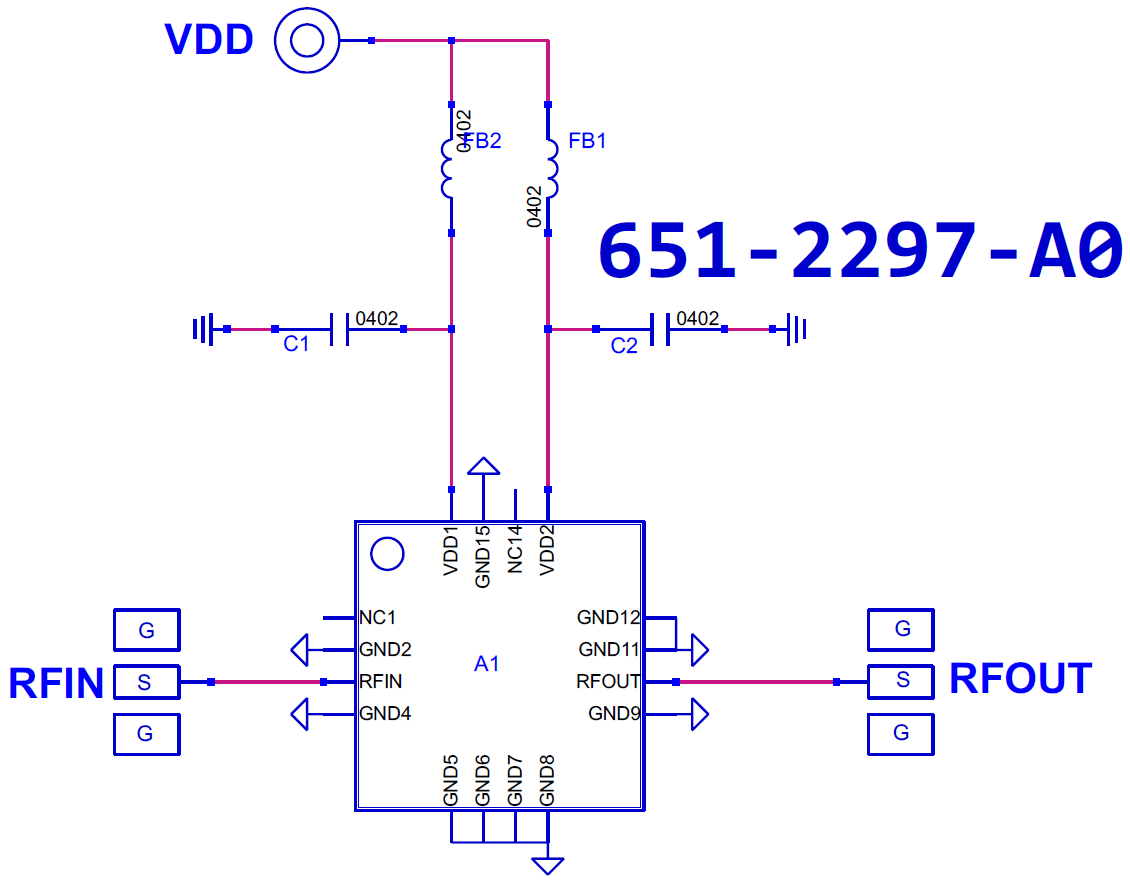

Amplifier, AM1053 [PCB: 2297]
Recommended Bias Controller: XM-D254-0304D-SP

Product Page

 N/A Atlanta Micro

Spec Sheet

 N/A AM1053

Low Freq

 N/A 5000 MHz

High Freq

 N/A 20000 MHz

Gain

 N/A 20 dB

NF

 N/A 2.5 dB

P1dB

 N/A 16 dBm

IP3

 N/A 25 dBm

Voltage

 N/A 3.3 V

Current

 N/A 93 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +3.3V
Verify IDD ~93mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VDD to 0V

Part Number

 N/A XR-D246-0304D
