XM-D229-0505D
XR-D229-0505D ROHS

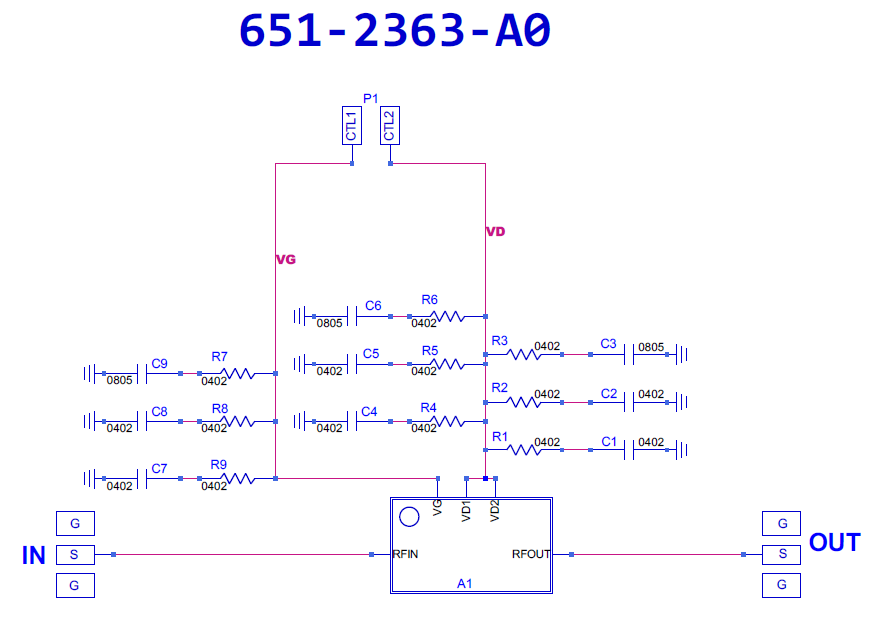

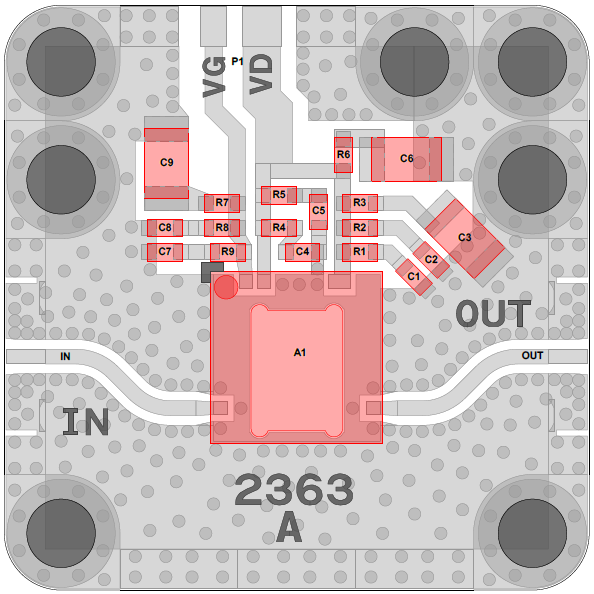

Amplifier, QPA2962 [PCB: 2363]
Recommended Bias Controller: XM-D242-0505D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A QPA2962

Low Freq

 N/A 2000 MHz

High Freq

 N/A 20000 MHz

Gain

 N/A 19 dB

Voltage

 N/A 22 V

Current

 N/A 1068 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -4V
2. Apply VD = +22V
3. Adjust VG more positive until IDQ reaches 1680mA
Note: VG1 ~-1.2V to -2.5V
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG to -4V
3. Adjust VD to 0V
4. Adjust VG to 0V

Part Number

 N/A XR-D229-0505D
