XM-D1Y8-0404D
XR-D1Y8-0404D ROHS

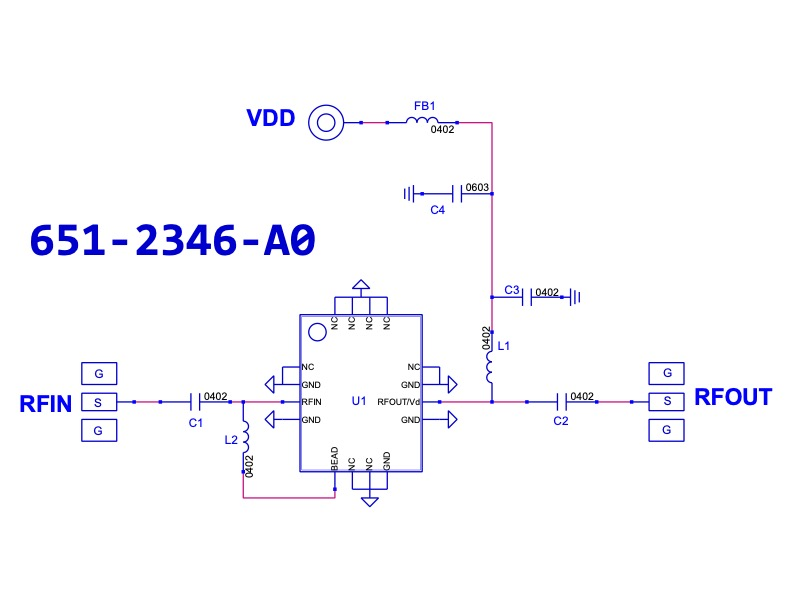

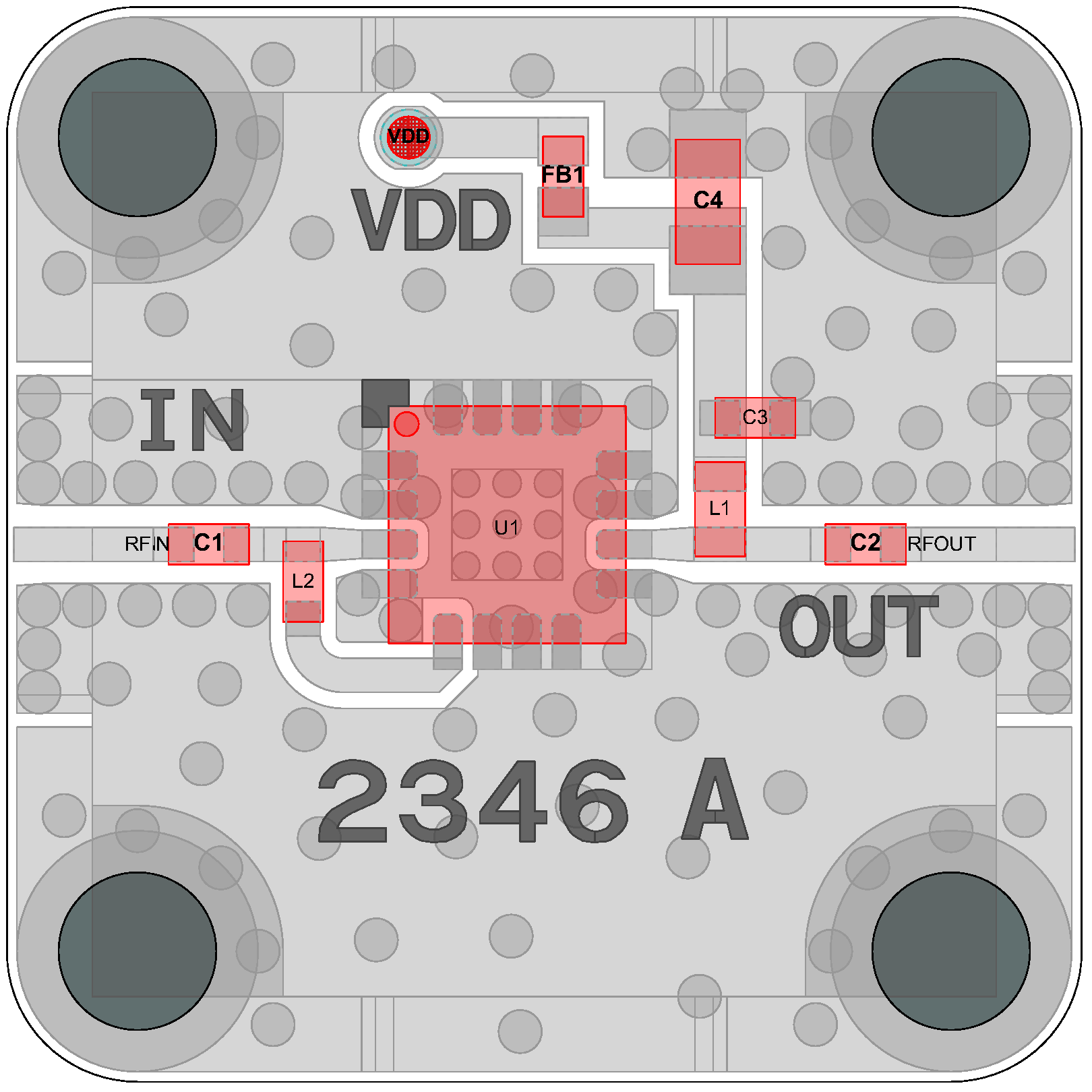

Amplifier, AM1084-1 [PCB: 2346]
Recommended Bias Controller: XM-A2J9-0404D-SP

Product Page

 N/A Atlanta Micro

Spec Sheet

 N/A AM1084-1

Low Freq

 N/A 0 MHz

High Freq

 N/A 6000 MHz

Gain

 N/A 16 dB

NF

 N/A 2.3 dB

P1dB

 N/A 21 dBm

IP3

 N/A 37 dBm

Voltage

 N/A 5 V

Current

 N/A 112 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5V
Verify IDD ~112mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VDD to 0V

Part Number

 N/A XR-D1Y8-0404D
