XM-D1U1-0404D
XR-D1U1-0404D ROHS

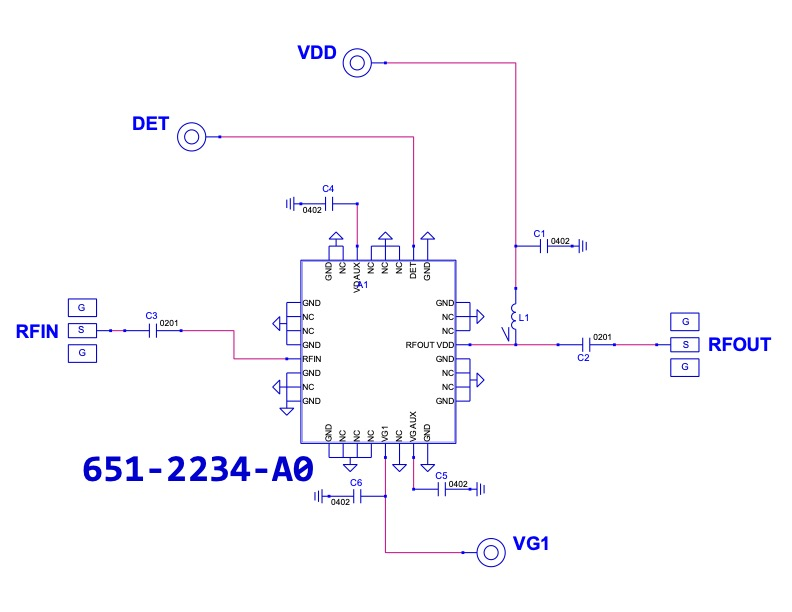

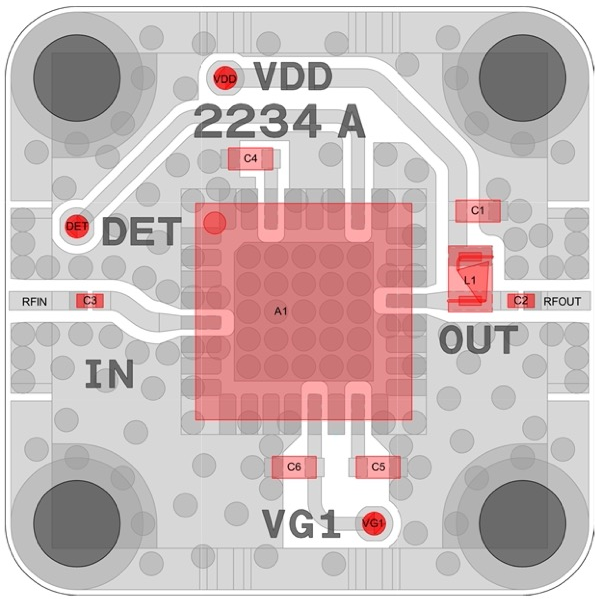

Amplifier, MAAP-011327 [PCB: 2234]
Recommended Bias Controller: XM-D1U2-0404D-SP

Product Page

 N/A Macom

Spec Sheet

 N/A MAAP-011327

Low Freq

 N/A 1 MHz

High Freq

 N/A 22000 MHz

Gain

 N/A 13.5 dB

NF

 N/A 3.5 dB

P1dB

 N/A 28.5 dBm

IP3

 N/A 47 dBm

Voltage

 N/A 10 V

Current

 N/A 500 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG1 = -1.5V
2. Apply VDD = +10V
3. Adjust VG1 more positive until IDSQ reaches 500mA
Note: Do not exceed +0V. -0.8V typ.
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG1 to -1.5V
3. Adjust VDD to 0V
4. Adjust VG1 to 0V

Part Number

 N/A XR-D1U1-0404D
