XM-D1M8-0404D
XR-D1M8-0404D ROHS

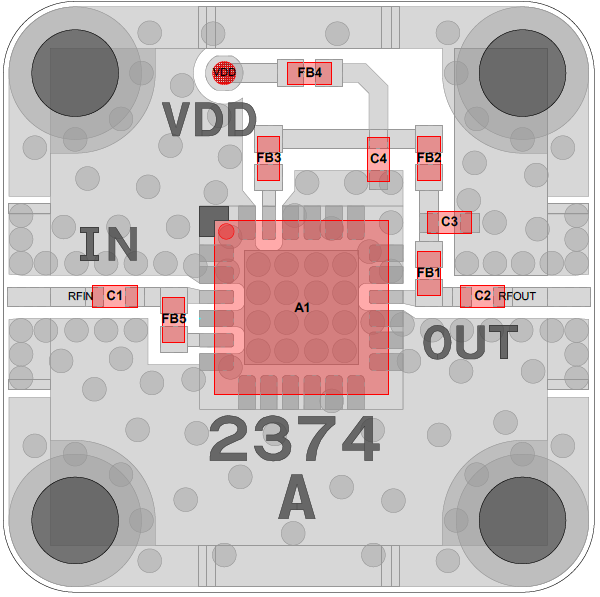

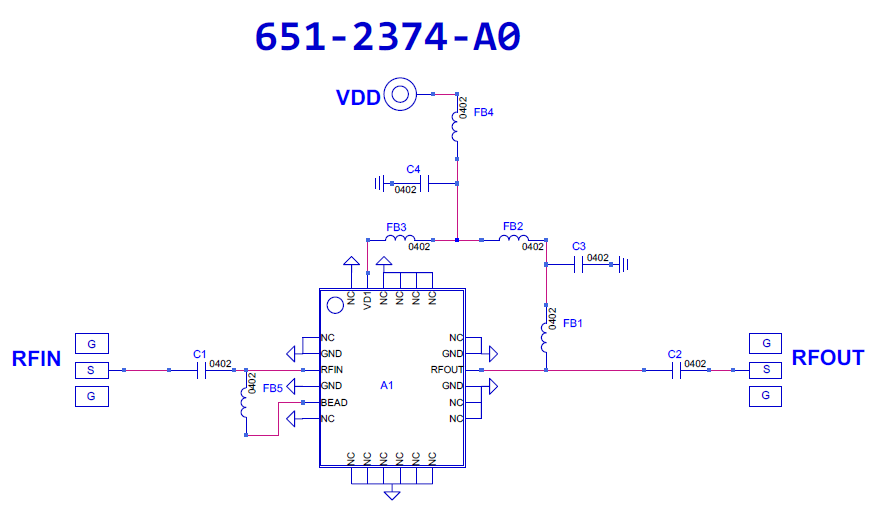

Amplifier, AM1127 [PCB: 2374]
Recommended Bias Controller: XM-A7U1-0404D-SP

Product Page

 N/A Atlanta Micro

Spec Sheet

 N/A AM1127

Low Freq

 N/A 20 MHz

High Freq

 N/A 6000 MHz

Gain

 N/A 19 dB

NF

 N/A 3.5 dB

P1dB

 N/A 16 dBm

IP3

 N/A 39 dBm

Voltage

 N/A 6 V

Current

 N/A 300 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +6V
Verify IDD ~300mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VDD to 0V

Part Number

 N/A XR-D1M8-0404D
