XM-D192-0404D
XR-D192-0404D ROHS

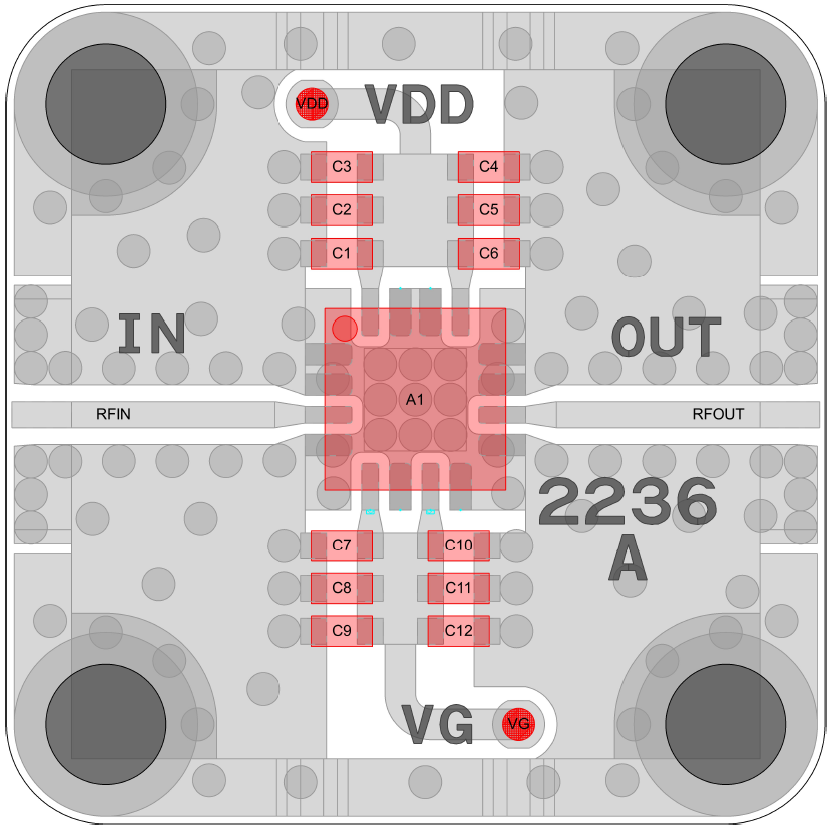

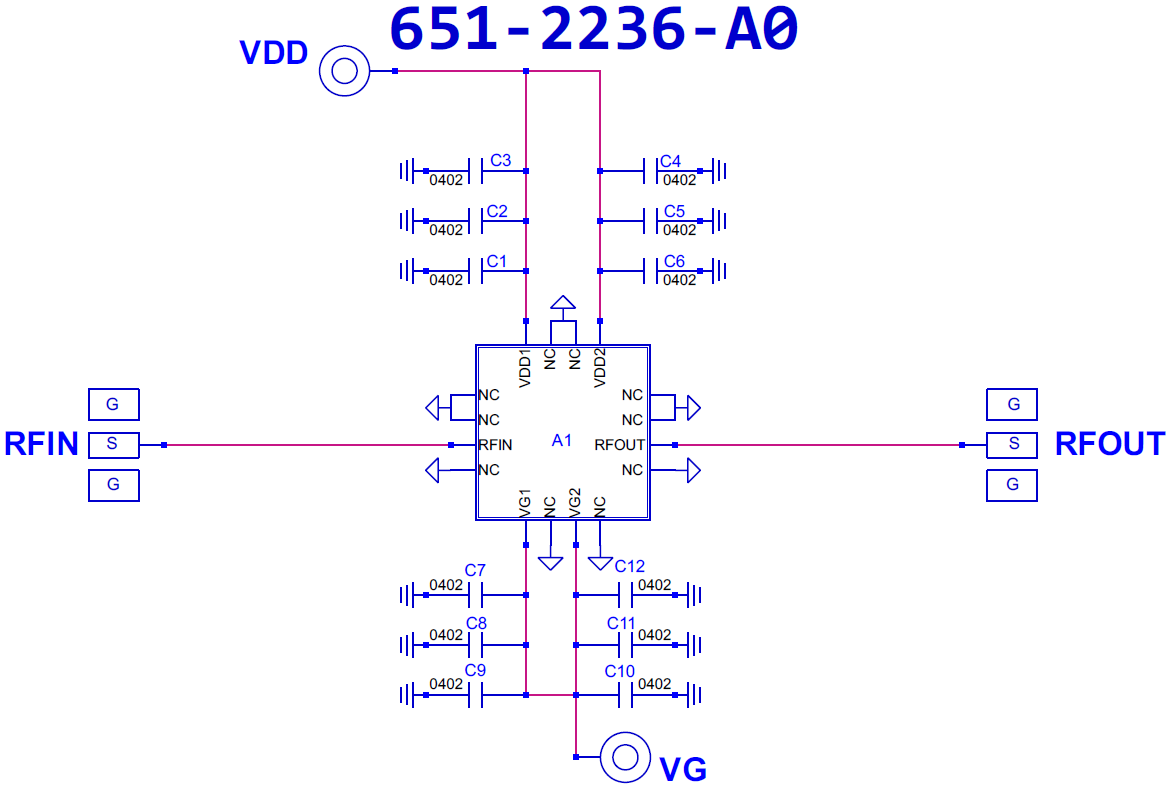

Amplifier, MAAL-010528 [PCB: 2236]
Recommended Bias Controller: XM-B5G7-0404D-SP

Product Page

 N/A Macom

Spec Sheet

 N/A MAAL-010528

Low Freq

 N/A 8000 MHz

High Freq

 N/A 12000 MHz

Gain

 N/A 20 dB

NF

 N/A 1.6 dB

P1dB

 N/A 14 dBm

IP3

 N/A 26 dBm

Voltage

 N/A 4 V

Current

 N/A 60 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -1V
2. Apply VDD = +4V
3. Adjust VG more positive until IDQ reaches 60mA
Note: Do not exceed +0.3V.
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG to -1V
3. Adjust VDD to 0V
4. Adjust VG to 0V

Part Number

 N/A XR-D192-0404D
