XM-D184-0404D
XR-D184-0404D ROHS

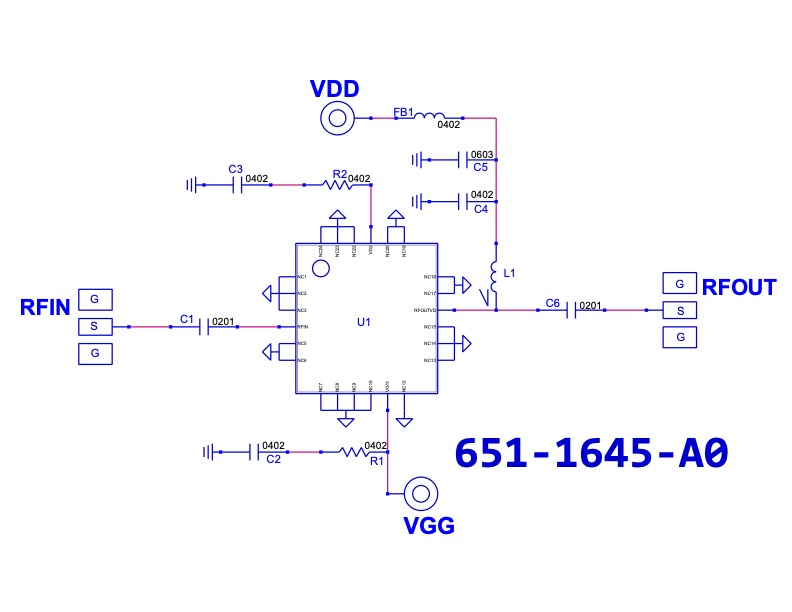

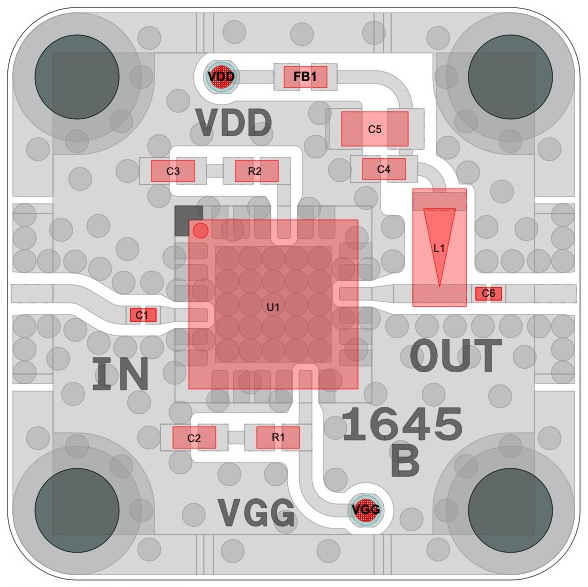

Amplifier, ADM-0026-5929SM [PCB: 1645]
Recommended Bias Controller: XM-C7R3-0404D-SP

Product Page

 N/A Marki Microwave

Spec Sheet

 N/A ADM-0026-5929SM

Low Freq

 N/A 0 MHz

High Freq

 N/A 26500 MHz

Gain

 N/A 13 dB

NF

 N/A 5.5 dB

P1dB

 N/A 15 dBm

IP3

 N/A 26 dBm

Voltage

 N/A 9 V

Current

 N/A 275 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -2V
2. Apply VD = +7V
3. Adjust VG more positive until drain current reaches 165mA
Note: Do not exceed 0V. -0.25V typ.
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG to -2V
3. Adjust VD to 0V
4. Adjust VG to 0V

Part Number

 N/A XR-D184-0404D
