XM-D171-0404D
XR-D171-0404D ROHS

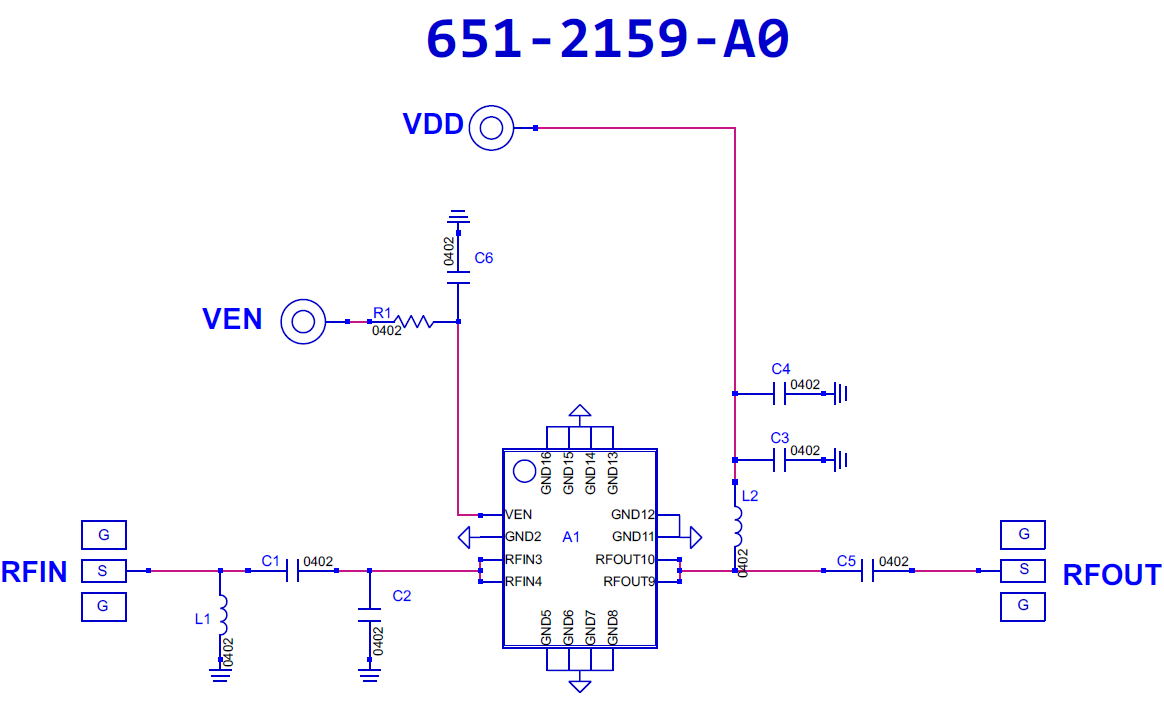

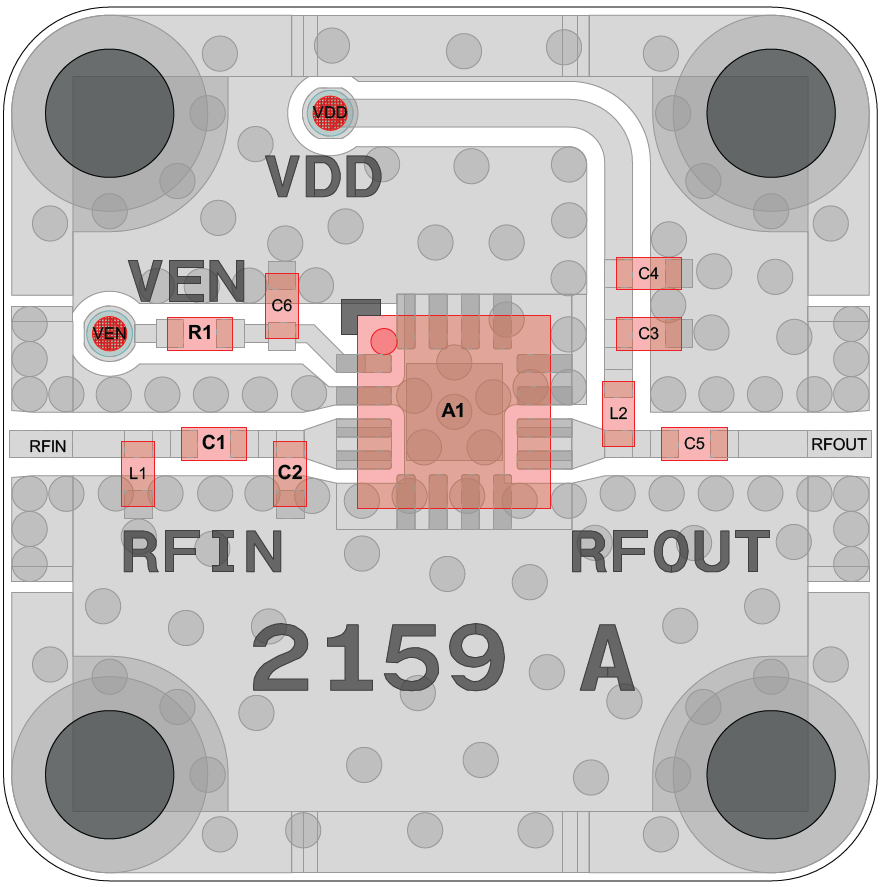

Amplifier, GRF5010 [PCB: 2159]
Recommended Bias Controller: XM-A4E3-0404D-SP

Product Page

 N/A Guerrilla RF

Spec Sheet

 N/A GRF5010

Low Freq

 N/A 50 MHz

High Freq

 N/A 6000 MHz

Gain

 N/A 17 dB

NF

 N/A 0.85 dB

P1dB

 N/A 28.5 dBm

IP3

 N/A 45 dBm

Voltage

 N/A 5 V

Current

 N/A 60 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. EN = +8V (ON @4.8mA)
2. Apply VDD = +8V
Verify IDD ~150mA
3. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust VDD to 0V
3. Adjust EN to 0V

Part Number

 N/A XR-D171-0404D
