XM-D136-0404D
XR-D136-0404D ROHS

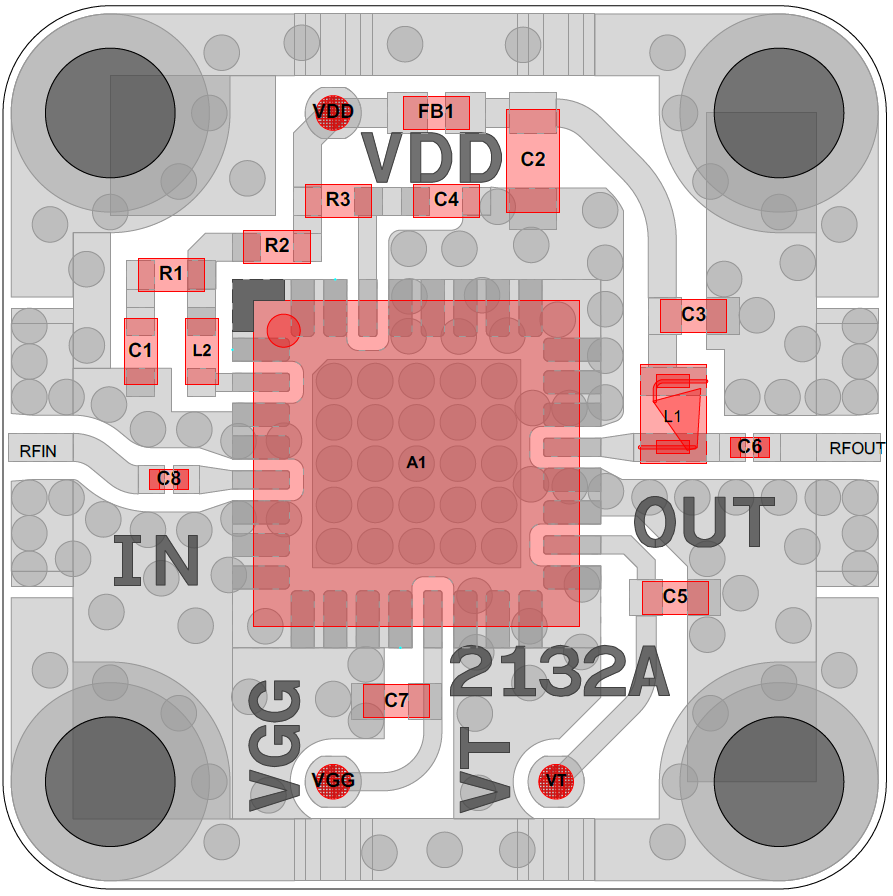

Amplifier, MAAL-011141 [PCB: 2132]
Recommended Bias Controller: XM-D137-0404D-SP

Product Page

 N/A Macom

Spec Sheet

 N/A MAAL-011141

Low Freq

 N/A 50 MHz

High Freq

 N/A 28000 MHz

Gain

 N/A 17.5 dB

NF

 N/A 1.4 dB

P1dB

 N/A 17 dBm

IP3

 N/A 27.5 dBm

Voltage

 N/A 6 V

Current

 N/A 75 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +6V
2. Apply VT = +5V @10mA
3. Adjust VGG more positive until IDSQ reaches ~75mA
Note: VGG ~ +0.7V.
4. Apply the RF input signal

Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to 0V
3. Adjust VT to 0V
3. Adjust VDD to 0V

Part Number

 N/A XR-D136-0404D
