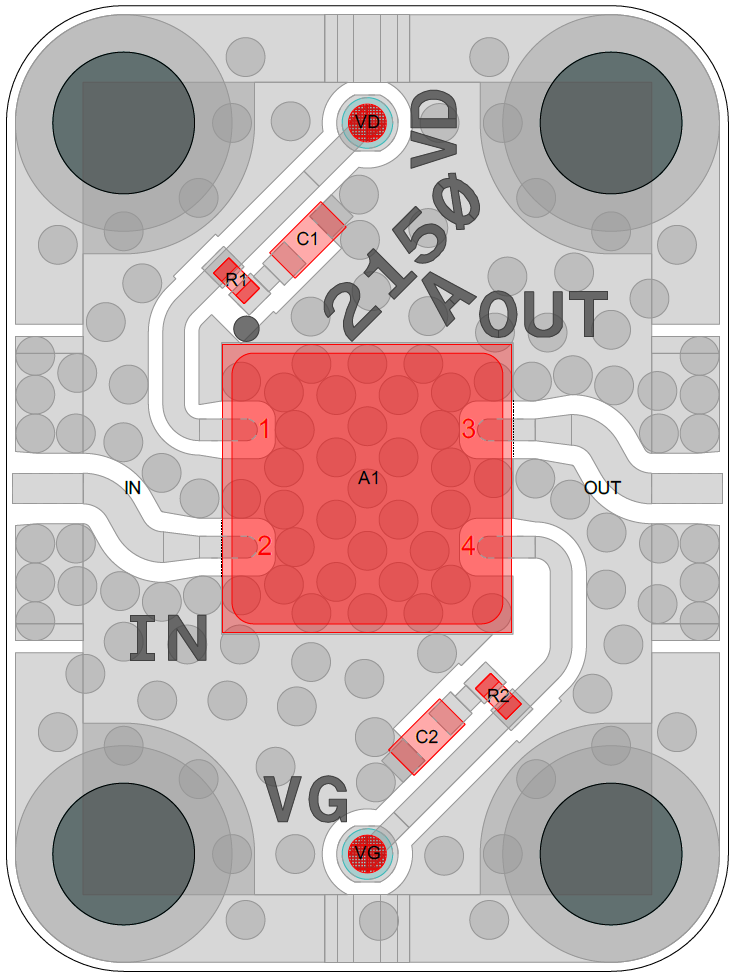

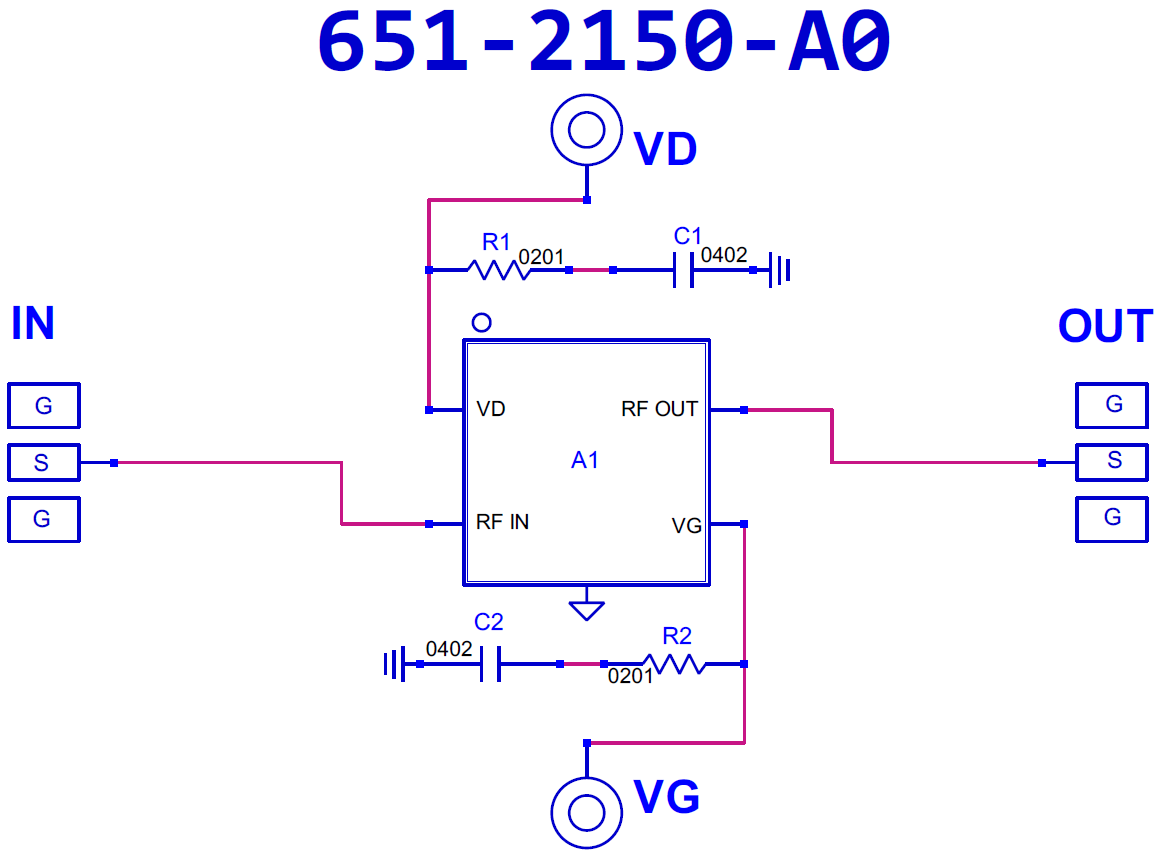

Amplifier, AMM-6702SM [PCB: 2150]

Product Page

 N/A Marki Microwave

Spec Sheet

 N/A AMM-6702SM

Low Freq

 N/A 20000 MHz

High Freq

 N/A 50000 MHz

Gain

 N/A 24 dB

NF

 N/A 6.5 dB

P1dB

 N/A 14.8 dBm

Voltage

 N/A 5 V

Current

 N/A 21 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = < -0.4V
2. Apply VD = +3V
3. Adjust VG more positive until drain current reaches 180mA
Note: Do not exceed -0.4V to -0.6V range. -0.5V typ.
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VD to 0V
3. Adjust VG to 0V

Part Number

 N/A XR-D133-0304D
