XM-D116-0511E-01
XR-D116-0511E-01 ROHS

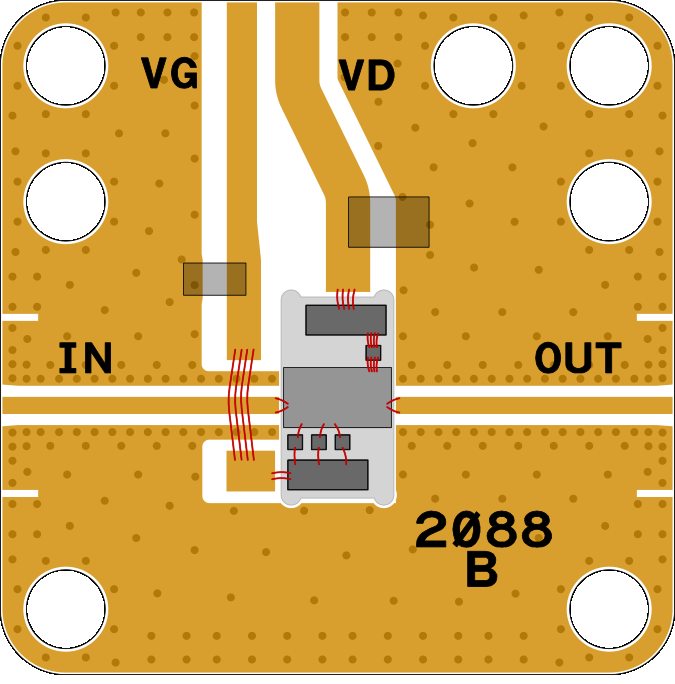

Amplifier, CMD262 [PCB: 2088]
Connectorized Housing

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD262

Low Freq

 N/A 26000 MHz

High Freq

 N/A 28000 MHz

Gain

 N/A 26 dB

P1dB

 N/A 37 dBm

IP3

 N/A 43 dBm

Voltage

 N/A 20 V

Current

 N/A 350 mA

Connector Series

 N/A SuperSMA

Bias Instruction

 N/A

Power-up Sequence
1. Apply +VIN = +28V fixed
2. Apply -VIN = -9V
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust -VIN to 0V
3. Adjust +VIN to 0V

Part Number

 N/A XR-D116-0511E-01
