XM-D116-0505D
XR-D116-0505D ROHS

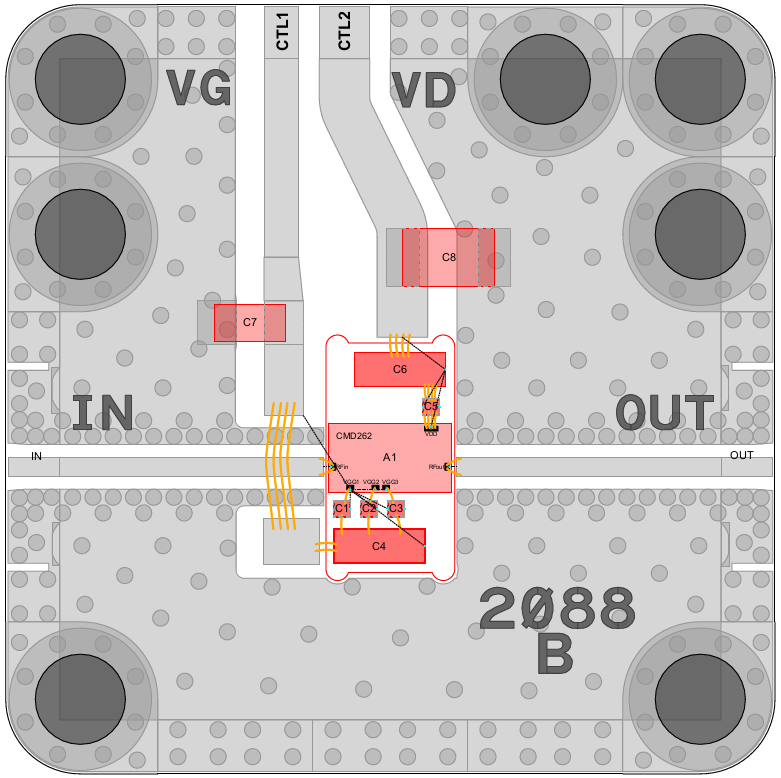

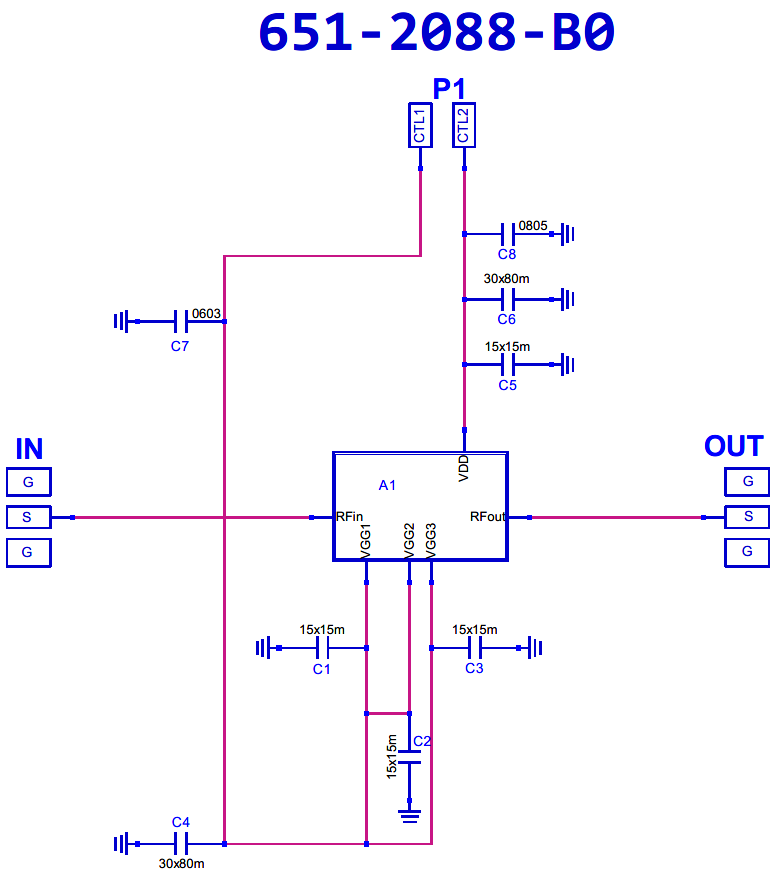

Amplifier, CMD262 [PCB: 2088]

Product Page

 N/A Qorvo

Spec Sheet

 N/A CMD262

Low Freq

 N/A 26000 MHz

High Freq

 N/A 28000 MHz

Gain

 N/A 26 dB

P1dB

 N/A 37 dBm

IP3

 N/A 43 dBm

Voltage

 N/A 20 V

Current

 N/A 350 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -6V
2. Apply VD = +28V
3. Adjust VG more positive until drain current reaches 350mA
Note: Do not exceed 0.0V
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VD to 0V
3. Adjust VG to 0V

Part Number

 N/A XR-D116-0505D
