XM-D113-0804D
XR-D113-0804D ROHS

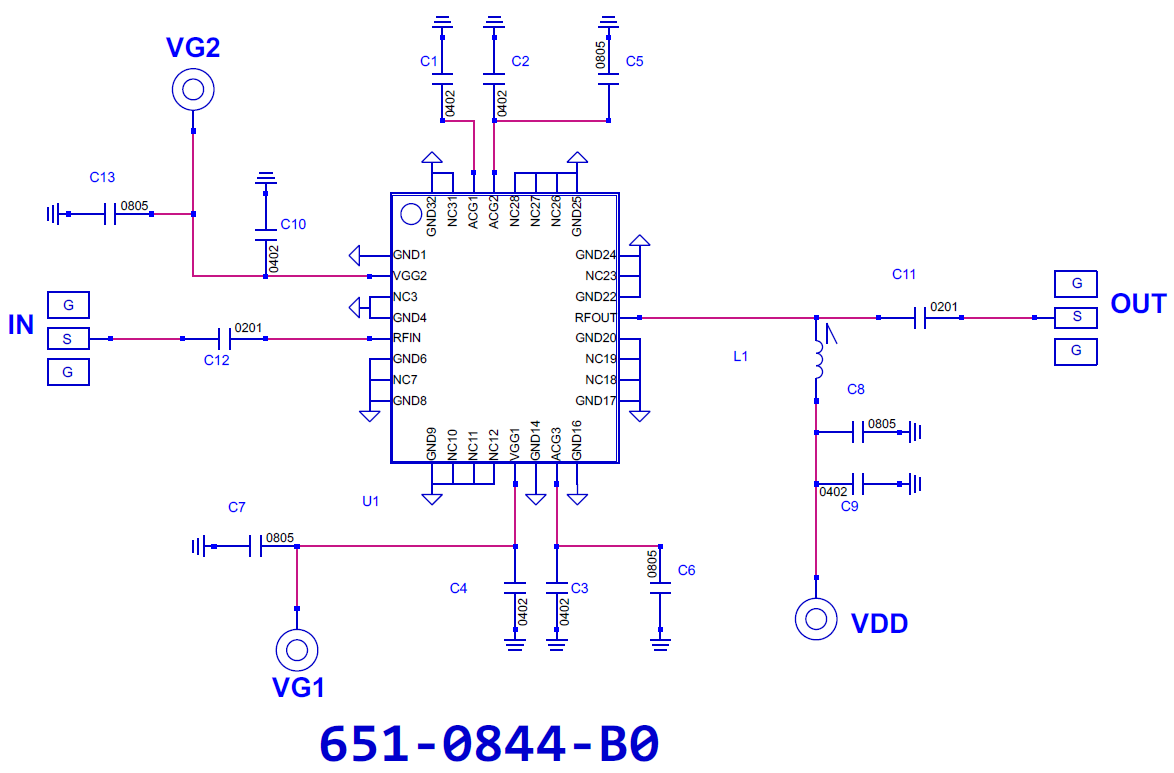

Amplifier, HMC637BPM5E [PCB: 0844]
Recommended Bias Controller: XM-C3W4-0804D-SP

Product Page

 N/A ADI

Spec Sheet

 N/A HMC637BPM5E

Low Freq

 N/A 500 MHz

High Freq

 N/A 7500 MHz

Gain

 N/A 15.5 dB

NF

 N/A 3.5 dB

P1dB

 N/A 28 dBm

IP3

 N/A 39 dBm

Voltage

 N/A 12 V

Current

 N/A 345 mA

Bias Instruction

 N/A

Note: Self-biased mode.
VG1 = GND for self bias mode.
VG2 = OPEN for self bias mode.

Power-up Sequence
1. Apply VDD = +12V
Verify IDD ~345mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-D113-0804D
