XM-C9R5-0304D
XR-C9R5-0304D ROHS

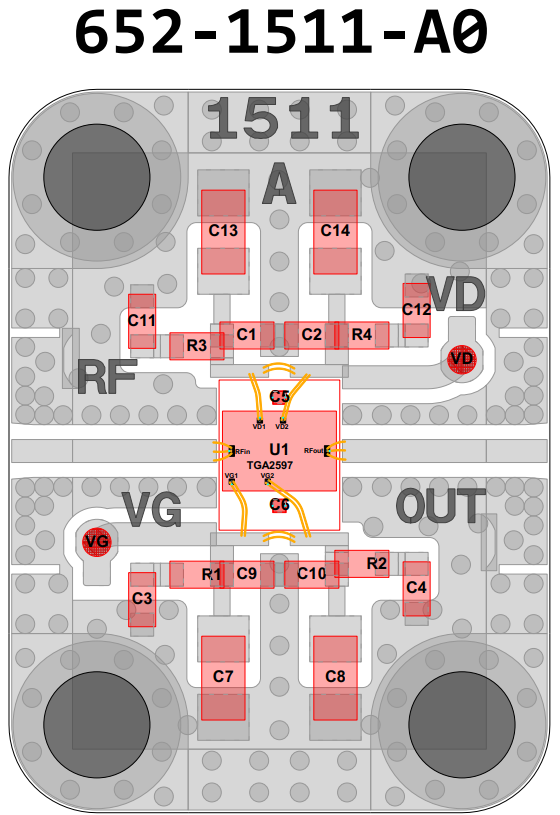

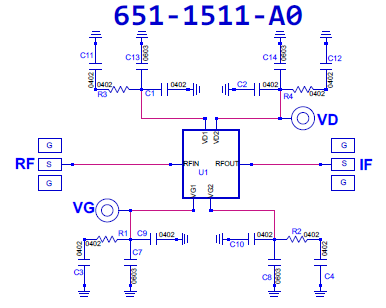

Amplifier, TGA2598 [PCB: 1511]

Product Page

 N/A Qorvo

Spec Sheet

 N/A TGA2598

Low Freq

 N/A 6000 MHz

High Freq

 N/A 12000 MHz

Gain

 N/A 21 dB

P1dB

 N/A 33 dBm

Voltage

 N/A 30 V

Current

 N/A 100 mA

ALL_ASSET

 N/A 1345P

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -5.0V
2. Apply VDD = +25V (Limit to 320mA)
3. Adjust VGG more positive until IDQ reaches 120mA
Note: VG1 ~ -2.6V, Do not exceed 0.0V
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -5.0V
3. Adjust VDD to 0V
4. Adjust VGG to 0V

Part Number

 N/A XR-C9R5-0304D
