XM-C9J3-0404D
XR-C9J3-0404D ROHS

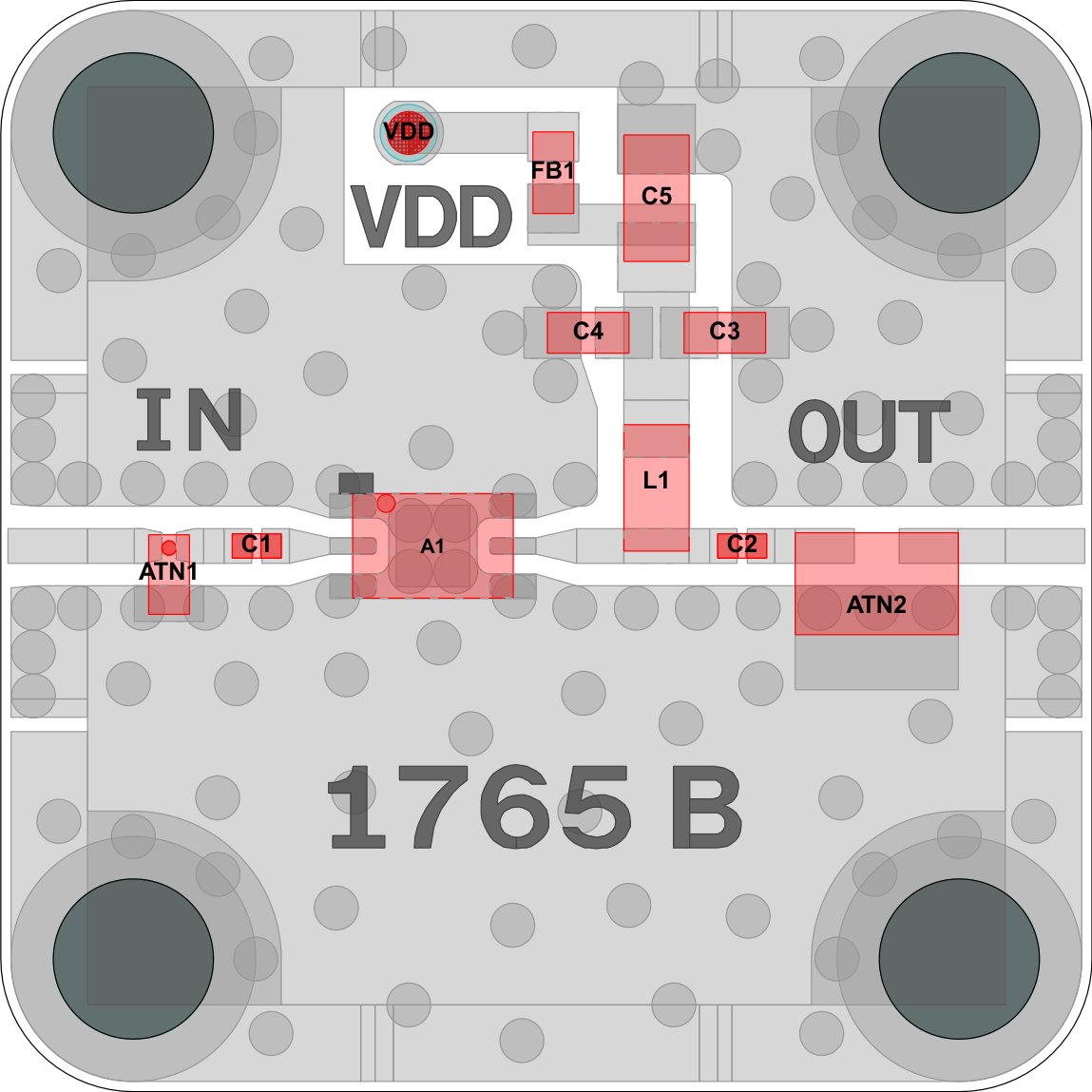

Amplifier, AM1064-2 [PCB: 1765]

Product Page

 N/A Atlanta Micro

Spec Sheet

 N/A AM1064-2

Low Freq

 N/A 50 MHz

High Freq

 N/A 8000 MHz

Gain

 N/A 20 dB

NF

 N/A 2 dB

P1dB

 N/A 18 dBm

IP3

 N/A 32 dBm

Voltage

 N/A 5 V

Current

 N/A 73 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VDD = +5.0V
Verify IDD ~73mA
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Turn off VDD

Part Number

 N/A XR-C9J3-0404D
