XM-C9G9-0304D
XR-C9G9-0304D ROHS

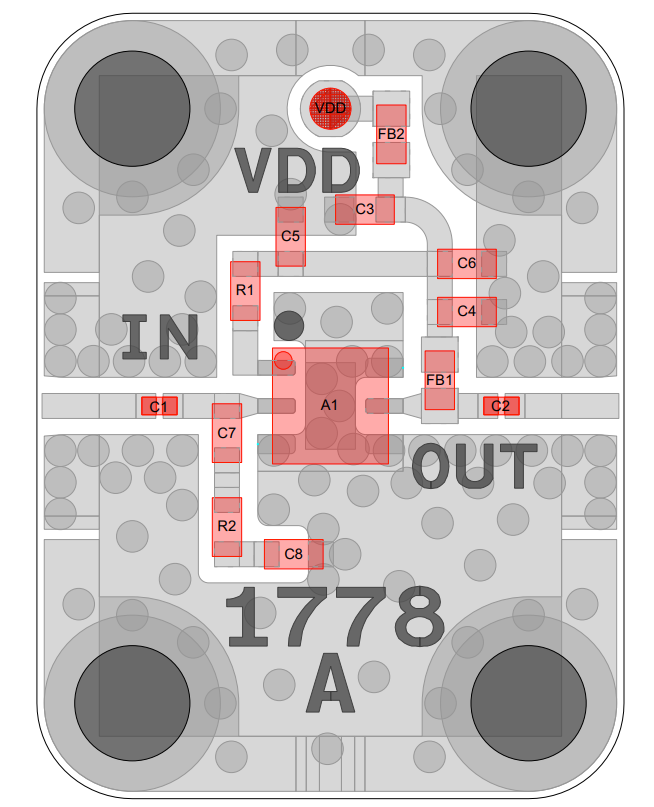

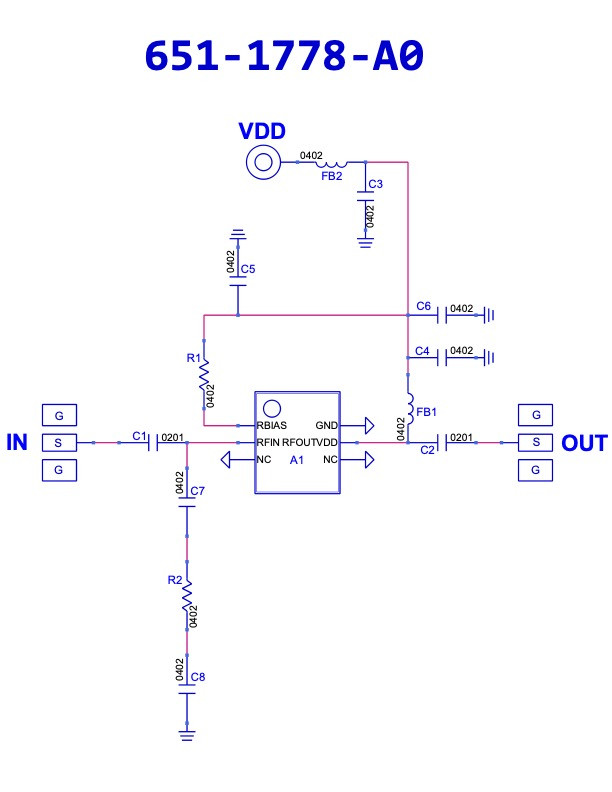

Amplifier, HMC8411LP2FE [PCB: 3080]
Product Page |
N/A ADI |
Spec Sheet |
N/A HMC8411LP2FE |
Low Freq |
N/A 10 MHz |
High Freq |
N/A 10000 MHz |
Gain |
N/A 15.5 dB |
NF |
N/A 1.8 dB |
P1dB |
N/A 20 dBm |
IP3 |
N/A 34 dBm |
Voltage |
N/A 3.3 V |
Current |
N/A 55 mA |
ALL_ASSET |
N/A 1367P |
|
N/A |
Part Number |
N/A XR-C9G9-0304D |
