XM-C9G2-0409C-01
XR-C9G2-0409C-01 ROHS

Amplifier, QPA2213 [PCB: 1845]

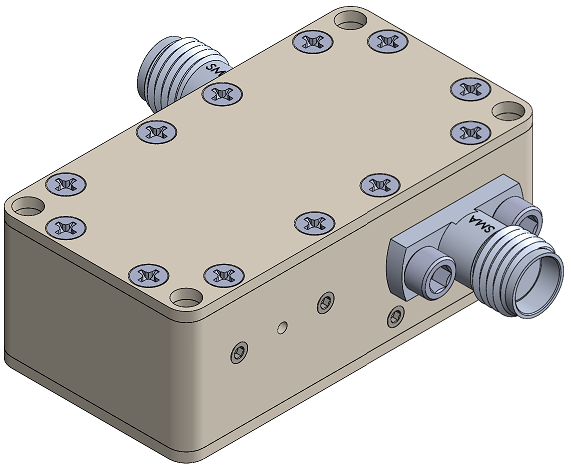

Connectorized Housing
Included Bias Controller: XM-C9G1-0405D

Product Page

 N/A Qorvo

Spec Sheet

 N/A QPA2213

Low Freq

 N/A 2000 MHz

High Freq

 N/A 20000 MHz

Gain

 N/A 25 dB

NF

 N/A 4 dB

Voltage

 N/A 18 V

Current

 N/A 330 mA

Connector Series

 N/A SuperSMA

Bias Instruction

 N/A

Power-up Sequence
1. Apply +VIN = +18.1V fixed
2. Apply -VIN = -5V to -10V
2. Apply RF Input

Power-down Sequence
1. Remove RF Input
2. Adjust +VIN to 0V
3. Adjust -VIN to 0V

Part Number

 N/A XR-C9G2-0409C-01
