XM-C9G2-0404D
XR-C9G2-0404D ROHS

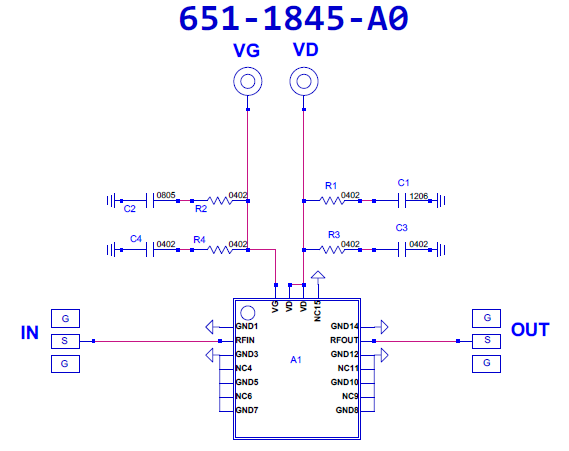

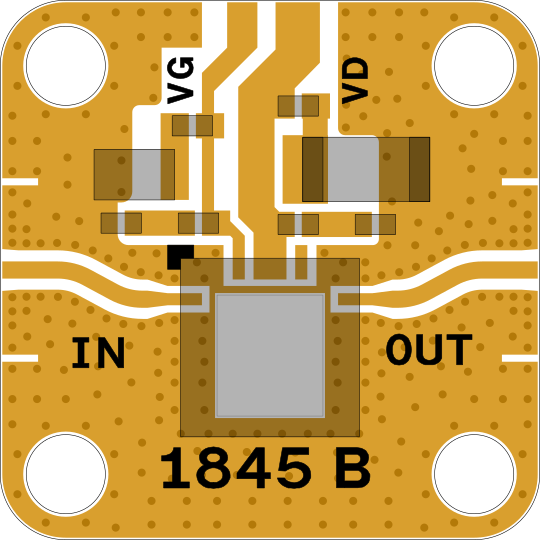

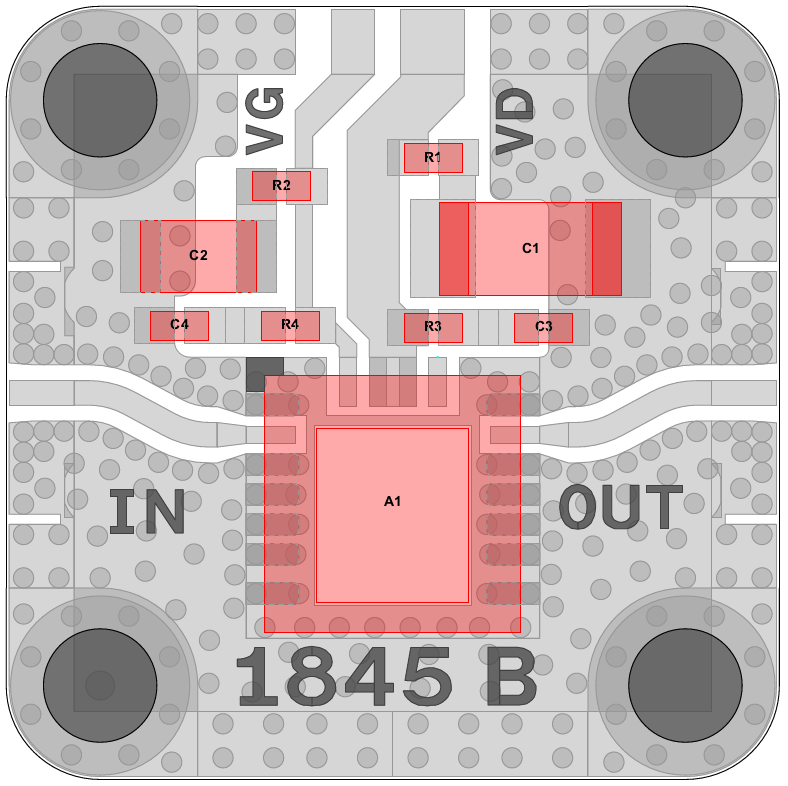

Amplifier, QPA2213 [PCB: 1845]
Recommended Bias Controller: XM-C9G1-0405D-SP

Product Page

 N/A Qorvo

Spec Sheet

 N/A QPA2213

Low Freq

 N/A 2000 MHz

High Freq

 N/A 20000 MHz

Gain

 N/A 25 dB

NF

 N/A 4 dB

Voltage

 N/A 18 V

Current

 N/A 330 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VG = -4V
2. Apply VDD = +18V
3. Adjust VG more positive until IDQ reaches 330mA
Note: Do not exceed 0.0V
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VG to -4V
3. Adjust VDD to 0V
4. Adjust VG to 0V

Part Number

 N/A XR-C9G2-0404D
