XM-C9F6-0404D
XR-C9F6-0404D ROHS

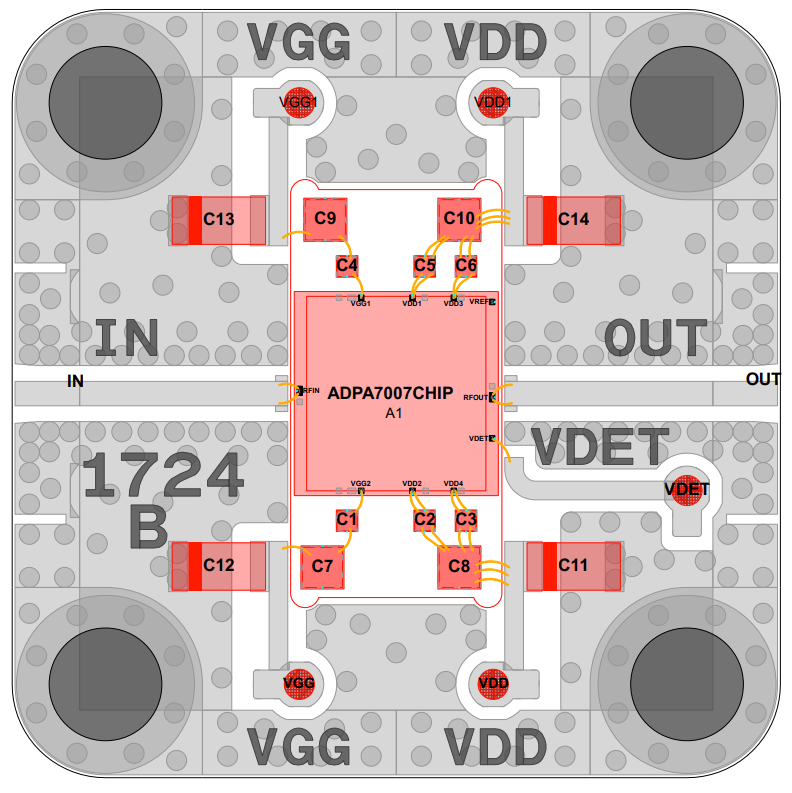

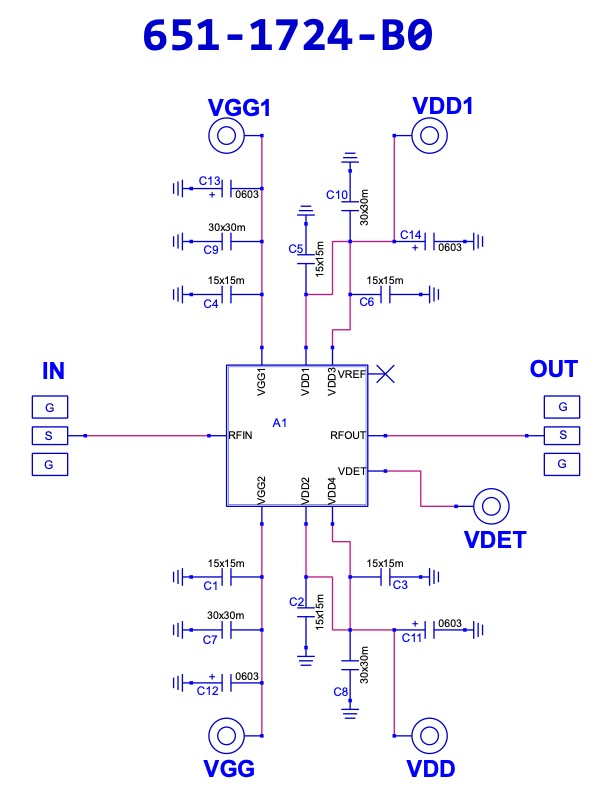

Amplifier, ADPA7007CHIP [PCB: 1724]
Recommended Bias Controller: XM-D3B2-0404D-SP

Configurations

Product Page

 N/A ADI

Spec Sheet

 N/A ADPA7007CHIP

Low Freq

 N/A 18000 MHz

High Freq

 N/A 44000 MHz

Gain

 N/A 21.5 dB

NF

 N/A 6.5 dB

P1dB

 N/A 31 dBm

IP3

 N/A 41 dBm

Voltage

 N/A 5 V

Current

 N/A 1400 mA

N/A

Bias Instruction

 N/A

Power-up Sequence
1. Apply VGG = -1.5V
2. Apply VDD = +5V
3. Adjust VGG more positive until IDQ reaches 1400mA
Note: VG1 ~ -0.56V, Do not exceed 0.0V
4. Apply the RF input signal



Power-down Sequence
1. Turn off the RF input signal
2. Adjust VGG to -1.5V
3. Adjust VDD to 0V
4. Adjust VGG to 0V

Part Number

 N/A XR-C9F6-0404D
